FEHLMANN PICOMAX 95 + EROWA

Photo Gallery

FEHLMANN - PICOMAX 95 + EROWANL-MIL-FEH-2006-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

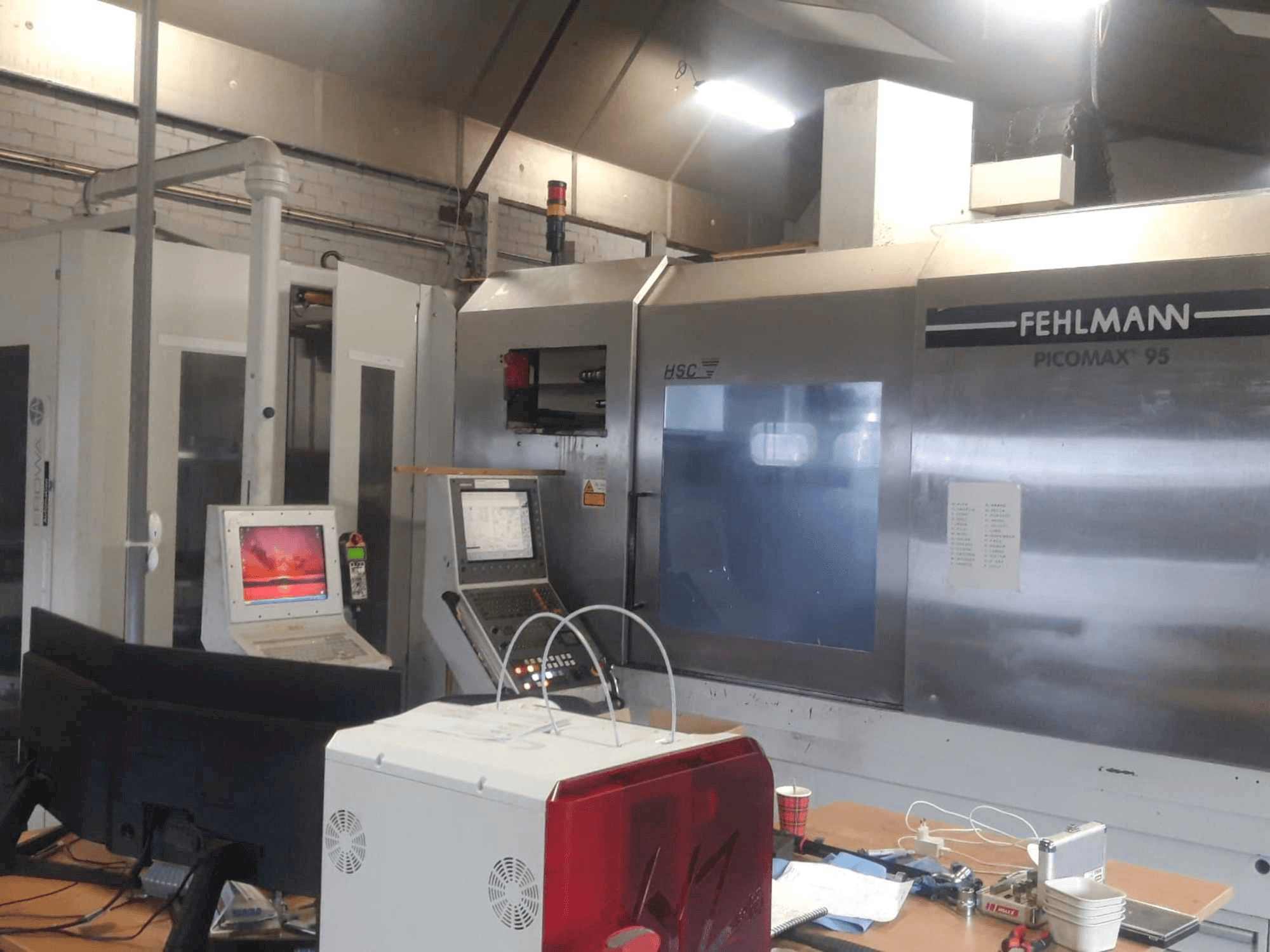

FEHLMANN PICOMAX 95 + EROWA Vertical Machining center

Show in original language

This FEHLMANN PICOMAX 95 + EROWA Vertical Machining Center was manufactured in the year 2006 in Switzerland. It is equipped with a HEIDENHAIN iTNC control unit and has 5 axis. The machine has a spindle speed of 50-14000 rpm.

Overview

brand: FEHLMANN
year: 2006
MODEL: PICOMAX 95 + EROWA
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - FEHLMANN PICOMAX 95 + EROWA

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC

Dimensions

Machine Depth: 2200 mm
Machine Height: 3100 mm
Machine Weight: 9100 kg
Table Length: 1600 mm
Table Width: 550 mm

Movement

B-axis Max: 120°
B-axis Min: -10°
Number of Axes: 5
X-axis Travel: 800 mm
Y-axis Travel: 500 mm
Z-axis Travel: 610 mm

Technical Specification

Spindle Speed: 14000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

3d measuring probe: reinnishaw omp
Zero-pump clamping system for pallets diameter 210 mm, blum tool

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
