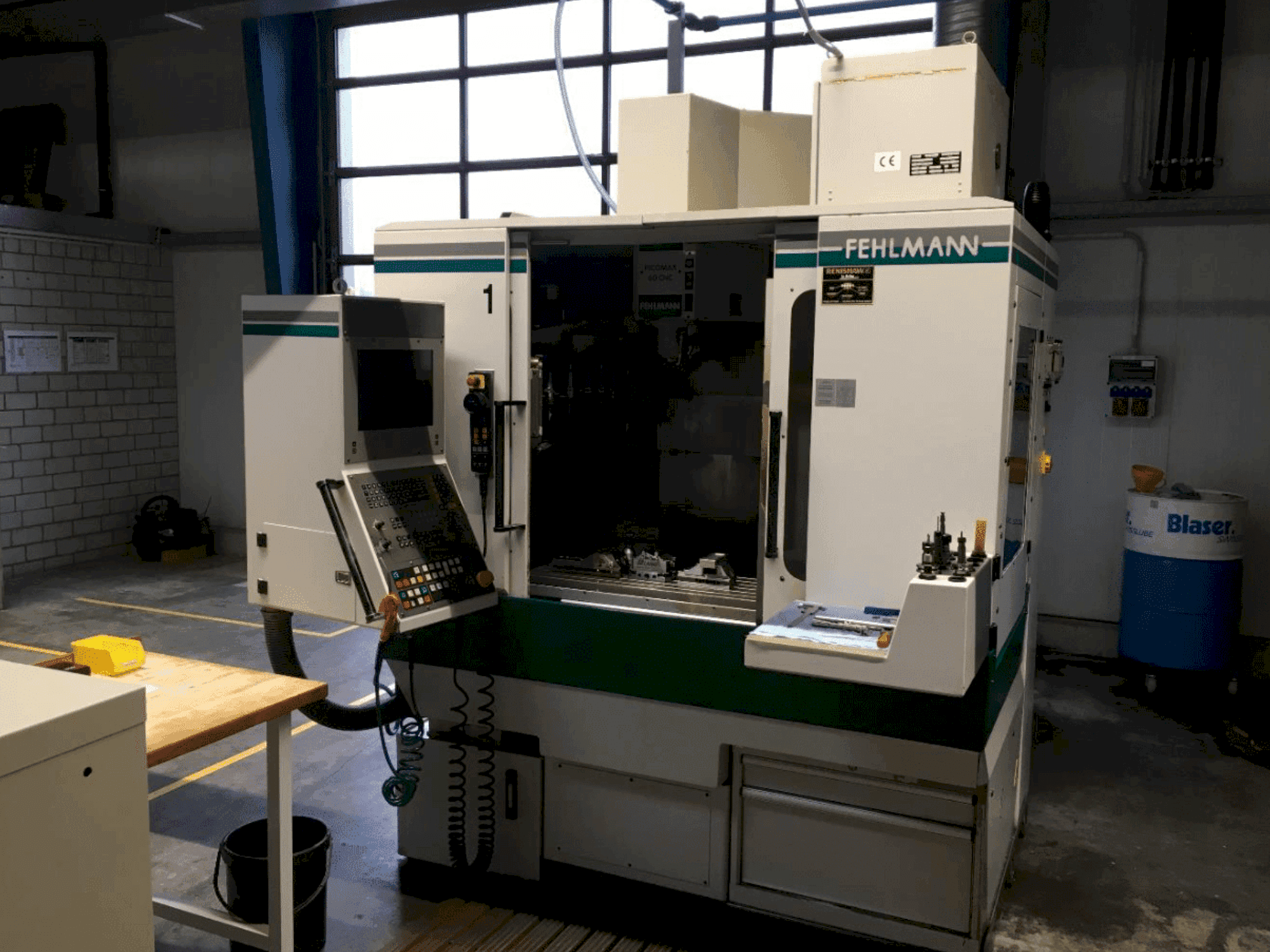

Front view of FEHLMANN Picomax 60 machine
Front view of FEHLMANN Picomax 60 machine

FEHLMANN - Picomax 60DE-MIL-FEH-2000-00001

Rs. 1,658,378
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis FEHLMANN Picomax 60 vertical machining centre was manufactured in 2000. It features a drilling capacity in steel up to 25 mm, thread cutting up to M 24, and a milling capacity of 100 cm3/min. The spindle offers variable speeds from 50 to 18000 rpm. It supports a maximum workpiece weight of 250 kg on its 920 mm x 380 mm table. Ideal for precision machining, the FEHLMANN Picomax 60 machine we have for sale. Contact us for further details.

Overview

  • brand: FEHLMANN
  • year: 2000
  • MODEL: Picomax 60
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre

Technical Information - FEHLMANN Picomax 60

Dimensions

  • Machine Depth: 2200 mm
  • Machine Height: 3000 mm
  • Machine Weight: 3200 kg
  • Table Length: 920 mm
  • Table Width: 380 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 500 mm
  • Y-axis Travel: 350 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Spindle Power: 6.3 kW
  • Spindle Speed: 18 RPM
  • Taper Size: SK 30
  • Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

  • High spindle speed range of 50 - 18,000 rpm
  • Comprehensive feed rates for x, y, and z axes (1 - 20,000 mm/min)
  • Direct measuring system for x and y axes
  • Drilling capacity in steel: 25 mm
  • Thread cutting in steel: m 24
  • Milling capacity: 100 cm³/min
  • Connection: 50 hz 3x 400 volt
  • Total power requirement: 20 kw

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
