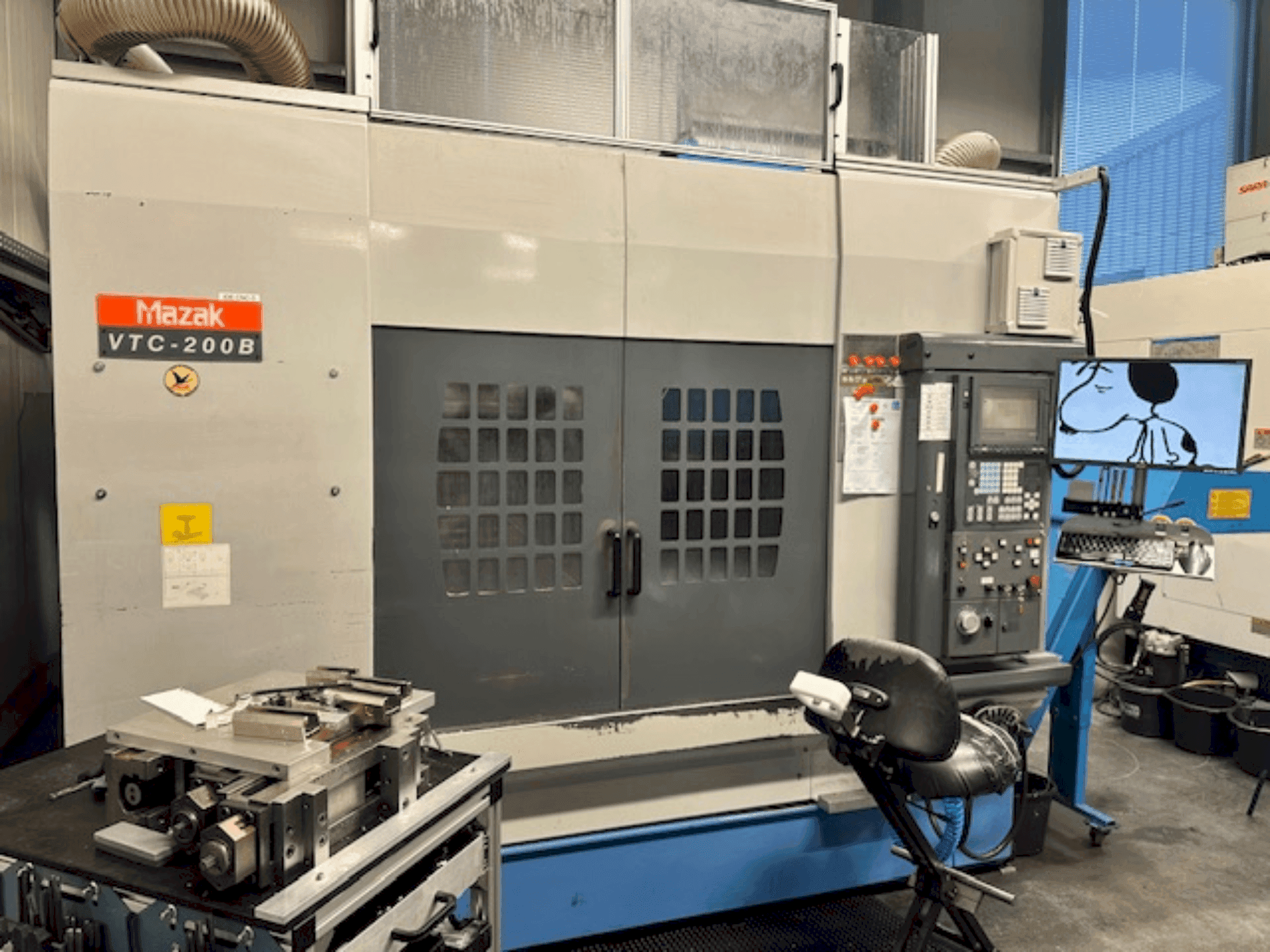

This 3-axis Mazak VTC-200B was manufactured in 2000 and features a rapid traverse of 36 m/min and both internal and external cooling systems. In 2019, it received a new spindle motor and spindle, along with recirculating ball screws in the X and Y axes. Consider the opportunity to buy this Mazak VTV-200B vertical machining centre. Contact us for more information.
Overview
- brand: Mazak
- year: 2000
- MODEL: VTC-200B
- production hours: 10974
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak VTC-200B
Control Unit
- Control Brand: MAZATROL
- Control Model: Fusion 640 M
Dimensions
- Machine Weight: 6100 kg
- Table Length: 1460 mm
- Table Load: 800 kg
- Table Width: 510 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1120 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 7.5 kW
- Spindle Speed: 10000 RPM
- Through-spindle Coolant: Yes
Additional Information
- Distance Table Surface to Spindle Nose: 180-690 mm
- Spindle Taper: SK 40 CAT
- Max Tool Diameter: 80 mm (110 mm with free adjacent pockets)
- Max Tool Length: 350 mm
- Accessories/Features: EIA/ISO programming, Automatic tool length measurement system, Synchronous tapping, 3 free M functions, 1 complete set of manuals
- Working Hours (Servo X-Axis): 76,203 hours
- Working Hours (Spindle): 75,952 hours
Additional equipment
chip conveyor is included
Machine Benefits
Qualitative Machine Benefits
2019: new spindle motor and spindle, recirculating ball screws in x and y axes
2024: new recirculating ball screw in x axis due to a material defect.
Technical Machine Benefits
Rapid traverse: 30 m/min
Workpiece: Automatic Tool Changer (ATC), Capacity: 24 positions
Tools: coolant pump: 5-bar
Tools: internal and external cooling
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
