Feeler QM-22A

Photo Gallery

Feeler - QM-22ATR-MIL-FEE-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

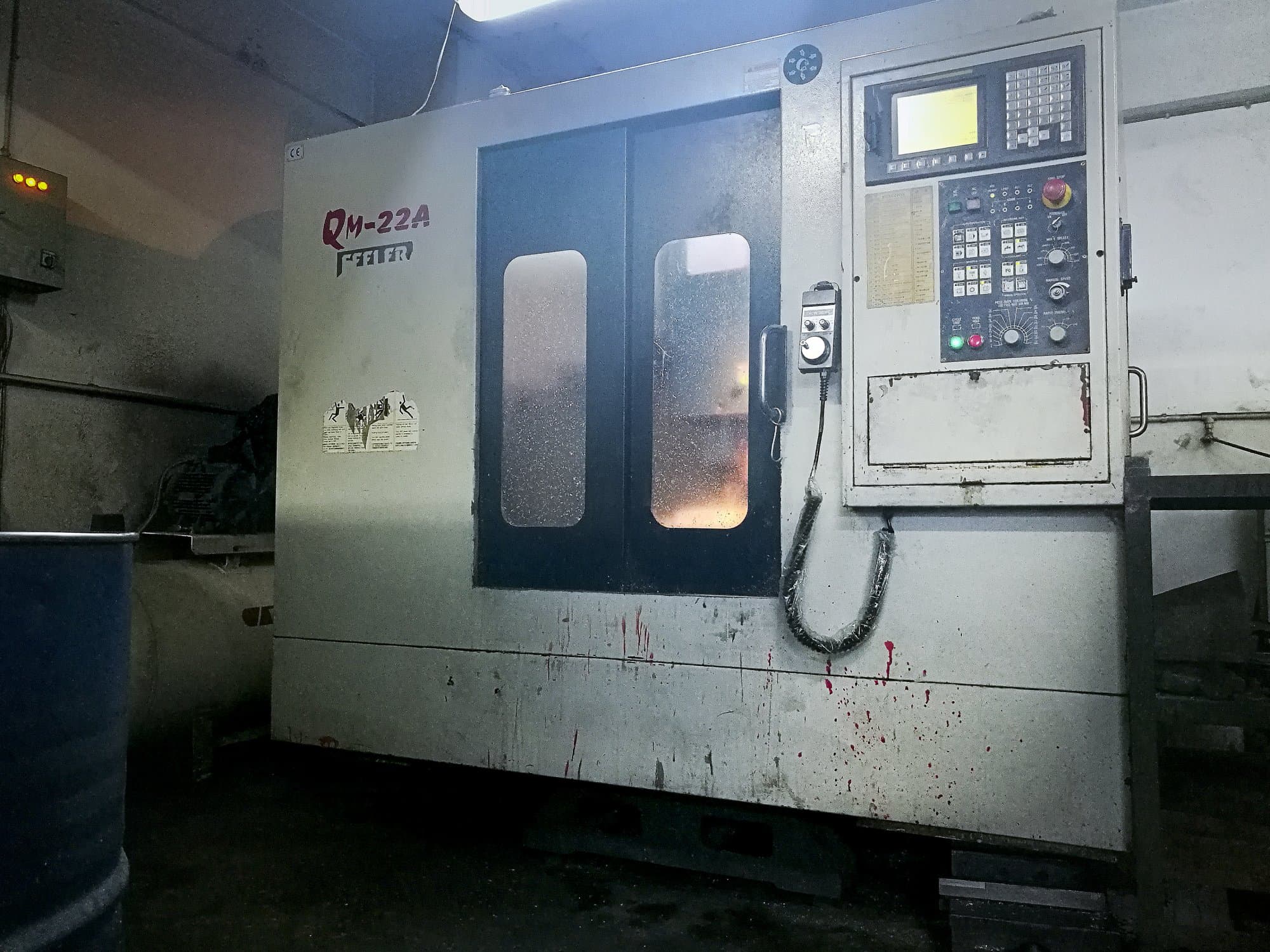

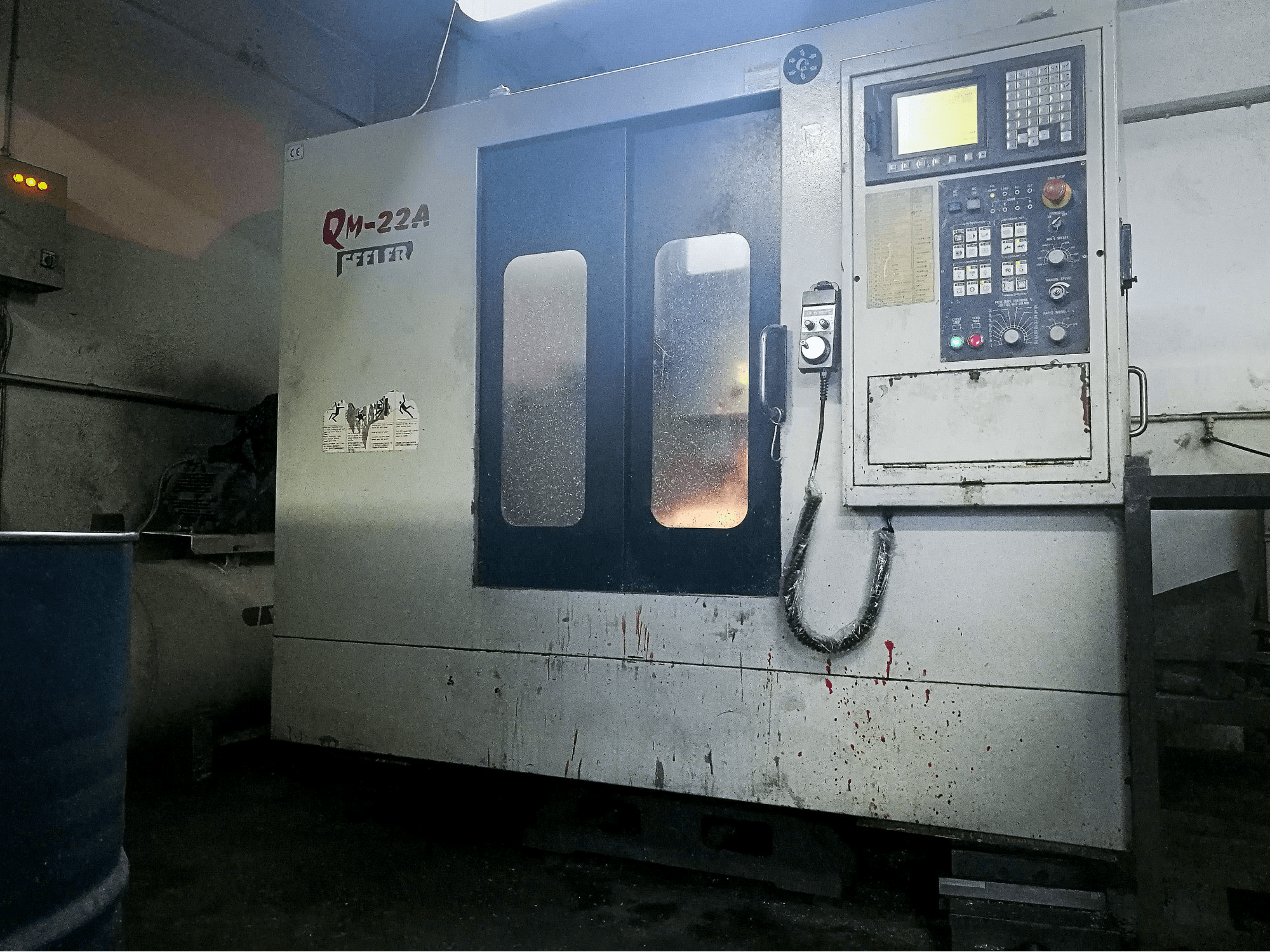

Feeler QM-22A Machining Center

Show in original language

This Feeler QM-22A Machining Center from 2006 is operated through a FANUC 0i-MC Control unit and comes with a spacious table of 1100 x 600 millimeters (L x W). The equipment stands out for its 20x tool changer, which allows a quicker operation and a reduction of non-productive time, as well as for its high spindle speed (measurable in 10000 rounds per minute).

Overview

brand: Feeler
year: 2006
MODEL: QM-22A
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Feeler QM-22A

Control Unit

Control Brand: FANUC
Control Model: 0i-MC

Dimensions

Machine Depth: 3875 mm
Machine Height: 3140 mm
Machine Weight: 3000 kg
Table Length: 1100 mm
Table Width: 600 mm

Movement

X-axis Travel: 1020 mm
Y-axis Travel: 600 mm
Z-axis Travel: 550 mm

Technical Specification

Max. Tool Weight: 7 kg
Number of Tools: 20
Spindle Power: 11 kW
Spindle Speed: 10000 RPM

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
