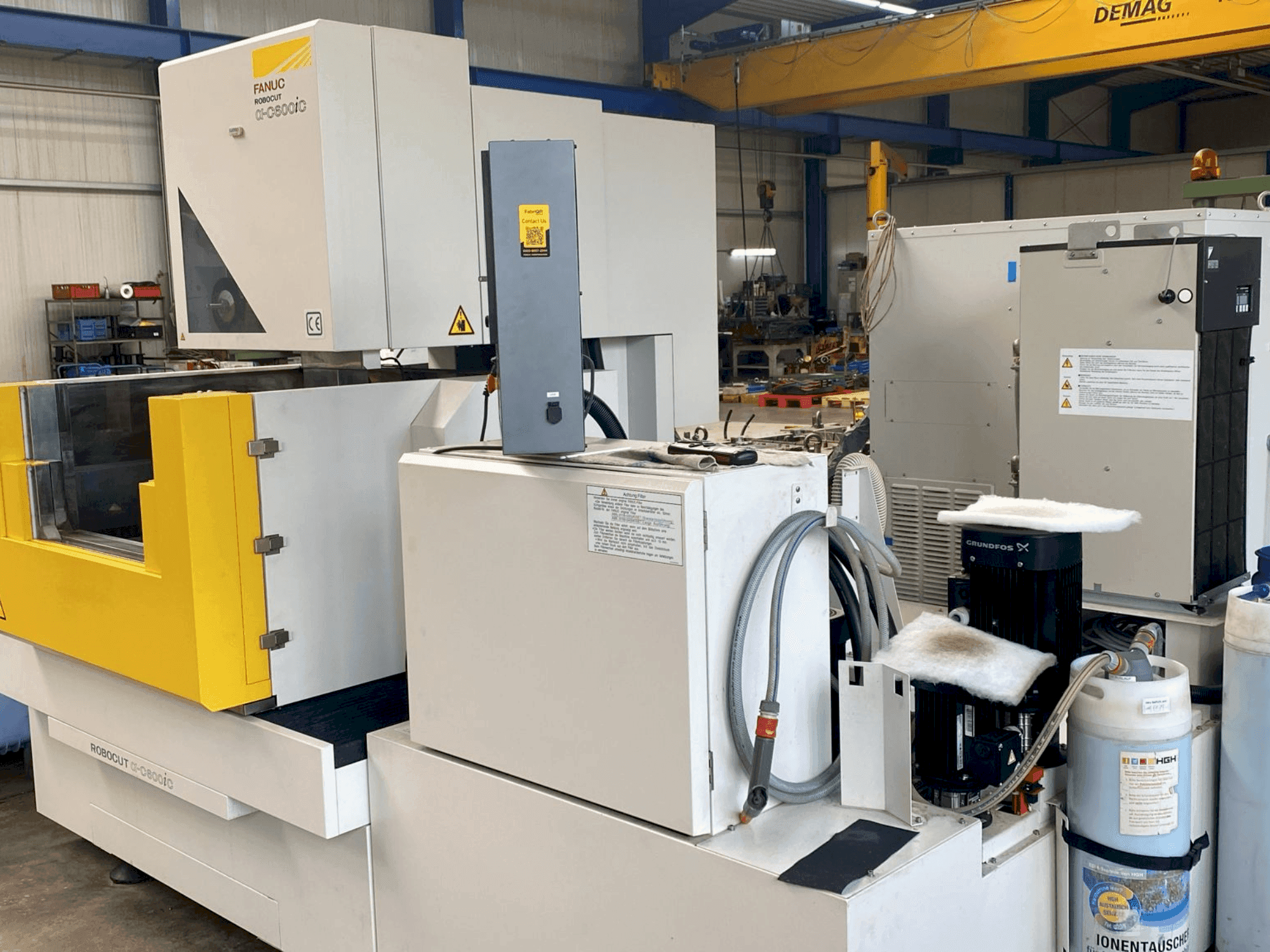

Front view of FANUC Robocut a-C600iC - Z400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robocut a-C600iC - Z400

Photo Gallery

FANUC - Robocut a-C600iC - Z400DE-EDM-FAN-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FANUC Robocut a-C600iC - Z400 | Eroder For sale

Show in original language

This 5-axis FANUC Robocut a-C600iC - Z400 was manufactured in 2021, a high-precision erosion machine. It features a stroke range of X: 600mm, Y: 400mm, Z: 410mm, and can handle a workpiece mass up to 1000kg. The machine's maximum workpiece dimensions are 1050x820x300 mm, and it offers a max taper angle of ±30º/150mm. Ideal for complex machining tasks, the FANUC 31i-WB controller ensures top-notch control. Reach out for more information about this erosion machine.

Overview

brand: FANUC
year: 2021
MODEL: Robocut a-C600iC - Z400
production hours: 2280
application type: EDM
Location: Germany
machine type: Wire EDM Machine
control unit brand: FANUC

Technical Information - FANUC Robocut a-C600iC - Z400

General Data

Machine weight: 3300 kg

Control Unit

Model: 31i-WB
Brand: FANUC

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 410 mm
V-Axis Movement: 200 mm
U-Axis Movement: 200 mm

Workpiece

Workpiece x: 1050 mm
Workpiece y: 820 mm
Workpiece z: 300 mm
Workpiece weight: 1000 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Max taper angle: ±30º/150mm
Minimum step increment of the drives: 0. 0001 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
