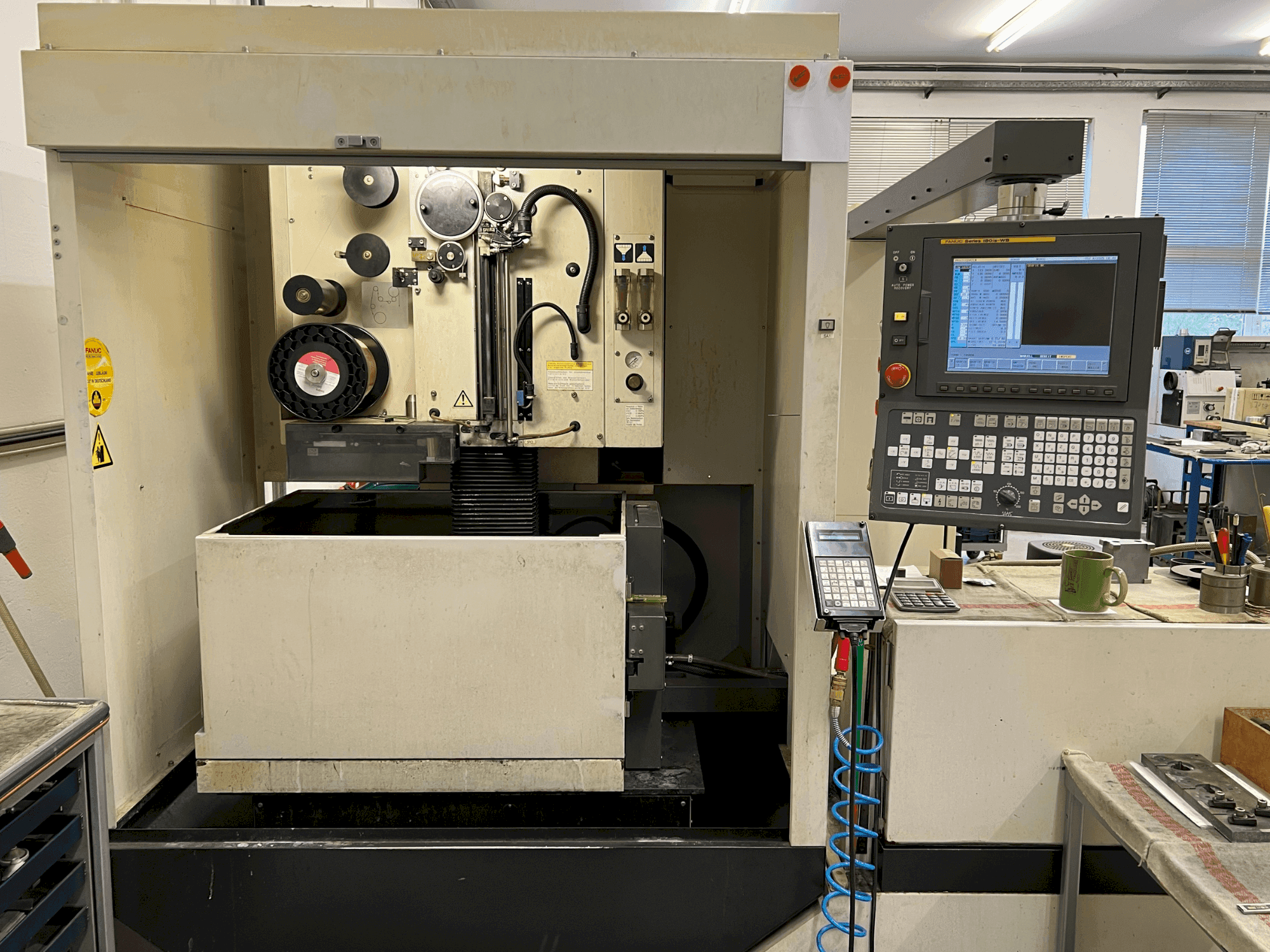

Front view of FANUC Alpha-0iC machine
Front view of FANUC Alpha-0iC machine

FANUC - Alpha-0iCDE-EDM-FAN-2007-00001

Rs. 2,086,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis FANUC Alpha-0iC wire EDM machine was manufactured in 2007. It features a robust design with a maximum workpiece weight of 500 kg and a machine mass of 1.2 tons. It offers X, Y, U, V, and Z-axis strokes of 320 mm, 220 mm, 120 mm, 120 mm, and 255 mm respectively, all with high rapid traverse rates. Consider the opportunity to buy this FANUC Alpha-0iC wire EDM machine. Contact us for more information.

Overview

  • brand: FANUC
  • year: 2007
  • MODEL: Alpha-0iC
  • application type: EDM
  • Location: Germany
  • machine type: Wire EDM Machine
  • control unit brand: FANUC

Technical Information - FANUC Alpha-0iC

General Data

  • Machine weight: 1200 kg

Control Unit

  • Brand: FANUC
  • Model: 180is-WB

Main drive

  • Number of axis: 5

Movement

  • X-AXIS Movement: 320 mm
  • X-AXIS Rapid traverse: 900 mm/min
  • Y-AXIS Movement: 220 mm
  • Y-AXIS Rapid traverse: 900 mm/min
  • Z-AXIS Movement: 255 mm
  • Z-AXIS Rapid traverse: 900 mm/min
  • V-Axis Movement: 120 mm
  • V-Axis Rapid traverse: 450 mm/min
  • U-Axis Movement: 120 mm
  • U-Axis Rapid traverse: 450 mm/min

Workpiece

  • Workpiece weight: 500 kg

Media

  • Power consumption: 13 KVA

Additional Information

Extra information

  • Power Supply: 200 V (+10%−10%), 3-Phase 50/60 Hz ±1 Hz; 220 V (+10%−10%), 3-Phase 60 Hz ±1 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
