- ➤ Used ENGEL ES 500/110 HL - Injection Moulding Machine

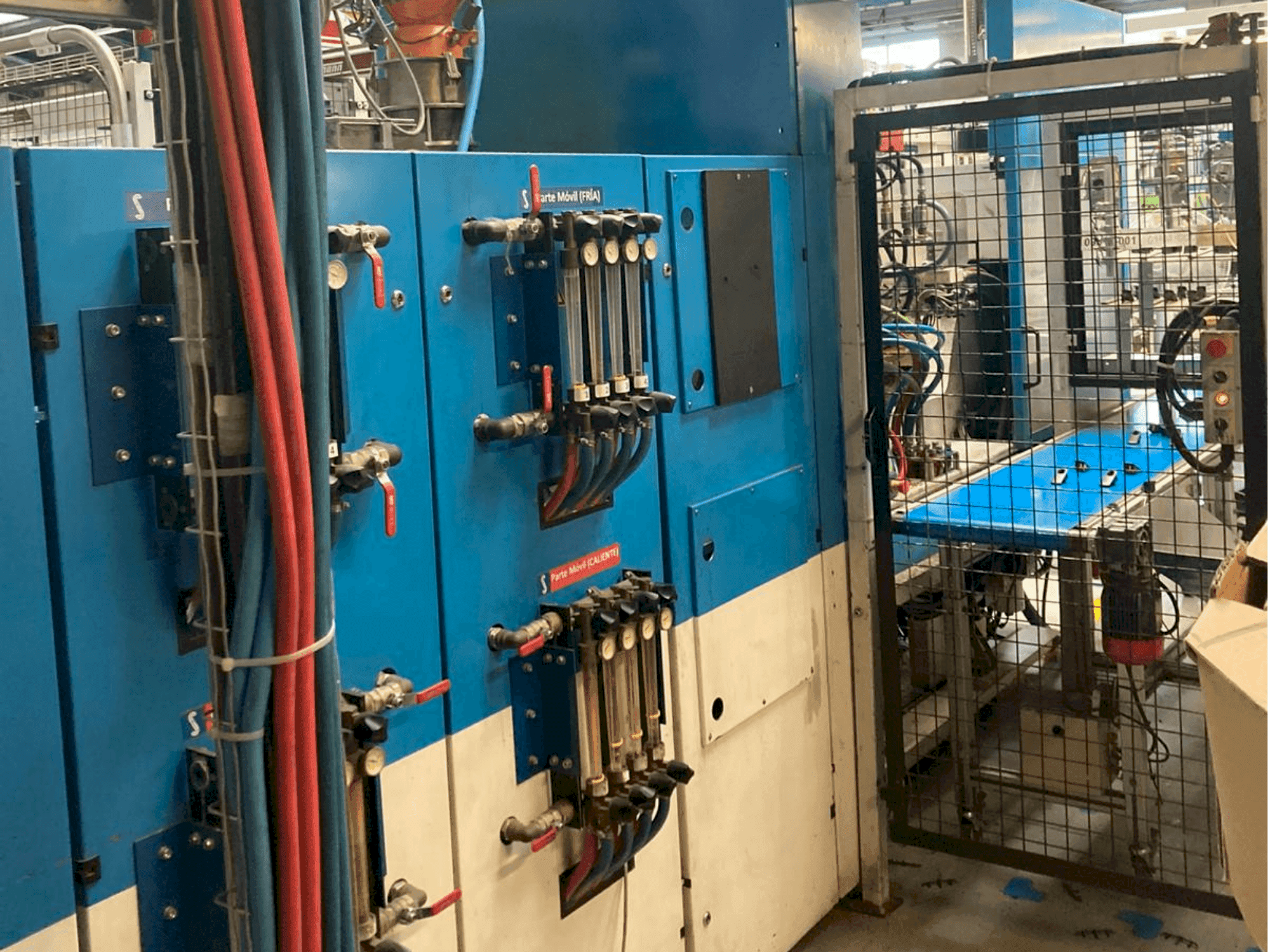

This ENGEL ES 500/110 HL Injection moulding machine was manufactured in the year 2002 in Austria. The machine has a clamping force of 1100 kN and screw diameter 40mm. Production hours are at 94904.
Overview
- brand: Engel
- year: 2002
- MODEL: ES 500/110 HL
- production hours: 93904
- application type: Injection Moulding
- Location: Spain
- machine type: Injection Moulding Machine
- availability: Immediately
Technical Information - Engel ES 500/110 HL
General Data
- Measurements width: 4800 MM
- Measurements depth: 1420 MM
- Measurements height: 2000 MM
- Machine weight: 6400 KG
Injection Unit
- Screw diameter: 40 mm
- Stroke volume: 251 cm3 CM³
- Injection pressure: 1300 bar
- Screw speed: 20-400 r/min
- Heating capacity: 9.2 kW
- Adjustable heating zones: 4
- Nozzle pressure: 50 kN
Clamping unit
- Clamping force: 1100 kN
- Opening stroke: 500 mm
- Distance between bars: 750 mm
- Mould height min: 250 mm
Additional equipment
- - Linear robot
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
