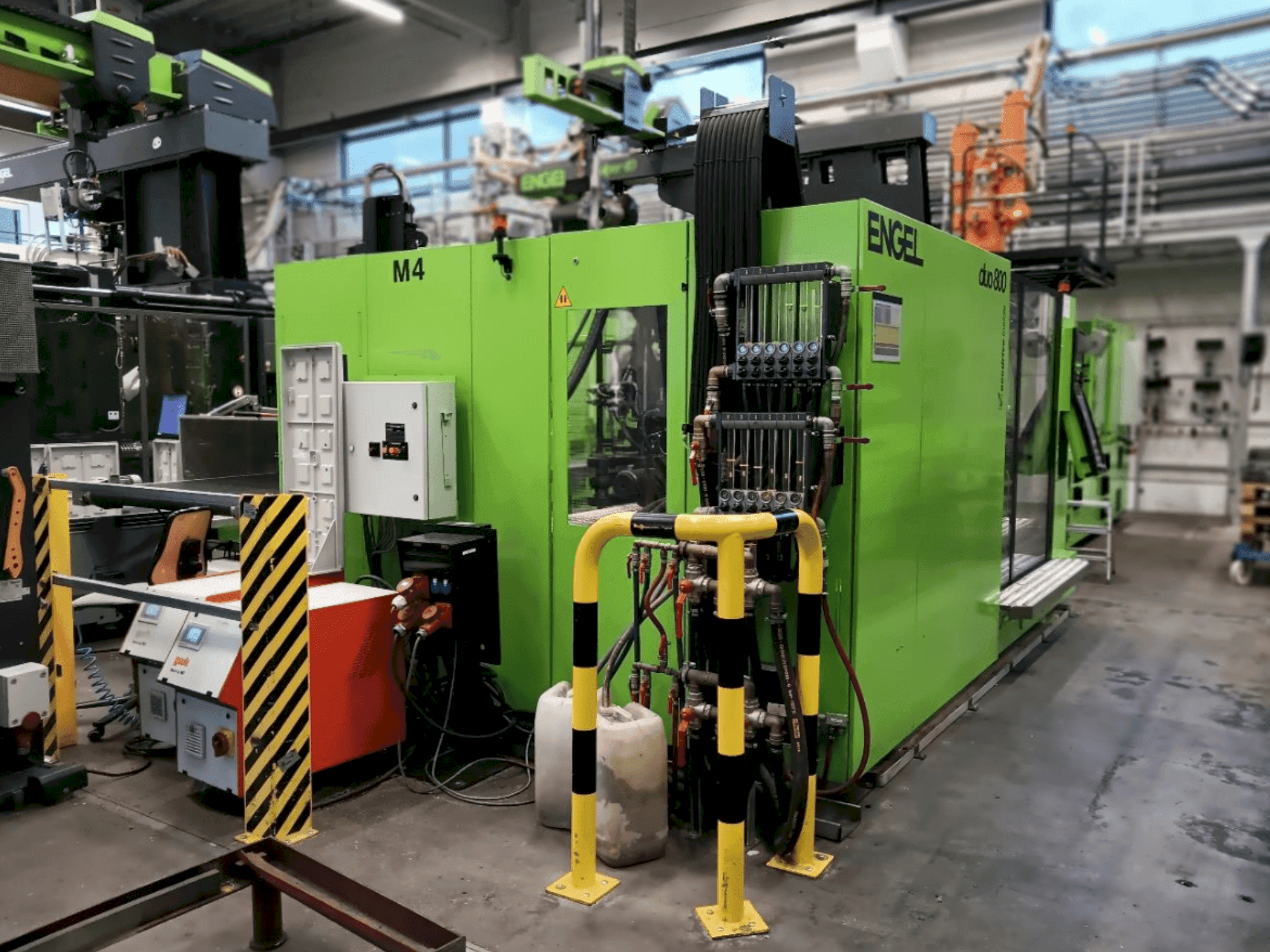

Left view of Engel Duo 11050/800 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel Duo 11050/800

Photo Gallery

Engel - Duo 11050/800DE-INJ-ENG-2014-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel Duo 11050/800 For Sale | gindumac.com

Show in original language

This Engel Duo 11050/800 hydraulic injection moulding machine was manufactured in 2014. Consider the opportunity to buy this Engel Duo 11050/800 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Engel
year: 2014
MODEL: Duo 11050/800
production hours: 59121
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel Duo 11050/800

Injection Unit

Screw diameter: 135 mm
Stroke volume: 8158 ccm CM³

Clamping unit

Opening stroke: 1508
Mould height min: 500
Mould height max: 1008
Ejector stroke: 300 MM

Additional Information

Additional equipment

Robot V40
Access Platform
Temperature Control Units (2 pieces each)
Conveyor Belt
Suction and Dosing Station by Koch

Machine Benefits

Technical Machine Benefits

Number of heating zones: 16
Number of core pulls: 2+2
Centring: 350
Centring ring height max: ∞
Height of clamping or magnetic platen: ds 46 as 46
Clear width between the columns: horizontal: 1170 vertical: 1000
Distance from nozzle centre to step guard (mm): 1037. 5
Passage as: ∞
Cooling connection: 13
Number of cooling circuits: 6 6+1

Extra Information

Magnetic Chucks are defective and removed!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
