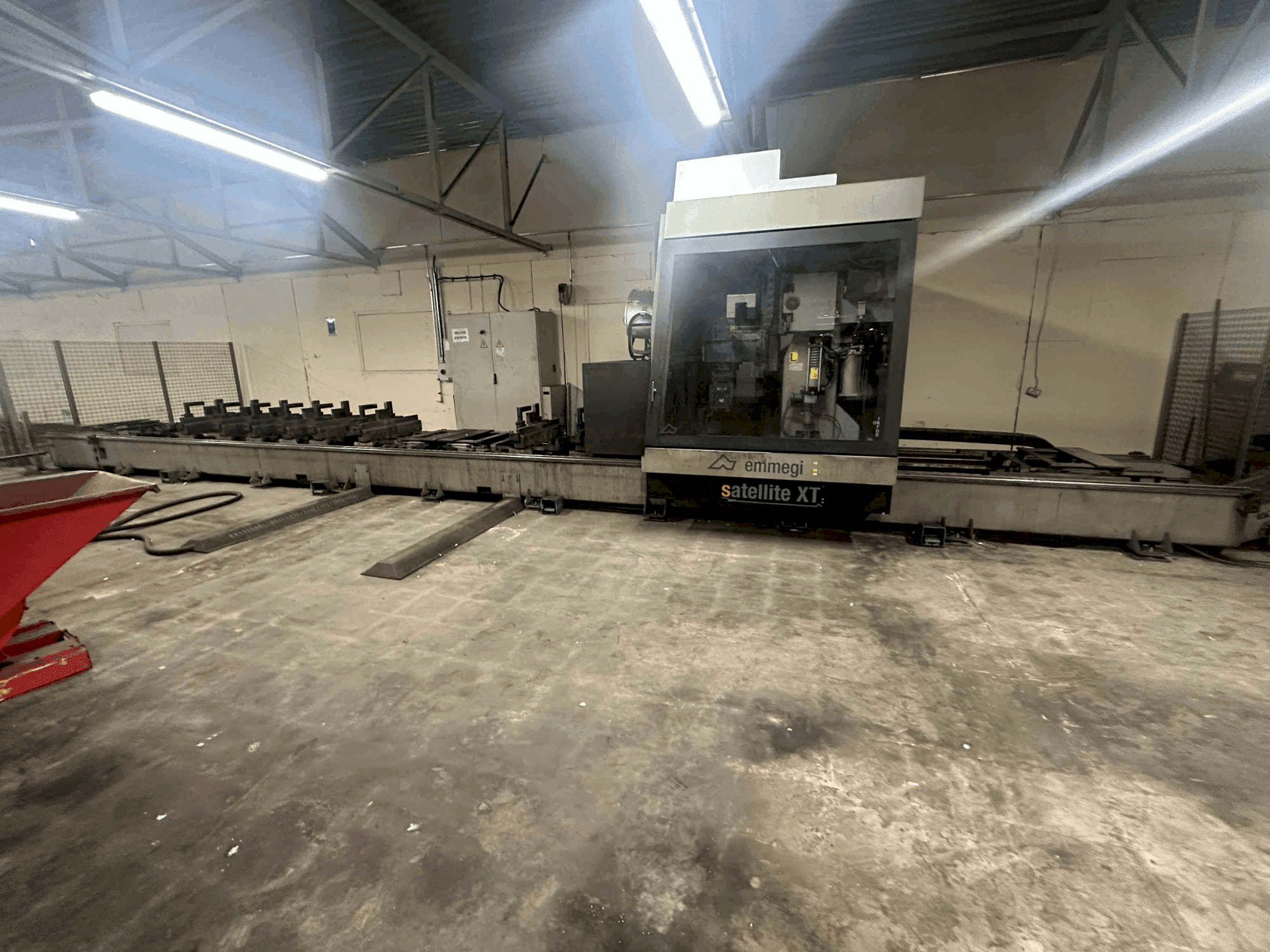

Front view of Emmegi Satellite XT10500  machine

Emmegi - Satellite XT10500IE-MIL-EMM-2014-00001

Rs. 10,026,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Emmegi Satellite XT10500 was manufactured in 2014, designed for the construction industry, specifically for producing shuttering for buildings. It features a large working area with X-Axis movement of 10500 mm and Y-Axis movement of 1100 mm. Equipped with an Emmegi Filo control unit, it supports multiple languages and offers a spindle speed range up to 24000 1/min. A great opportunity to buy this Emmegi Satellite XT10500 machining centre. Contact us for further details regarding this machining centre.

Overview

  • brand: Emmegi
  • year: 2014
  • MODEL: Satellite XT10500
  • application type: Milling
  • Location: Ireland
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: Emmegi

Technical Information - Emmegi Satellite XT10500

General Data

  • Measurements width: 14900 MM
  • Measurements depth: 4700 MM

Control Unit

  • Brand: Emmegi
  • Model: Filo

Main drive

  • Number of spindles: 1
  • Spindle speed range: 24000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 10500 mm
  • Y-AXIS Movement: 1100 mm
  • Z-AXIS Movement: 655 mm
  • AXIS 1 Movement: 0º - 90 °
  • AXIS 2 Movement: 0º - 360 °

Workpiece

  • Workpiece x: 10000 mm
  • Workpiece y: 1000 mm
  • Workpiece z: 400 mm

Table

  • Outer length: 10500 MM
  • Outer width: 1100 MM

Tools

  • Slots in storage: 16
  • Max tool diameter: 80 mm
  • Max tool length: 300 mm
  • Type of tool holder: HSK-63F

Media

  • Main electronic connection: 400 v
  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Qualitative Machine Benefits:
      • - End product: shuttering for buildings
      • - Industry: construction industry

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
