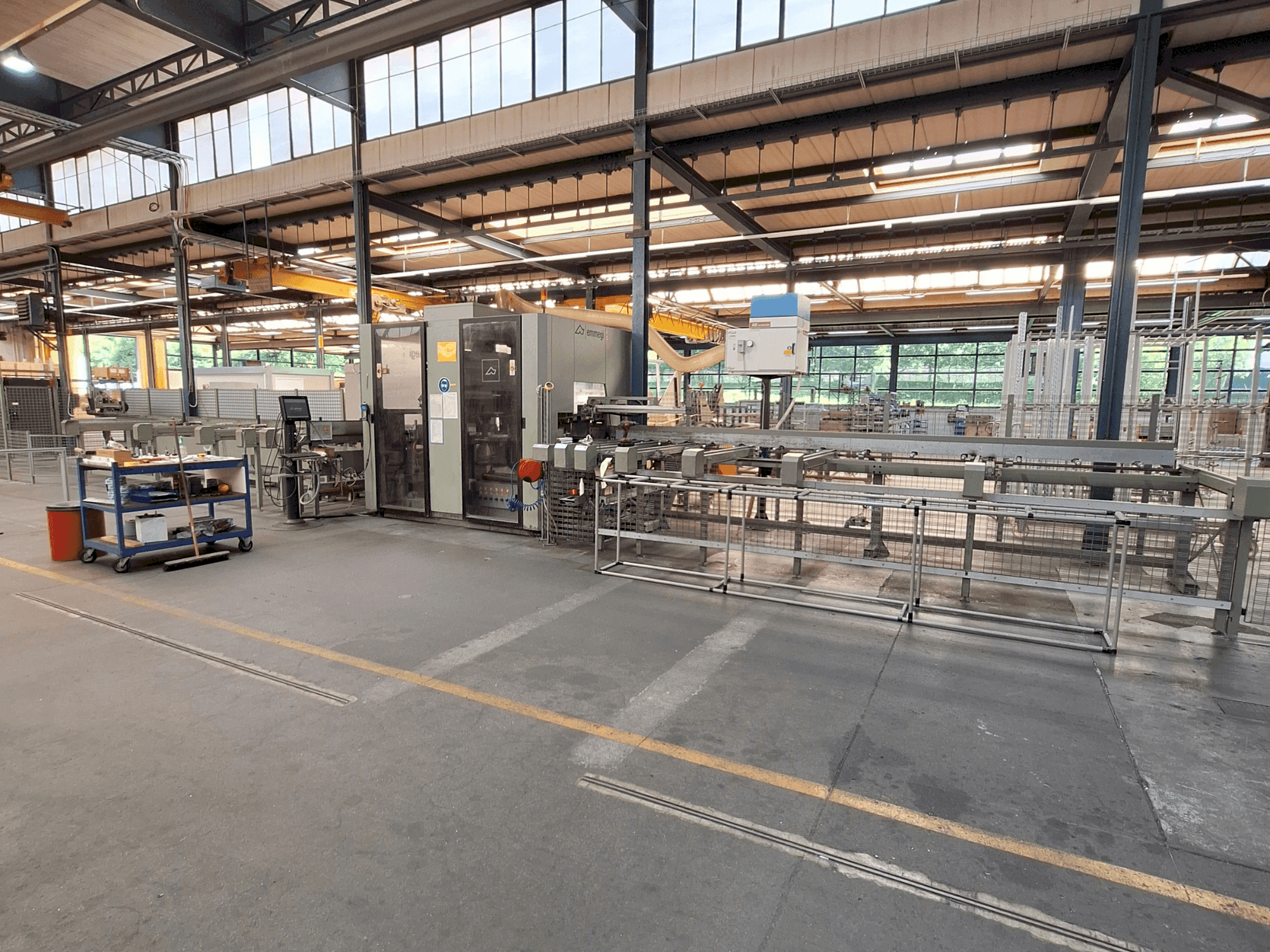

Emmegi - Quadra L1CH-MIL-EMM-2013-00001

• Milling unit with 6 air-cooled electrospindles

• Max. Power: 5. 6 kw

• Functions: milling, drilling, and cutting

• Movement Axes: 12

• X-AXIS Travel: 320 mm, Speed: 30 m/min, Acceleration: 1.5 m/sec²

• Y-AXIS Travel: 402 mm, Speed: 30 m/min, Acceleration: 5 m/sec²

• Z-AXIS Travel: 395 mm, Speed: 30 m/min, Acceleration: 5 m/sec²

• A-AXIS Rotation: 0° ÷ 360°, Speed: 6000°/min

• U-AXIS Travel: 9660 mm, Speed: 120 m/min, Acceleration: 7.5 m/sec²

• V-AXIS Travel: 138 mm, Speed: 9 m/min, Acceleration: 0.36 m/sec²

• W-AXIS Travel: 215 mm, Speed: 9 m/min, Acceleration: 0.36 m/sec²

• H-AXIS Travel: 627 mm, Speed: 24 m/min, Acceleration: 2.5 m/sec²

• P-AXIS Travel: 880 mm, Speed: 30 m/min, Acceleration: 5 m/sec²

• Q-AXIS Rotation: 298°, Speed: 6600°/min

• B-AXIS Travel: 790 mm, Speed: 60 m/min

• C-AXIS Travel: 47 mm, Speed: 9 m/min

• Operation and Control Control cabinet with cooling system

• CNC-PC with Celeron M 1.5 GHz processor 1

• 5" Touch Screen Display

• 1 GB RAM,

• 4 GB Compact Flash memory

• 1 USB port

• RJ45 network card

The maximum bar length in the loading magazine (before processing) is 7500 mm (inlet). Outlet dimension max. 7000 mm.

Additional equipment

• Pressure spraying system

• Automatic and motor-driven clamping systems

• Monoblock machine frame made of electro-welded and normalized steel
