➤ Used EMCO TURN 332 MCPlus For Sale | gindumac.com

Show in original language

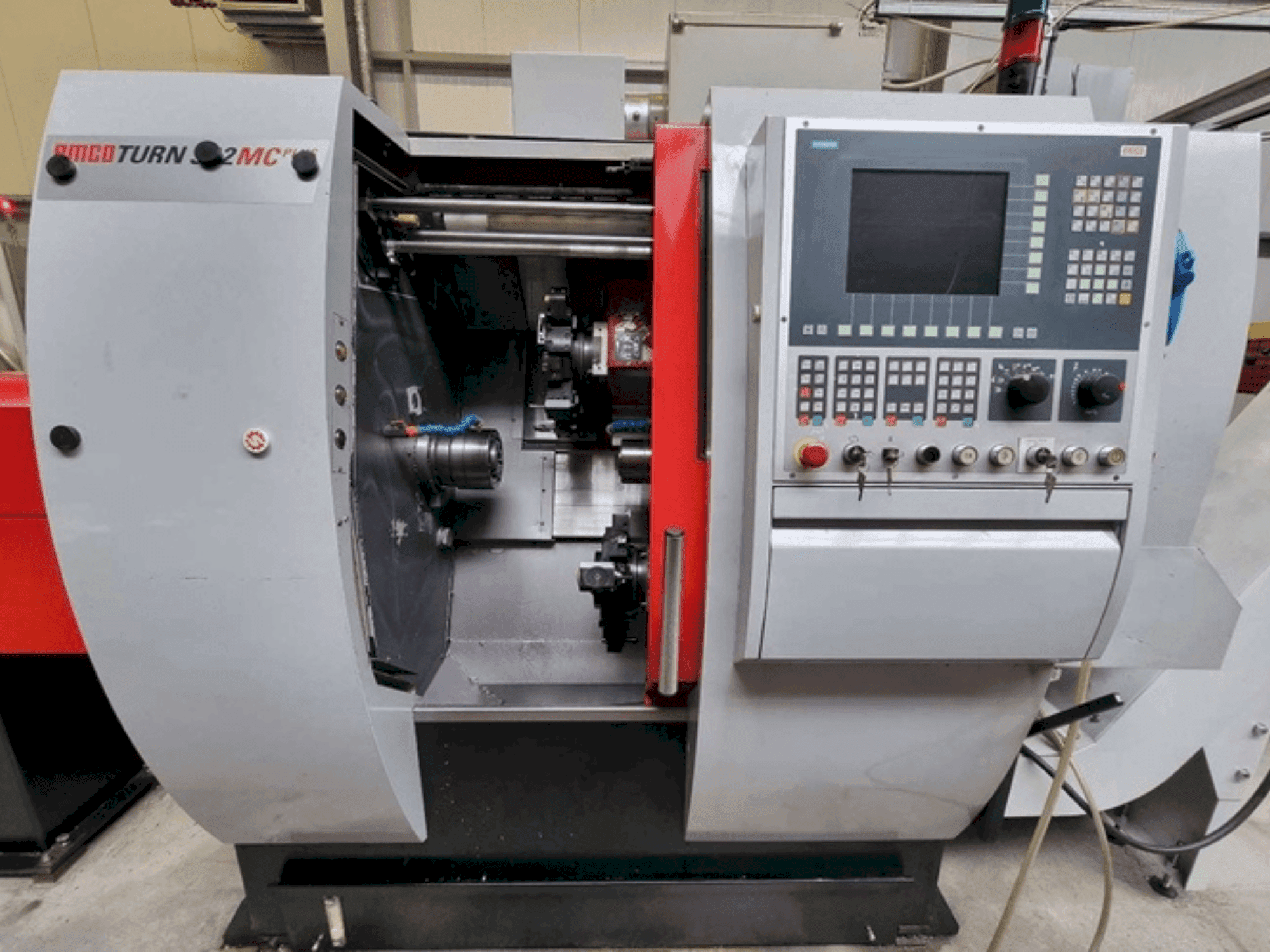

This 4-axis EMCO TURN 332 MCPlus was manufactured in 2006. It features a CNC lathe with a drive power of 10 KW, main spindle speeds up to 6300 rpm, and counter spindle speeds up to 7000 rpm. Equipped with two 12-slot tool turrets VDI 25, it supports up to 24 driven tools. The machine includes a Sinumerik 840D control, chip conveyor, and a bar feeder for bars ranging from 6-45 mm in diameter. Contact us for more information.

Overview

brand: EMCO
year: 2006
MODEL: TURN 332 MCPlus
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - EMCO TURN 332 MCPlus

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Number of spindles: 2
Spindle speed range: 6300 1/MIN
Spindle motor power: 10 KW
Number of axis: 4

Media

Chip conveyor: Yes

Additional equipment

- Emco standard bar feeder interface
- Oil mist separator
- 2 coolant pumps for spindle flushing
- 2 high-pressure coolant pumps (10 bar)
- Parts ejector with flushing through counter spindle
- Short bar feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - In 2024, the counter spindle motor was completely overhauled, and the cylinder of the 800 mm bar loader was replaced.
- - Bar diameter: 6-45 mm
- - Bar length: 100-800 mm
- - 2 x 12-slot tool turret vdi 25
- - For up to 2 x 12 driven tools
- - Provided with 15 tool holders and 15 collets

Extra information

- Headstock size 45 with spindle connection KK5 (DIN 55026) C-axis for main and counter spindle
