➤ Used EMAG VLC 250 Vertical Lathe For Sale | gindumac.com

Show in original language

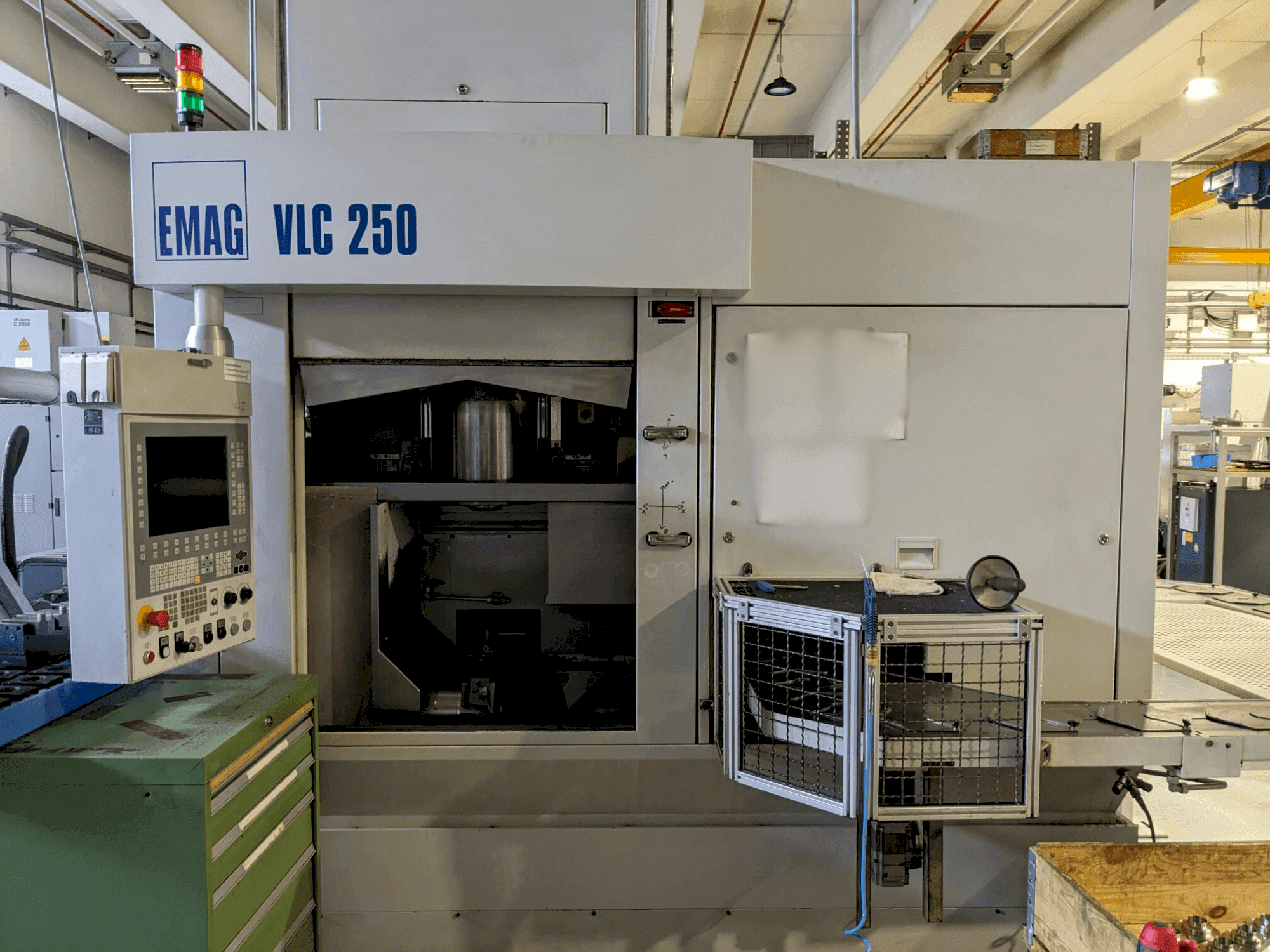

This vertical turning machine was manufactured in 2011. The EMAG VLC 250 features a Siemens Sinumerik 840Dsl control system, a 12-station tool turret, and a 3-jaw power chuck with a quick jaw change system. It includes a coolant system with a paper band filter and an electrostatic emulsion mist extractor. Ideal for handling workpieces up to 175mm in height and 12kg in weight. For more information about this vertical turning machine, please reach out to us.

Overview

brand: EMAG
year: 2011
MODEL: VLC 250
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
availability: Immediately
control unit brand: Siemens

Technical Information - EMAG VLC 250

Control Unit

Brand: Siemens
Model: Sinumerik 840Dsl

Main drive

Spindle motor power: 28 kW (100% ED), 38 kW (40% ED)

Workpiece

Workpiece drm: 170 mm
Workpiece x: 175 mm

Additional equipment

- Tool turret with 12 stations
- Drilling station for one drilling tool with Capto C8 holder incl. IK
- Full clamping cylinder SMW SIN-S 125
- 3-jaw power chuck with quick jaw change system
- Coolant system with paper band filter SBF100 (Flow rate 100 l/min, 540l)
- Electrostatic emulsion mist extraction IFS IFE2000 (2000m³/h)
- Hinged belt chip conveyor with integrated cooling lubricant tank (Capacity approx. 360 litres, Chip discharge height 1250mm)
- Open pallet circulation system as L-belt with pick-up station (Storage capacity 30 workpieces, Diameter 30 - 170mm, Workpiece height max. 175mm, Max. weight 12kg)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: 330 nm (100% ed), 460 nm (40% ed)
- - Shank diameter: 40mm
- - High-performance main drive and tool carrier
- - Quick jaw change system for the 3-jaw power chuck
- - Integrated cooling and chip management systems
- - Torque at 100% ed: 330 nm (main drive), 15 nm (tool carrier)
- - Torque at 40% ed: 460 nm (main drive), 24 nm (tool carrier)
- - Spindle head size 6
- - Max. Actuating force fv at 70 bar: 84 kn
- - Max. Actuating force fz at 70 bar: 71. 75 kn
Qualitative Machine Benefits:
- - 2 units available

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
