EMAG VL3

Photo Gallery

EMAG - VL3DE-TUR-EMA-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

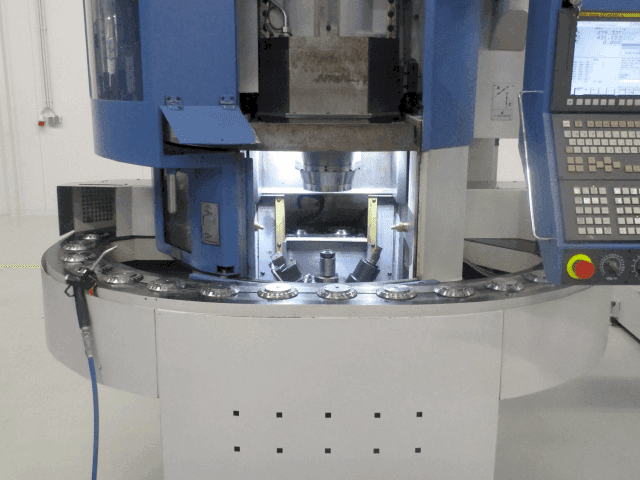

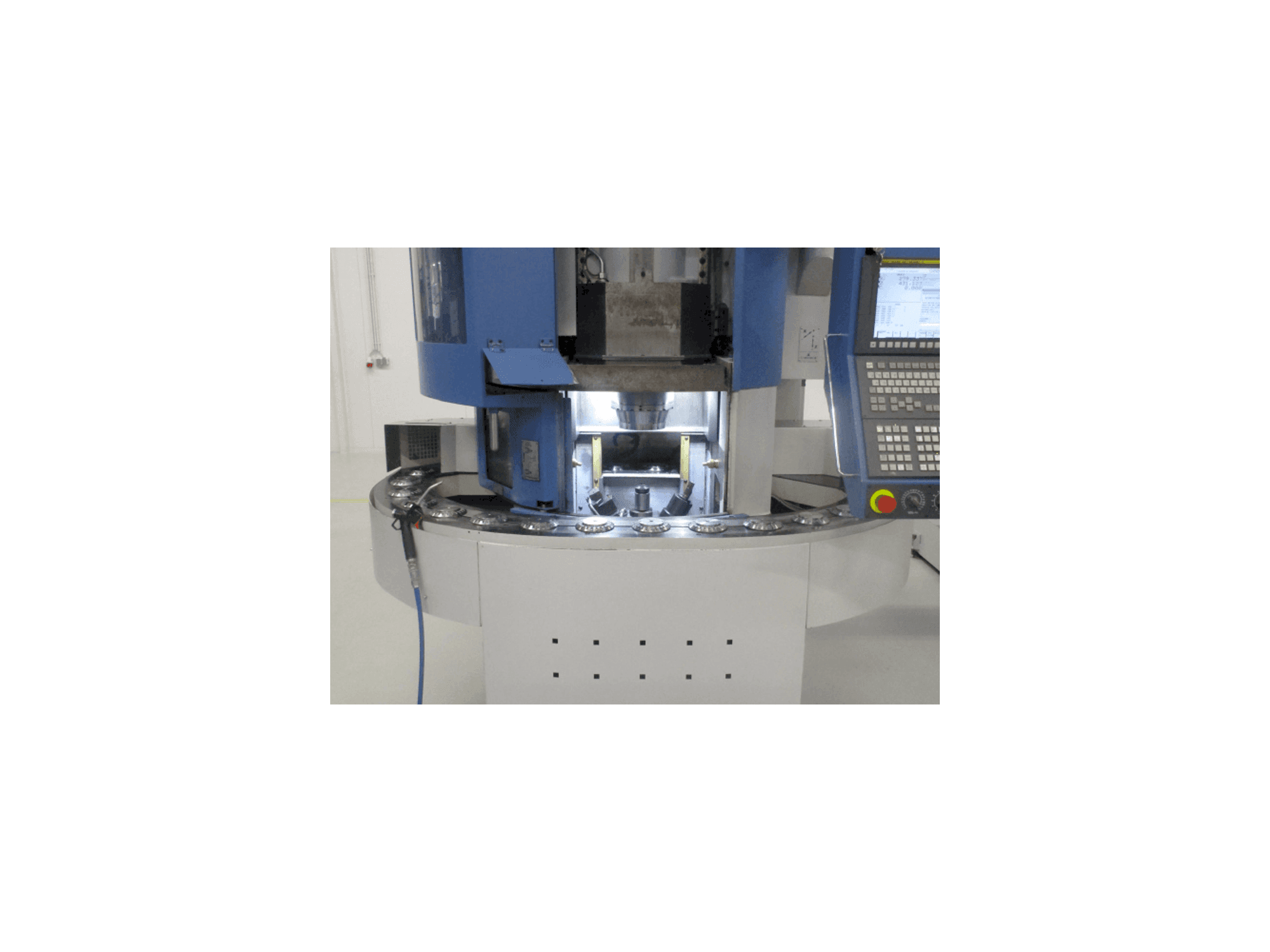

EMAG VL3 Vertical Lathe

Show in original language

This EMAG VL3 Vertical Lathe was MADE in the year 2011. It has a production history of 10580 hours since then. It is operated through a FANUC Series 32i-Model A control unit. This machine can perform with a spindle speed up to 7500 rpm.

Overview

brand: EMAG
year: 2011
MODEL: VL3
production hours: 10580
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - EMAG VL3

General Data

Measurements width: 1900 mm
Measurements depth: 2500 mm
Measurements height: 2300 mm
Machine weight: 5500 kg

Control Unit

Model: Series 32i-Model A
Brand: FANUC

Main drive

Spindle speed range: 7500 1/MIN

Movement

X-AXIS Movement: 400 mm
X-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 200 mm
Z-AXIS Rapid traverse: 30 m/min

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Vertical turning lathe
- - Includes workpiece turning station
- - Control panel with 10. 4" colour lcd screen
- - Chuck diameter mm 170, swing diameter mm 210
- - Cylindrical shank holder din 69880 12-fold
- - Spindle flange according to din 55026 size 5
- - Spindle bearing - Ø front mm 80
- - Ac asynchronous motor 100/ 40% ed kw 16/25
- - Torque 100/ 40% ed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
