DOOSAN VM 960L

Photo Gallery

DOOSAN - VM 960LKR-MIL-DOO-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

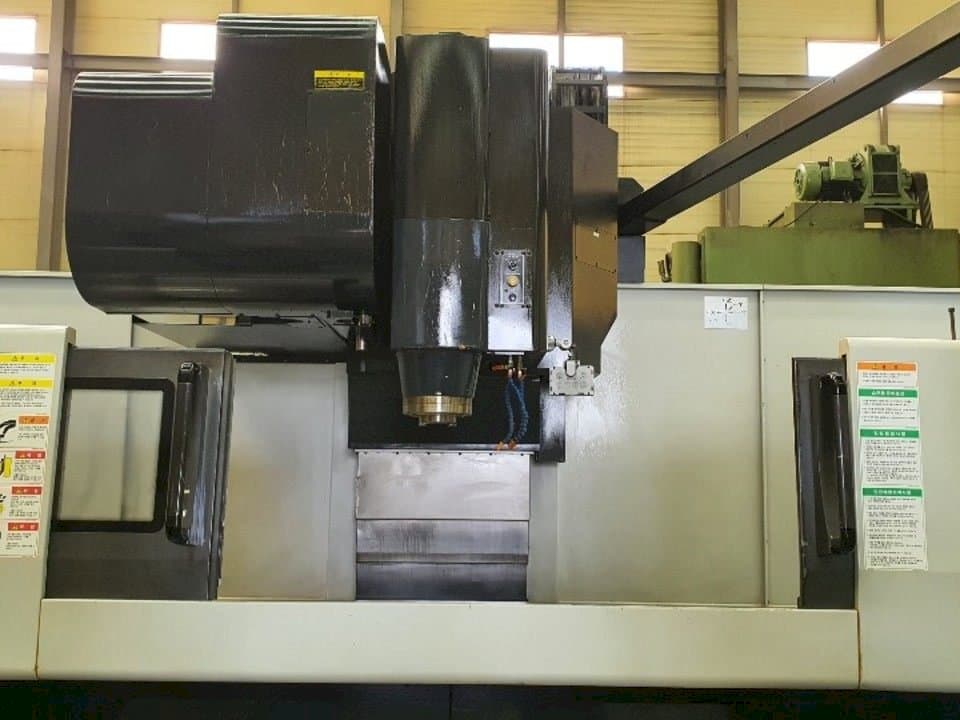

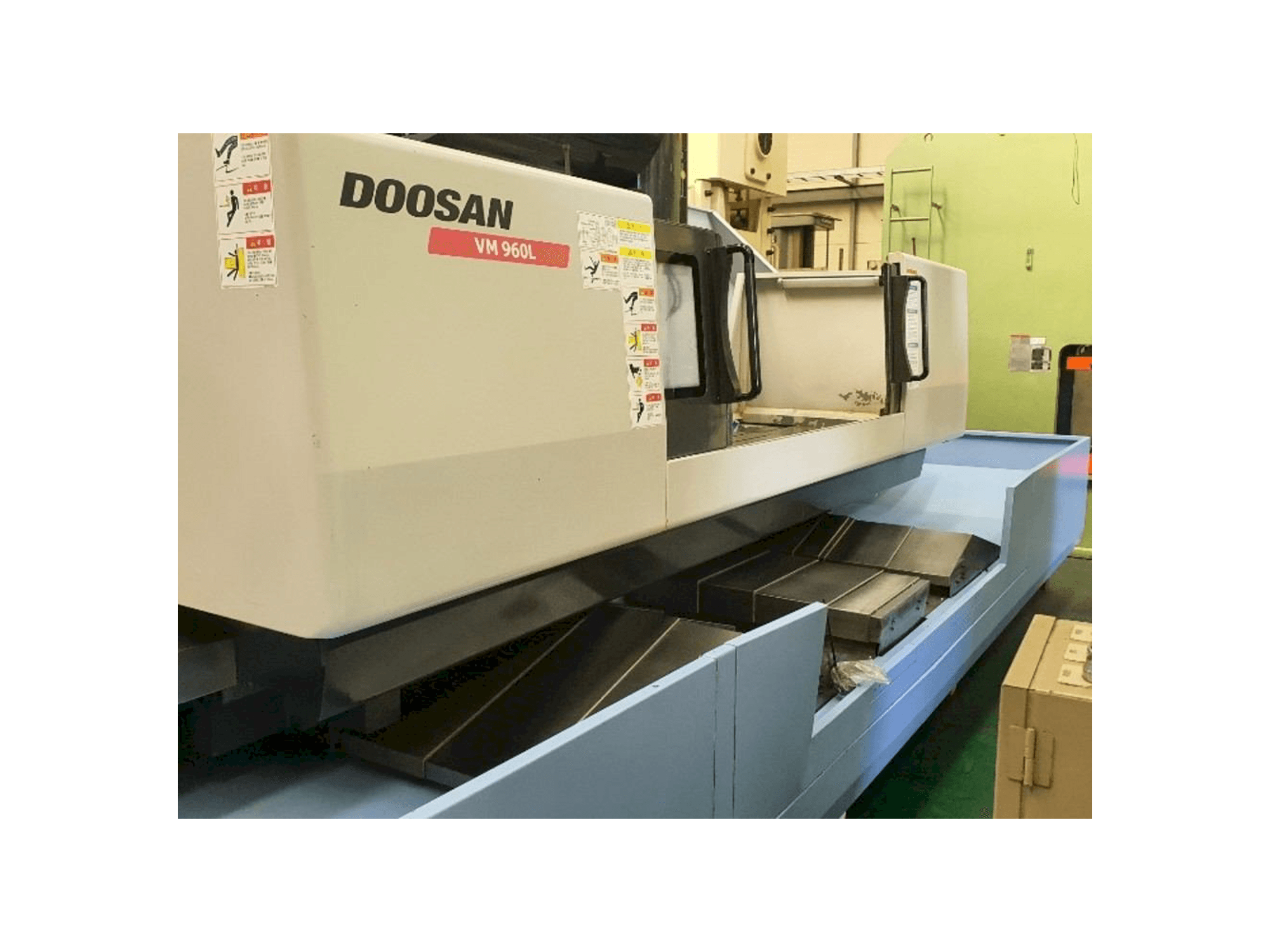

Doosan VM 960L Vertical Machining Center

Show in original language

This Doosan VM 960L Vertical Machining Center was manufactured in the year 2013 in Korea and counts with 9674 hours, from which 6180 are cutting ones. It is operated through a Fanuc Series 31i Model A control unit. This machine can work with a spindle speed range up to 8000 rpm.

Overview

brand: DOOSAN
year: 2013
MODEL: VM 960L
production hours: 9674
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN VM 960L

Control Unit

Control Brand: FANUC
Control Model: Series-31i Model A

Dimensions

Machine Weight: 21000 kg
Table Length: 2600 mm
Table Width: 950 mm

Movement

X-axis Travel: 2400 mm
Y-axis Travel: 960 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Chip Conveyor
Bucket
Oil cooler
Hydraulic unit

Machine Benefits

Qualitative Machine Benefits

Manual books

Technical Machine Benefits

Linear scale x, y, z
Data server 1gb
Magazine tool capacity : 30ea
Box guide
Call right (led 3 step)
Aicc_200block

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
