➤ Used DOOSAN VM 5400 For Sale | gindumac.com

Show in original language

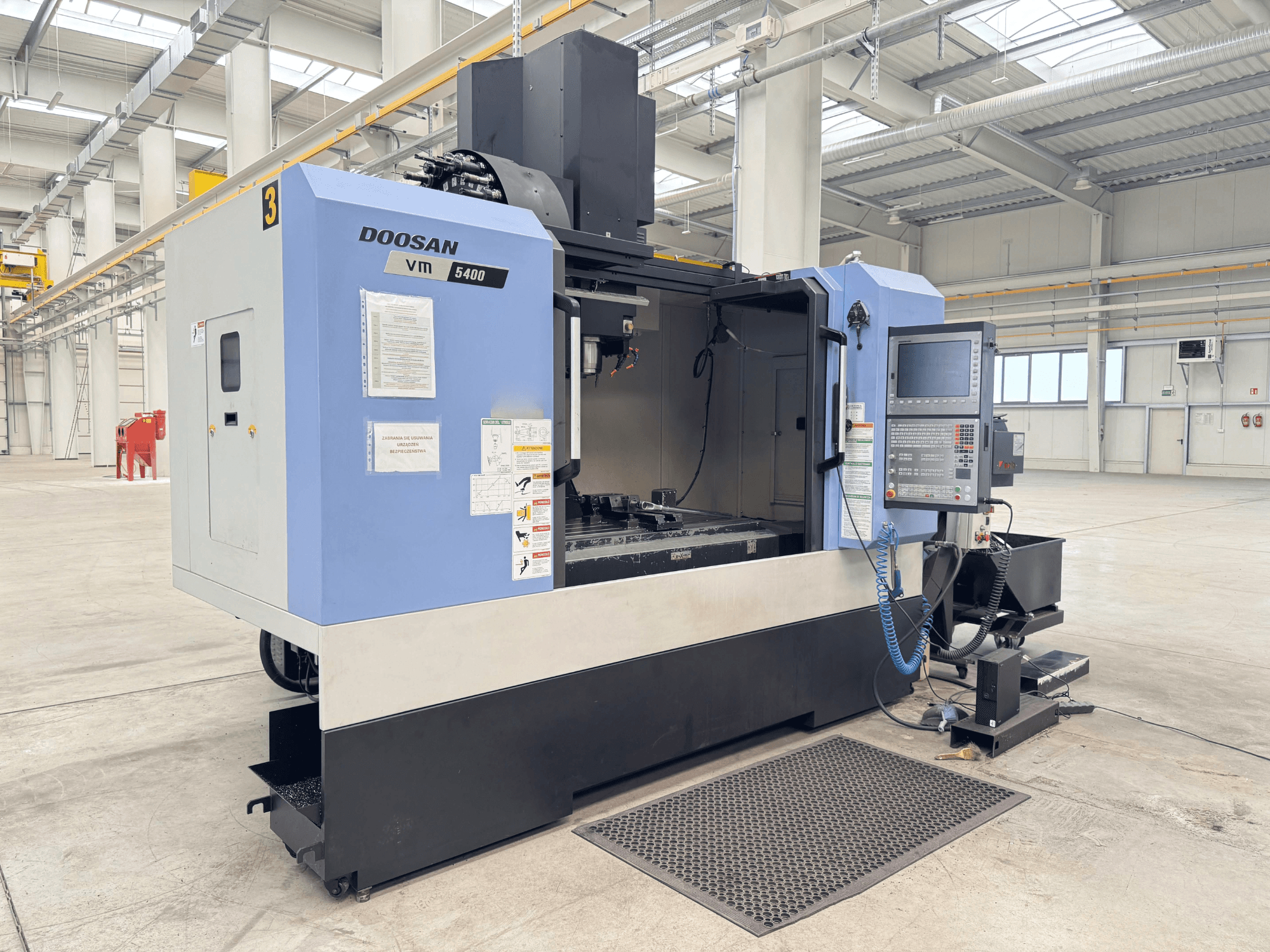

This 3-axis DOOSAN VM 5400 was manufactured in 2019. It features an impressive X-axis travel of 1020 mm, Y-axis travel of 540 mm, and Z-axis travel of 530 mm. The machine includes a robust table size of 1200 x 540 mm and a maximum table load of 800 kg. If you are looking to get high-quality machining capabilities, consider the DOOSAN VM 5400 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2019
MODEL: VM 5400
production hours: 6048
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DOOSAN VM 5400

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC620

Dimensions

Machine Height: 3000 mm
Machine Length: 3000 mm
Machine Weight: 7000 kg
Machine Width: 2600 mm
Table Length: 1200 mm
Table Load: 800 kg
Table Width: 540 mm

Movement

Number of Axes: 3
X-axis Travel: 1020 mm
Y-axis Travel: 540 mm
Z-axis Travel: 530 mm

Technical Specification

Spindle Power: 15.6 kW
Spindle Speed: 12000 RPM
Taper Size: ISO 40
Tool Stations: 30

Additional Information

Spindle taper: DIN 69871
Max. spindle torque: 165.5 N·m
Spindle cooling: VM-series standard
Tool magazine: Side-mounted ATC, cam-type
Machine hours:
- Control on time: 13,616 h
- Machine on time: 12,530 h
- Program run time: 6,963 h
- Axis motion time: 5,900 h
- Spindle S1 time: 6,048 h

Additional equipment

Workpiece probe installed
Tool length measurement probe installed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
