Doosan QL200HM
Doosan - QL200HM
2008
Rs. 7,002,650
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Chloé Martin
+33 7 86 98 48 01
c.martin@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Doosan Puma QL200HM Lathe
Show in original language

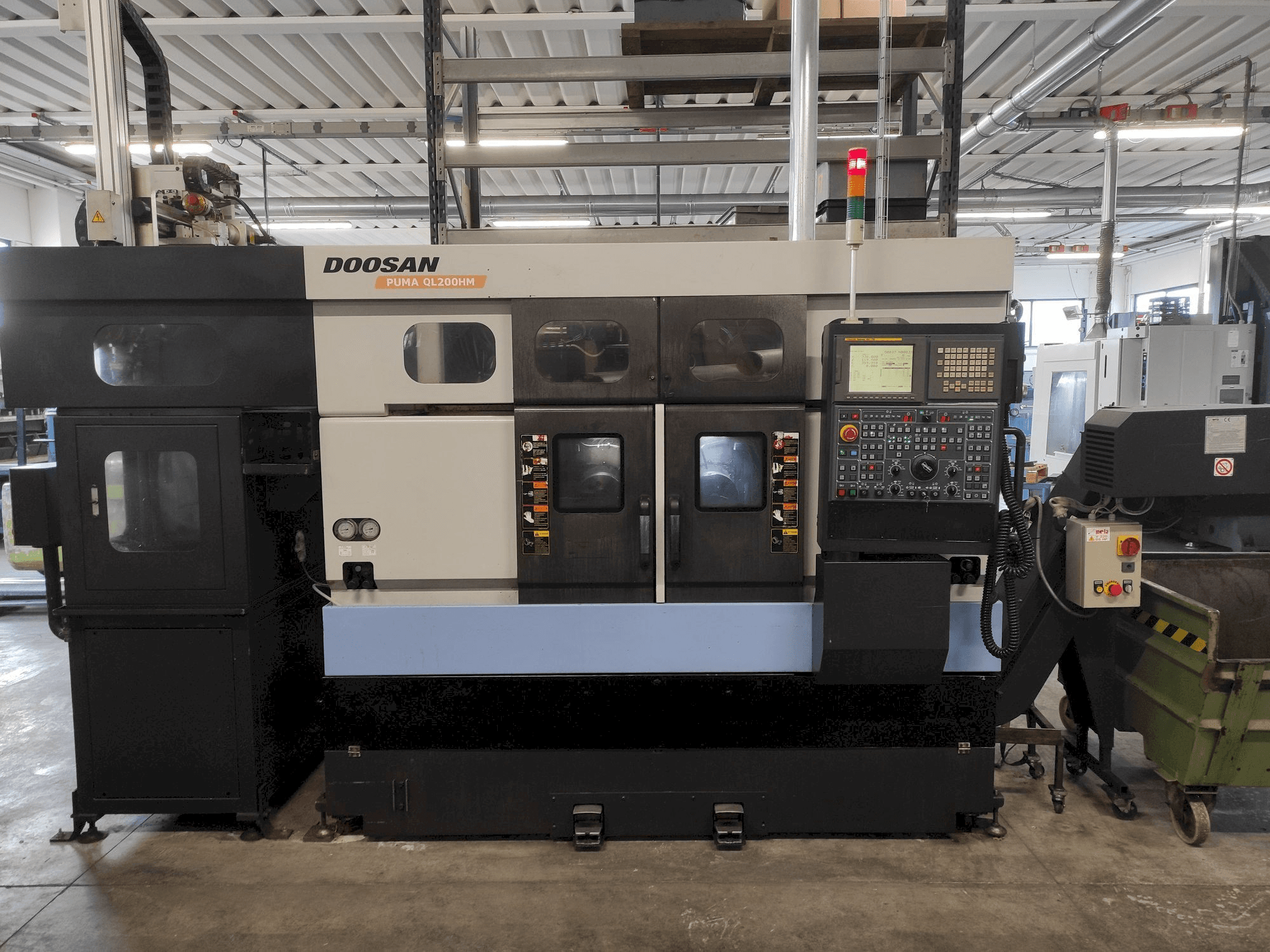

This Doosan QL200HM Lathe was manufactured in the year 2008 in Korea. It is equipped with a Fanuc Series 18i-TB control unit. The machine has a spindle speed of 40-4000 rpm.
Overview
- brand: Doosan
- year: 2008
- MODEL: QL200HM
- application type: Turning
- Location: Italy
- machine type: Lathe
- availability: Immediately
- control unit brand: Fanuc
- GINDUMAC ID: IT-TUR-DOO-2008-00002
Technical Information
General Data
- Machine weight: 7200 kg
Control Unit
- Brand: Fanuc
- Model: Series 18i-TB
Main drive
- Spindle speed range: 40-4000 1/MIN
- Spindle motor power: 11/15 kW
- Tool taper: ASA A2-6
Movement
- X-AXIS Movement: 180 mm
- C-AXIS Movement: ±360º MM
Additional Information
- Technical Machine Benefits:
- - Standard 3-jaw hydraulic chuck, diameter: 210 mm
- - Series of soft jaws and series of reversible hardened jaws
- - Maximum power available starting from the speed of: 529 min^-1
- - Max. Torque spindle motor (cont. /30 min. ): 198/270 nm
- - Front bearing diameter: 100mm
- - Chuck diameter: 62 mm
- - Internal diameter of the tie rod: 52 mm
- - C1 axis positioning continuous spindle angular, interpolating, resolution
- - Standard 3-jaw hydraulic chuck, closed type, diameter: 210 mm
- - Series of soft jaws and series of reversible hardened jaws -
- Qualitative Machine Benefits:
- - Prismatic guides and counter guides coated with anti-friction material
- - Cast iron pallet, separate type (l+r), inclination
- - Maximum power available starting from the speed of: 562 min^-1
- - Max. Torque spindle motor (cont. /30 min. ): 187/255 nm
- - Front bearing diameter: 100mm
- - Internal diameter of the tie rod: 52 mm
- - C2 axis positioning continuous spindle angular, interpolating, resolution
- - Automatic bidirectional turret, without lifting, controlled by electric motor, with hydraulic locking; connection type: vdi-30 radial
- - Motorized turret stations: 12 nr
- - Coupling disc diameter: 150 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
