DOOSAN - Puma MX2600STGB-TUR-DOO-2014-00008

Name: DOOSAN Puma MX2600ST
Brand: DOOSAN
SKU: GB-TUR-DOO-2014-00008
Price: 11779357 INR
Availability: InStock

Rs. 11,779,357

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Puma MX2600ST For Sale | gindumac.com

Show in original language

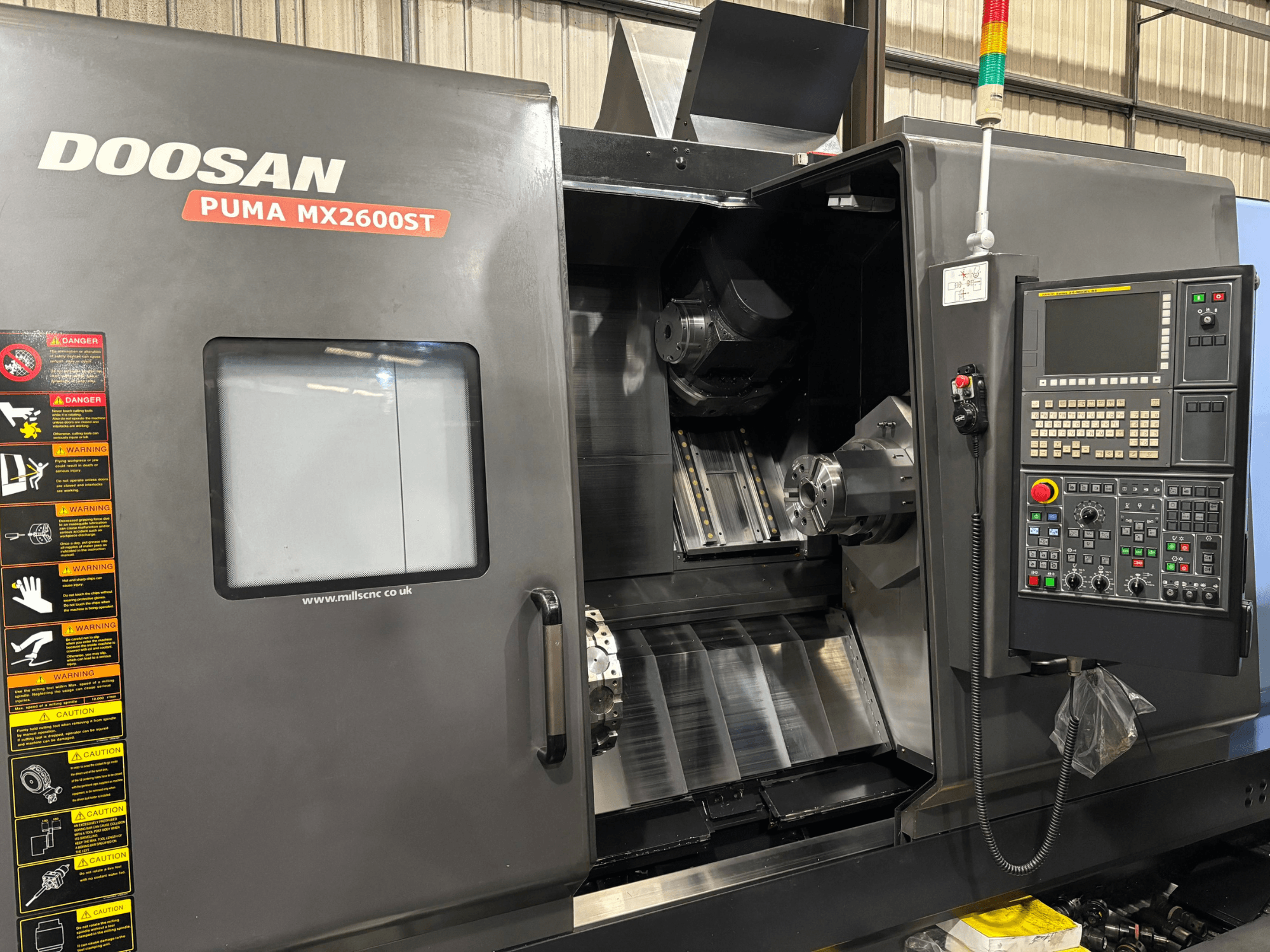

This 7-axis DOOSAN Puma MX2600ST was manufactured in 2014, featuring a robust horizontal turning machine design. It includes a B-axis of +/-120 degrees, extensive X, Y, Z travels, and a bar capacity of 76mm. The machine is equipped with a FANUC 31i-Model B5 control, a 40 station tool changer, and a 22kW spindle motor. If you are looking to get high-quality turning capabilities consider the DOOSAN Puma MX2600ST machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2014
MODEL: Puma MX2600ST
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Puma MX2600ST

Control Unit

Control Brand: FANUC
Control Model: Series 31i-MODEL B5

Dimensions

Machine Weight: 15500 kg

Movement

Number of Axes: 7
X-axis Travel: 630 mm
Y-axis Travel: 115 mm
Z-axis Travel: 1585 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 4000 RPM

Additional Information

B-axis: +/-120 degrees
X2-axis travel: 220 mm
Z2-axis travel: 1515 mm
Bar capacity: 76 mm
Chuck size: 250 mm (10")
Swing: 1000 mm
Maximum cutting diameter: 760 mm
Standard cutting diameter: 255 mm
Maximum cutting length: 1540 mm
Milling spindle speed: 12,000 rpm
Main spindle nose: A2-8
Main spindle C-axis: 0.001 degree
Sub spindle nose: A2-8
Sub spindle speed: 4000 rpm
Sub spindle C-axis: 0.001 degree
Sub spindle stroke (A-axis): 1550 mm
Tool changer capacity: 40 stations
Tool interface: CAPTO C6
Lower turret

Additional equipment

Swarf (chip) conveyor
Through-spindle coolant
Remote hand wheel
Tool setter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
