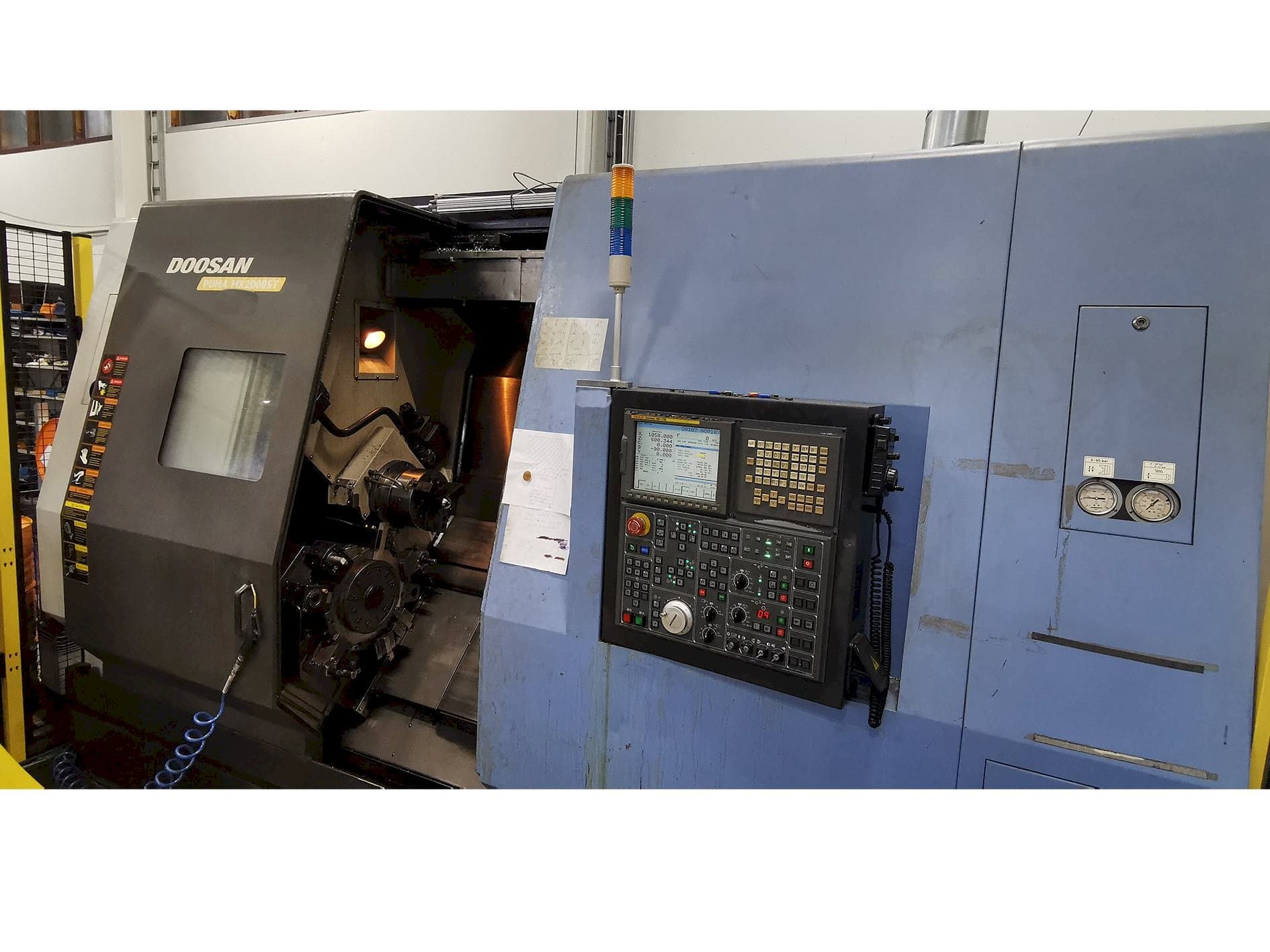

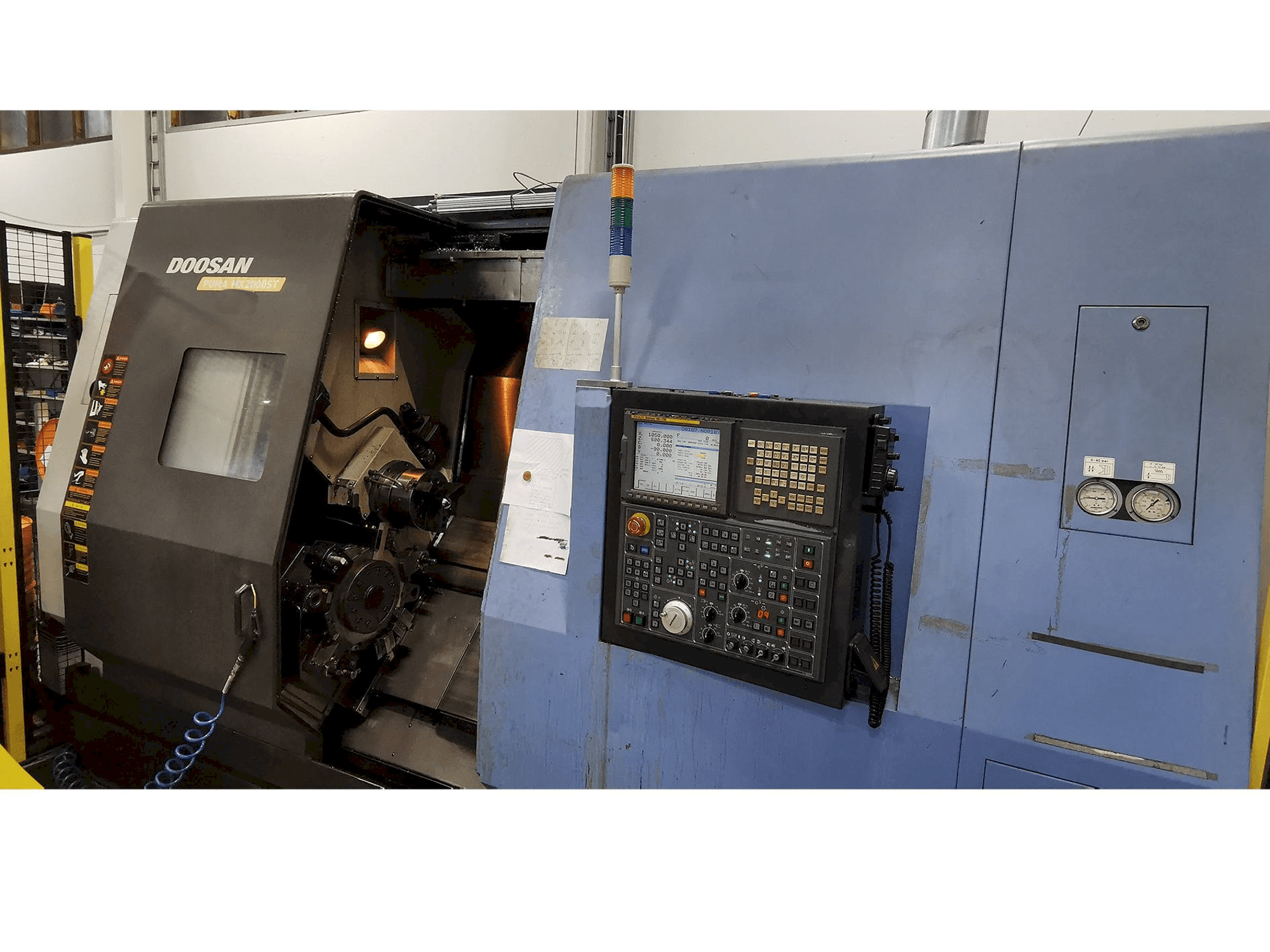

Front view of Doosan Puma MX 2000 ST machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma MX 2000 ST

Photo Gallery

DOOSAN - Puma MX 2000 STFI-TUR-DOO-2007-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan PUMA MX 2000 ST Lathe

Show in original language

This Doosan MX 2000 ST Lathe was manufactured in Korea in 2007. It shows 10800 production hours. This 9 axis machine is equipped with a FANUC 18-T control unit and operates with a spindle speed up to 10000 rpm.

Overview

brand: DOOSAN
year: 2007
MODEL: Puma MX 2000 ST
production hours: 10800
application type: Turning
Location: Finland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma MX 2000 ST

General Data

Measurements width: 4500 mm
Measurements depth: 2500 mm
Measurements height: 2600 mm
Machine weight: 12500 kg

Control Unit

Model: 18-T
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Turret

Number of turrets: 1

Media

Main electronic connection: 400 V
Power consumption: 66,09 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 9 controlled axes x1x2-y1y2-a-b-c1 / c2-y
- - Admitted above the bench 750 mm
- - Admitted above the carriage 600 mm
- - Max turning 550 mm
- - Turning without interference 210 mm
- - Bar turning 65 mm
- - Maximum turning length 1020 mm
- - Spindle & counter-spindle: 2 mandrels 210 mm; spindle nose a2-6 ‘'; spindle bore 66 mm
- - Spindle & counter-spindle: rotation speed 5000 rpm; unit power 22 kw; c1 / c2 axes 360000 (continuous rotation)
- - Milling spindle: tool changer 40 stations with gripper arm; tool change time 1, (second) b axis 360 ° 30 °; increment (spindle tilt)
Qualitative Machine Benefits:
- - Turret: 12 positions
- - Complete documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
