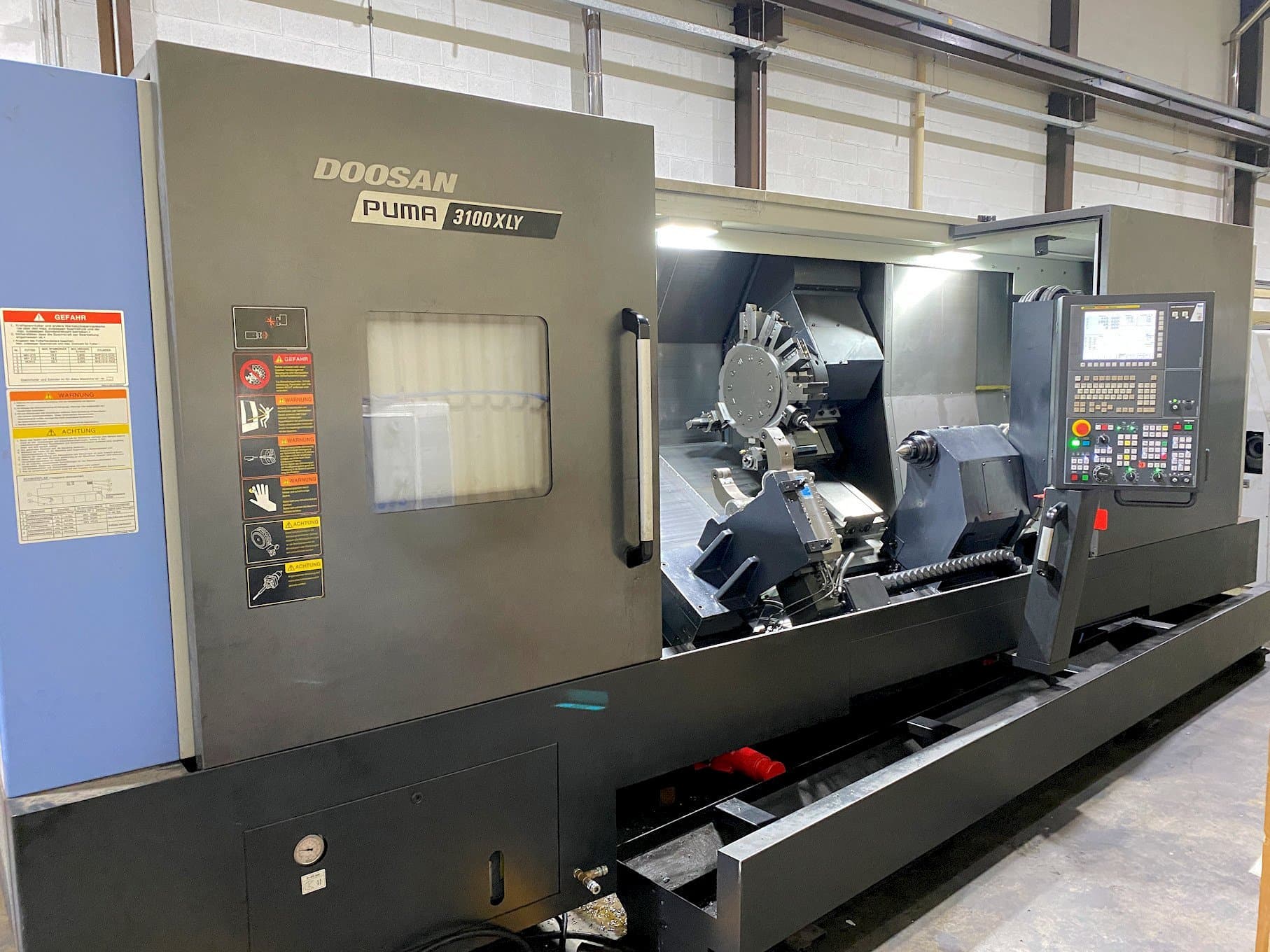

Front view of Doosan Puma 3100XLY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma 3100XLY

Photo Gallery

DOOSAN - Puma 3100XLYGB-TUR-DOO-2018-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma 3100XLY Lathe machine

Show in original language

This Doosan 3100XLY Lathe machine was manufactured in the year 2018 in South Korea. This 4 axis machine counts with a production record of 5906 hours, of which 1019 are cutting hours. It is operated through a FFANUC 0I control unit and works with a spindle speed up to 2800 rpm.

Overview

brand: DOOSAN
year: 2018
MODEL: Puma 3100XLY
production hours: 5906
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Puma 3100XLY

General Data

Measurements width: 6443 mm
Measurements depth: 2280 mm
Measurements height: 2315 mm
Machine weight: 10800 kg

Control Unit

Model: 01
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2800 1/MIN

Movement

X-AXIS Movement: 293 mm
Y-AXIS Movement: +/- 65 mm
Z-AXIS Movement: 2190 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
Machine manual

Technical Machine Benefits

Swing over bed 850 mm
Swing over the cross-slide 670mm
Maximum cutting diameter 420mm
Maximum cutting length 2125mm
Spindle motor power 22/18. 5kw
Spindle bore 115mm
Bar capacity 102mm
Milling motor power 7. 5/5. 5kw, rpm 5000
Tailstock quill diameter 120mm
Tool setter, coolant, interlocked guards, low volt light, 3 jaw chuck, tooling, hydraulic power work steady

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
