DOOSAN NX 5500 II

Photo Gallery

DOOSAN - NX 5500 IIPT-MIL-DOO-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

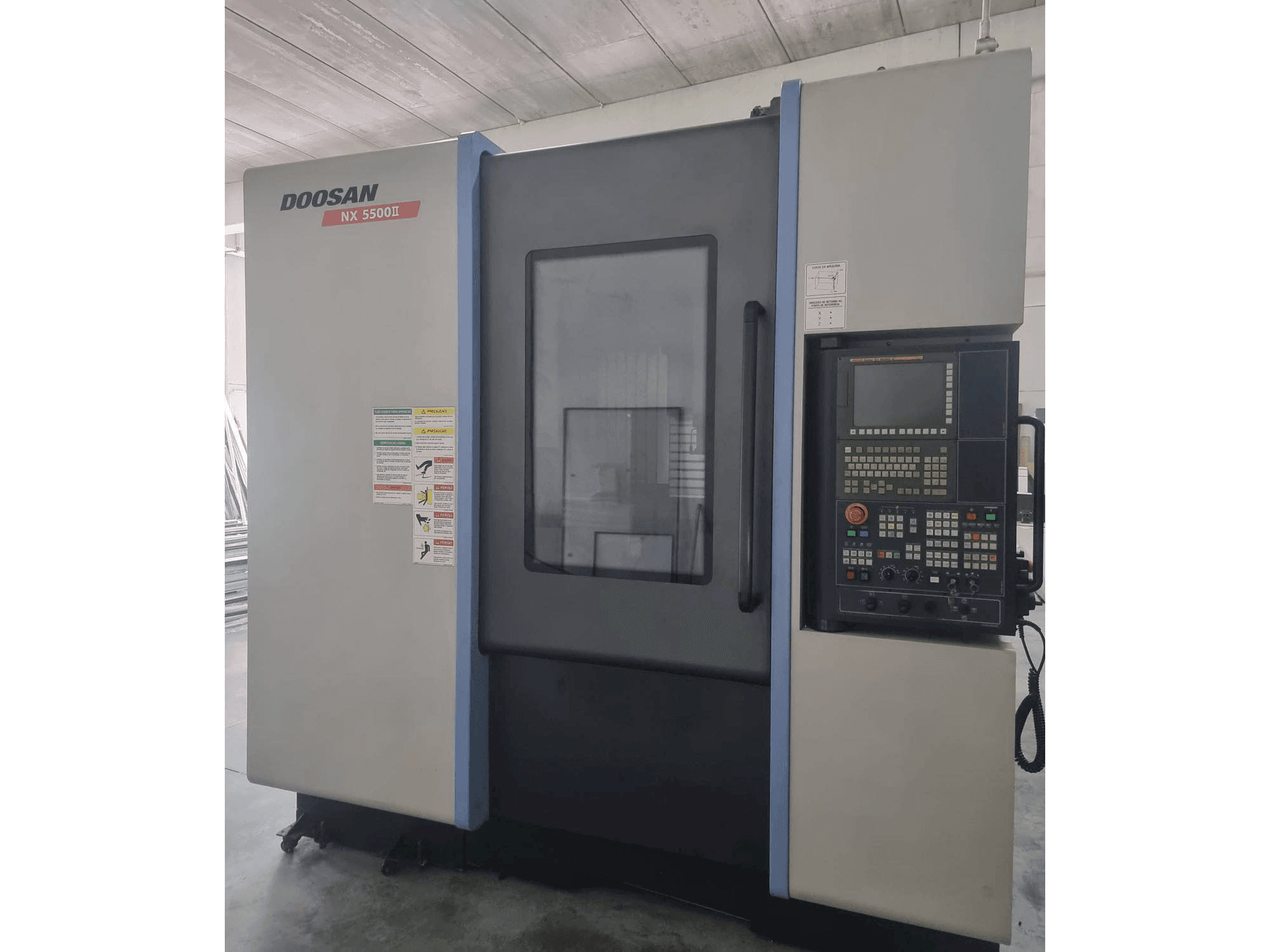

Doosan NX 5500 II Vertical Machining center

Show in original language

This Doosan NX 5500 II Vertical Machining Center was manufactured in the year 2013. It is equipped with a FANUC 31i control unit and has 3 axis. The machines has a spindle speed of 20000 rpm.

Overview

brand: DOOSAN
year: 2013
MODEL: NX 5500 II
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN NX 5500 II

Control Unit

Control Brand: FANUC
Control Model: 31i

Dimensions

Machine Depth: 2530 mm
Machine Height: 3064 mm
Machine Weight: 9000 kg
Table Length: 1000 mm
Table Load: 700 kg
Table Width: 550 mm

Movement

Number of Axes: 3
X-axis Travel: 900 mm
Y-axis Travel: 550 mm
Z-axis Travel: 500 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Power: 11 kW
Spindle Speed: 20000 RPM
Tool Stations: 30

Additional Information

Machine Benefits

Technical Machine Benefits

Tool change time: 1,6 s
Coolant system
Chip conveyor
Screw conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

NX_5500II.pdf
