➤ Used DOOSAN NM 410 For Sale | gindumac.com

Show in original language

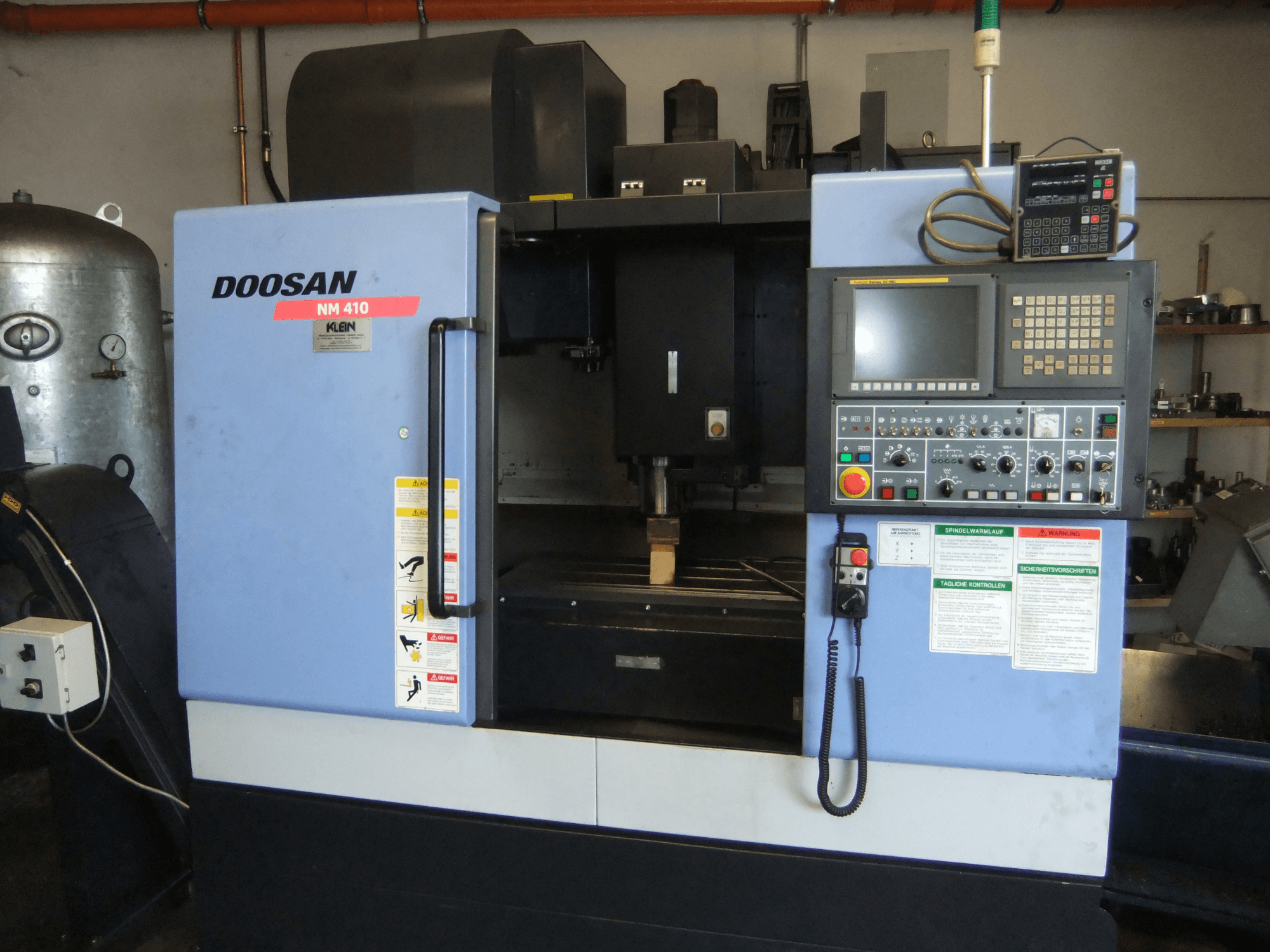

This 3-axis DOOSAN NM 410 was manufactured in 2007. It features a table size of 920 x 430 mm and impressive X-axis travel of 762 mm, Y-axis travel of 410 mm, and Z-axis travel of 510 mm. The machine is equipped with a spindle speed range of 20 - 8,000 RPM and a tool changer capacity of 24 positions. If you are looking to get high-quality machining capabilities, consider the DOOSAN NM 410 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2007
MODEL: NM 410
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN NM 410

Control Unit

Control Brand: FANUC
Control Model: Series 0i-MC

Dimensions

Table Length: 920 mm
Table Width: 430 mm

Movement

Number of Axes: 3
X-axis Travel: 762 mm
Y-axis Travel: 410 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Speed: 8000 RPM
Taper Size: SK 40
Tool Stations: 24

Additional Information

- CNC Control Operating Hours: 47,484 h

- Automatic/Operating Time: 4,394 h

- Feed Time: 10,336 h

- Table Size: 920 x 430 mm

- Spindle Speed Range: 20 - 8,000 RPM

- Spindle Taper: SK 40 / DIN 40

- Tool Changer Capacity: 24 positions

- Power Connection: AC 220 V, 3-Phase, 50/60 Hz

- Rated Power / Apparent Power: 36.87 kVA

- Full-Load Current: 101.98 A

- Interruption Current: 9000 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
