DOOSAN MYNX DNM 6500 Vertical Machining center

Show in original language

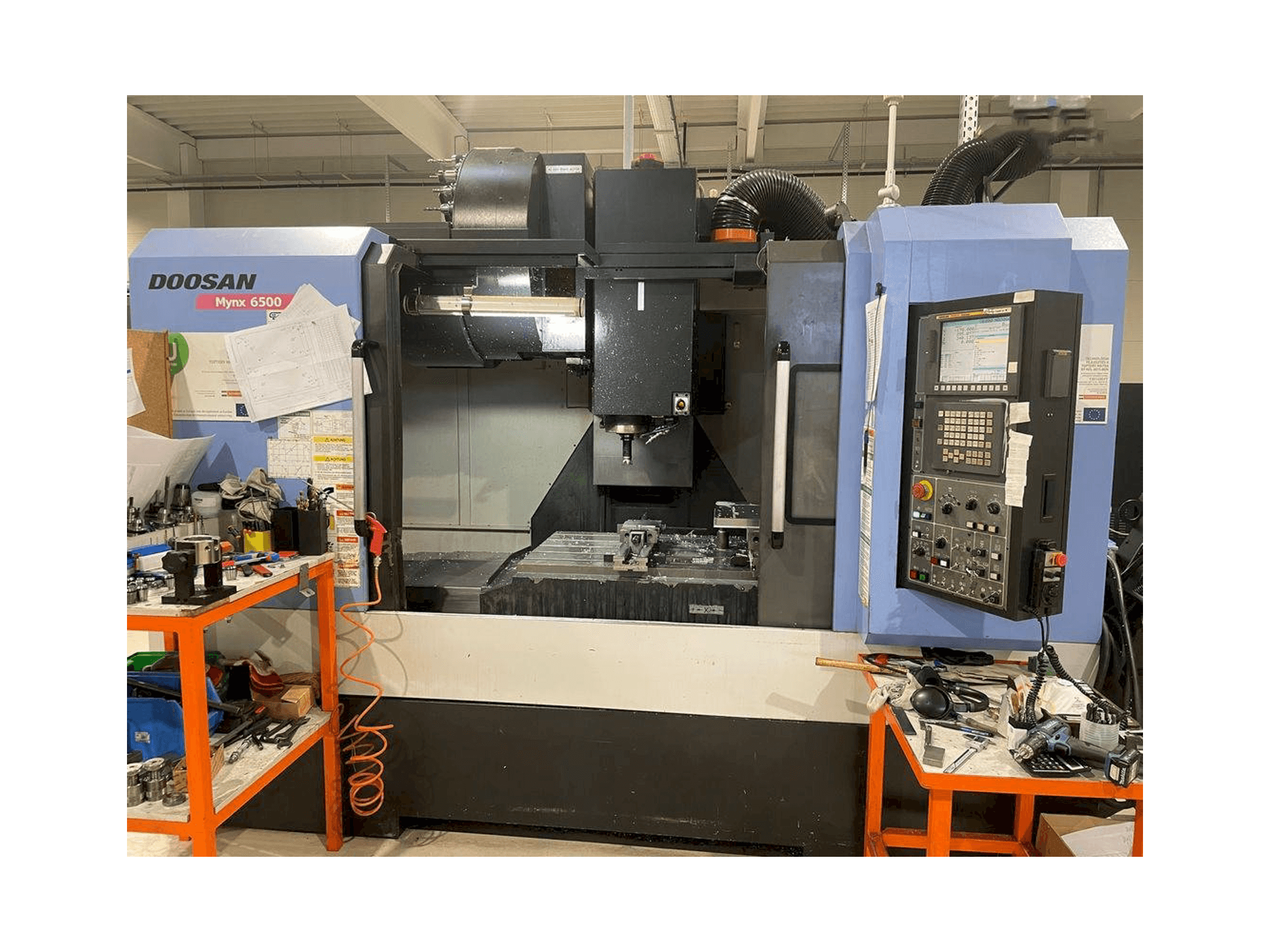

This is DOOSAN MYNX DNM 6500 Vertical Machining center was manufactured in the year 2011. It is equipped with a Fanuc i Series control unit and has 4 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: MYNX DNM 6500
application type: Milling
Location: France
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Fanuc
GINDUMAC ID: FR-MIL-DOO-2011-00001

Technical Information

General Data

Measurements width: 3200 mm
Measurements depth: 2750 mm
Measurements height: 2940 mm
Machine weight: 9000 kg

Control Unit

Brand: Fanuc
Model: i Series

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 15 kW
Tool taper: BT 40
Number of axis: 4

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 670 mm
Z-AXIS Movement: 625 mm

Table

Outer length: 1400 mm
Outer width: 670 mm
Table load: 1000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 30 position tool changer
- - Watering center 20 bar
- - Conveyor
- - 4th axis preparation
- - Rapid advance 30 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
