➤ Used DOOSAN Lynx 220 LMSA For Sale | gindumac.com

Show in original language

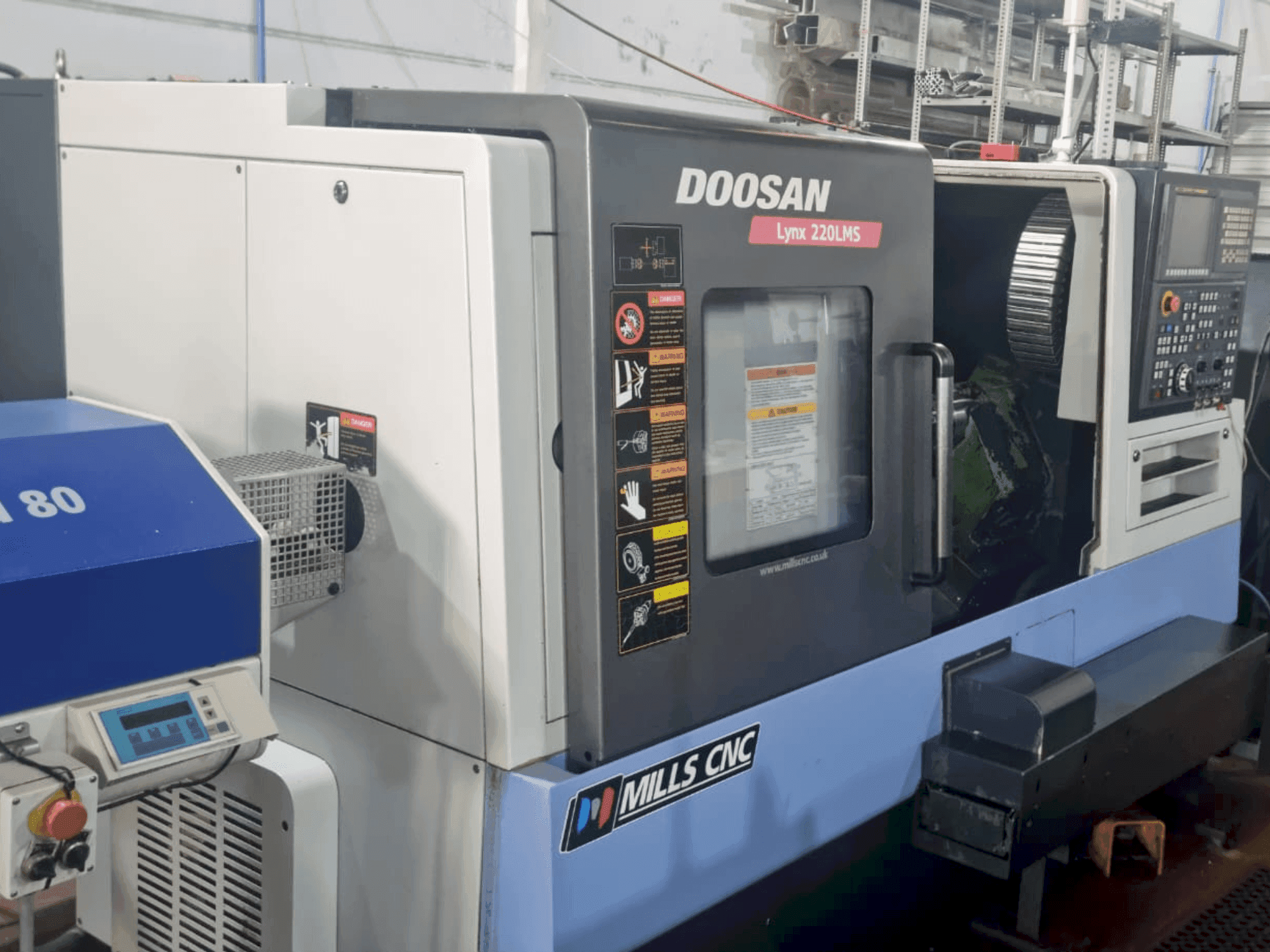

This 4-axis DOOSAN Lynx 220 LMSA was manufactured in 2013. It features a FANUC i Series control unit, dual spindles with a speed of 6,000 rpm, and a comprehensive travel range with X-axis at 160 mm and Z-axis at 550 mm. It includes an IEMCA KID 80 automatic bar feeder and a set of toolholders. If you are looking to get high-quality turning capabilities, consider the DOOSAN Lynx 220 LMSA machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2013
MODEL: Lynx 220 LMSA
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220 LMSA

General Data

Measurements width: 1600 mm
Measurements depth: 2700 mm
Machine weight: 3500 kg

Control Unit

Brand: FANUC
Model: i-Series

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 160 mm
Z-AXIS Movement: 550 mm
B-AXIS Movement: 550 mm

Workpiece

Workpiece z: 510 mm
Workpiece weight: 130 kg

Turret

Number of turrets: 1
Tool taper: BMT45

Tools

Number of stations: 12
Max tool diameter: 32 mm

Additional equipment

- IEMCA KID 80 automatic bar feeder
- Set of fixed and driven toolholders
- Soft jaws
- Hard jaws

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C-axis travel: 360 °
- - Motorized tool speed: 6000 rpm
- - Motorized tool collet size: er20
- - Automatic parts catcher
- - Automatic tool presetter
- - Automatic sub-spindle parts ejector
- - External air blast for both spindles

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
