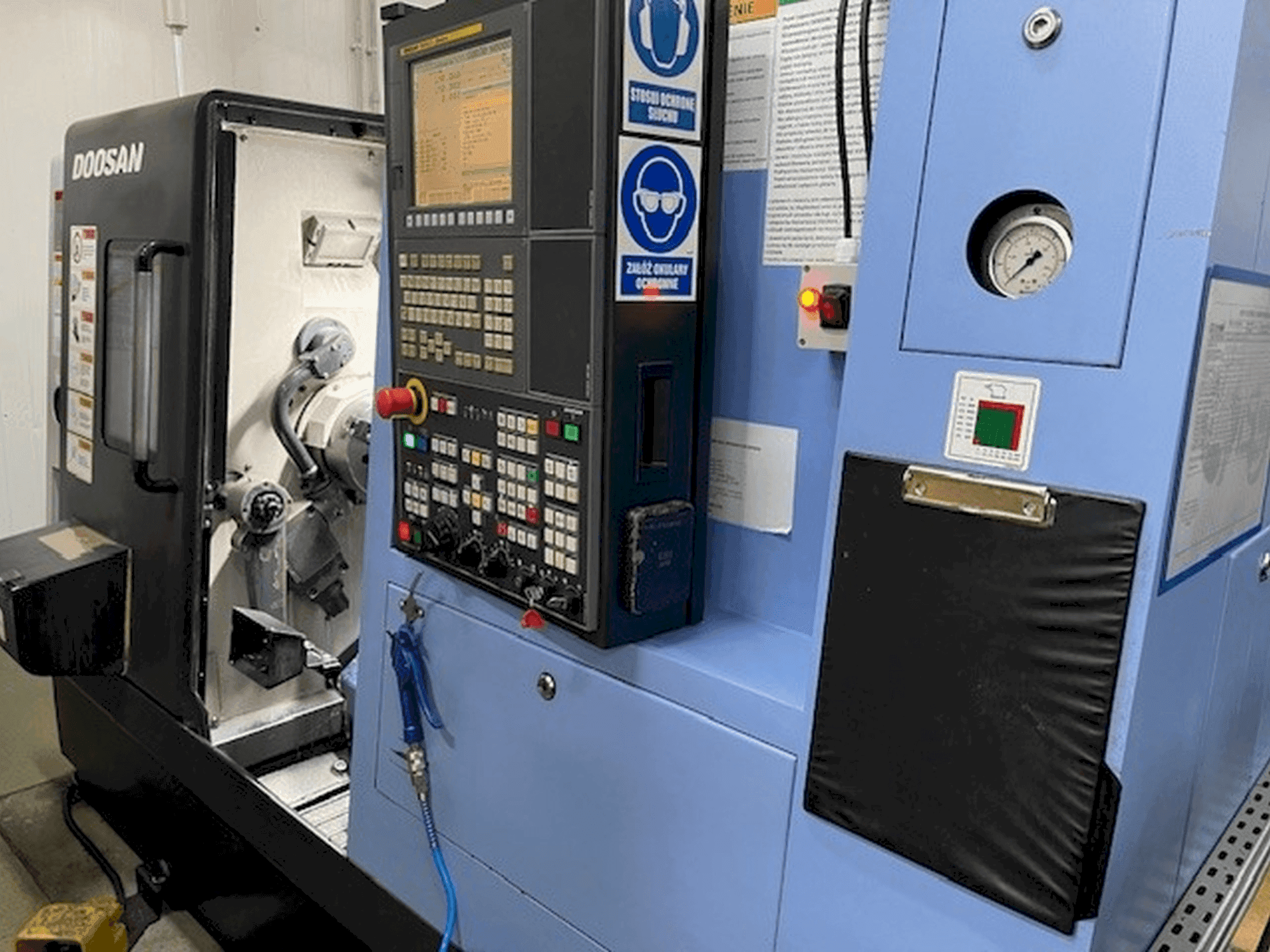

This DOOSAN Lynx 220 LMA was manufactured in 2014. A robust horizontal turning machine featuring a maximum turning length of 510 mm and a turning diameter of 250 mm. It includes a Fanuc CNC control, a spindle bore of 51 mm, and a turret with 12 tool positions. Ideal for precision machining with a maximum workpiece weight of 130 kg. Ready for tests. Contact us for more information about this machine.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: Lynx 220 LMA
- production hours: 12821
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - DOOSAN Lynx 220 LMA
Control Unit
- Brand: FANUC
Main drive
- Number of axis: 2
Movement
- X-AXIS Movement: 175 mm
- Z-AXIS Movement: 330 mm
Workpiece
- Workpiece weight: 130 kg
Table
- Distance between: 320 mm
Additional Information
- Technical Machine Benefits:
- - Swing over bed: 510 mm
- - Swing over cross slide: 290 mm
- - Number of turret heads: 1
- - Number of tools in turret: 12
- - Very good working condition. Ready for tests.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
