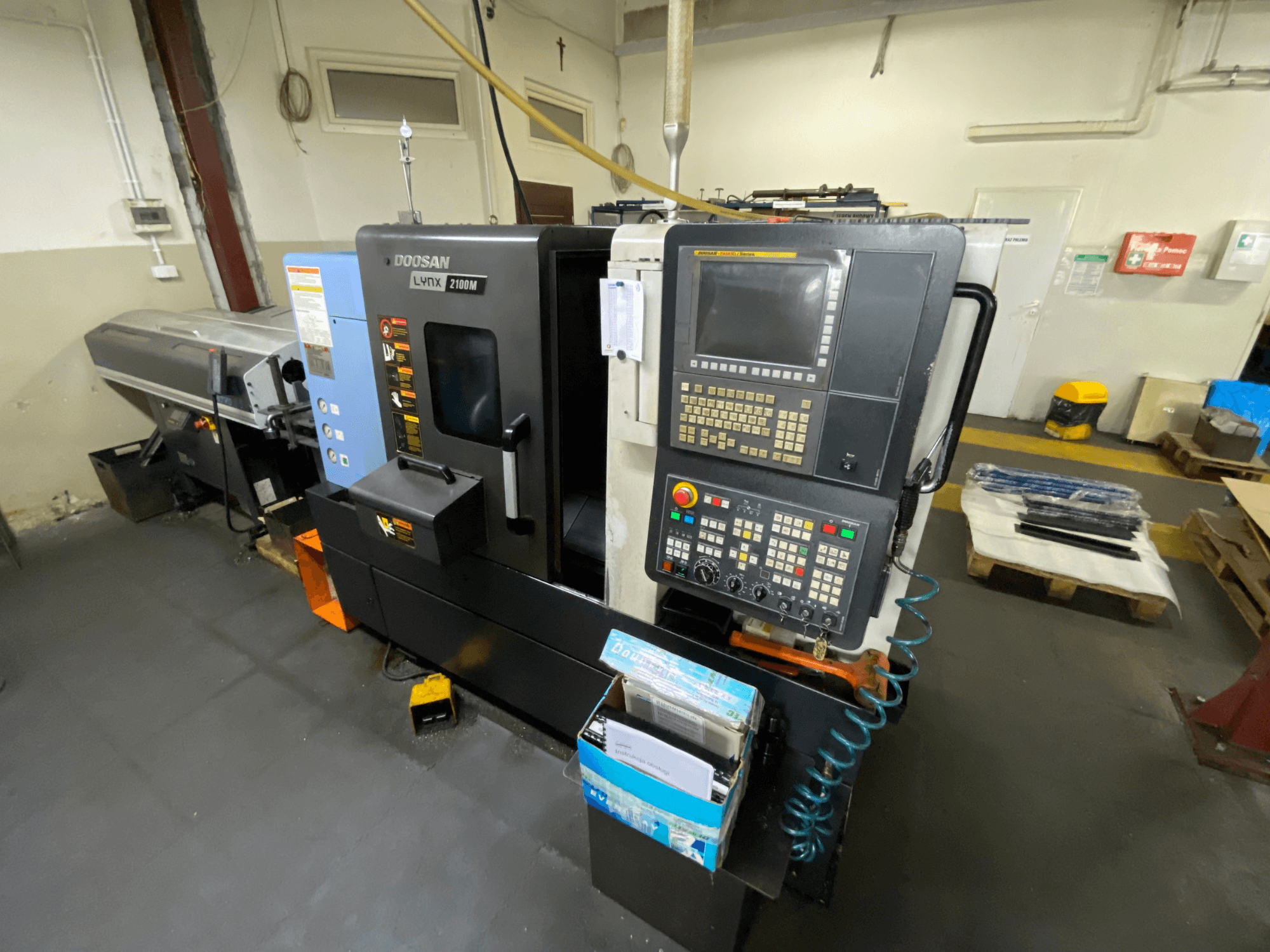

Horizontal turning machine manufactured in 2017. This DOOSAN LYNX 2100MA features a maximum turning diameter of 300 mm and a turning length of 510 mm. It is equipped with a 12-station drum turret and driven tools, providing versatility in machining. If you are looking to get high-quality turning capabilities, consider the DOOSAN LYNX 2100MA machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: LYNX 2100MA
- production hours: 9271
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN LYNX 2100MA
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Weight: 2750 kg
Movement
- Number of Axes: 3
- X-axis Travel: 205 mm
- Z-axis Travel: 510 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 15 kW
- Spindle Speed: 6000 RPM
- Tool Stations: 12
Additional Information
Maximum turning diameter: 300 mm
Maximum turning length: 510 mm
Swing over bed: 600 mm
Bar capacity through spindle: 51 mm
Spindle bore: 61 mm
Spindle nose: A2-5
Rapid traverse X / Z: 30 / 36 m/min
C-axis resolution: 0.001°
Turret: 12-station drum turret with driven tools
Driven tool speed: 6,000 rpm
Driven tool motor power: 3.7 kW
Tool shank size: 20 × 20 mm
Boring bar shank diameter: 32 mm
Chuck size: 6" hydraulic chuck
Tailstock quill diameter: 65 mm
Tailstock quill taper: MT4
Tailstock quill stroke: 80 mm
Total parts counter: 393,105 pcs (control counter)
Cutting time: 9,271 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
