Thank you for your visit

This machine was recently sold.

Browse similar machines

DOOSAN - LYNX 2100LMAPL-TUR-DOO-2019-00002

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

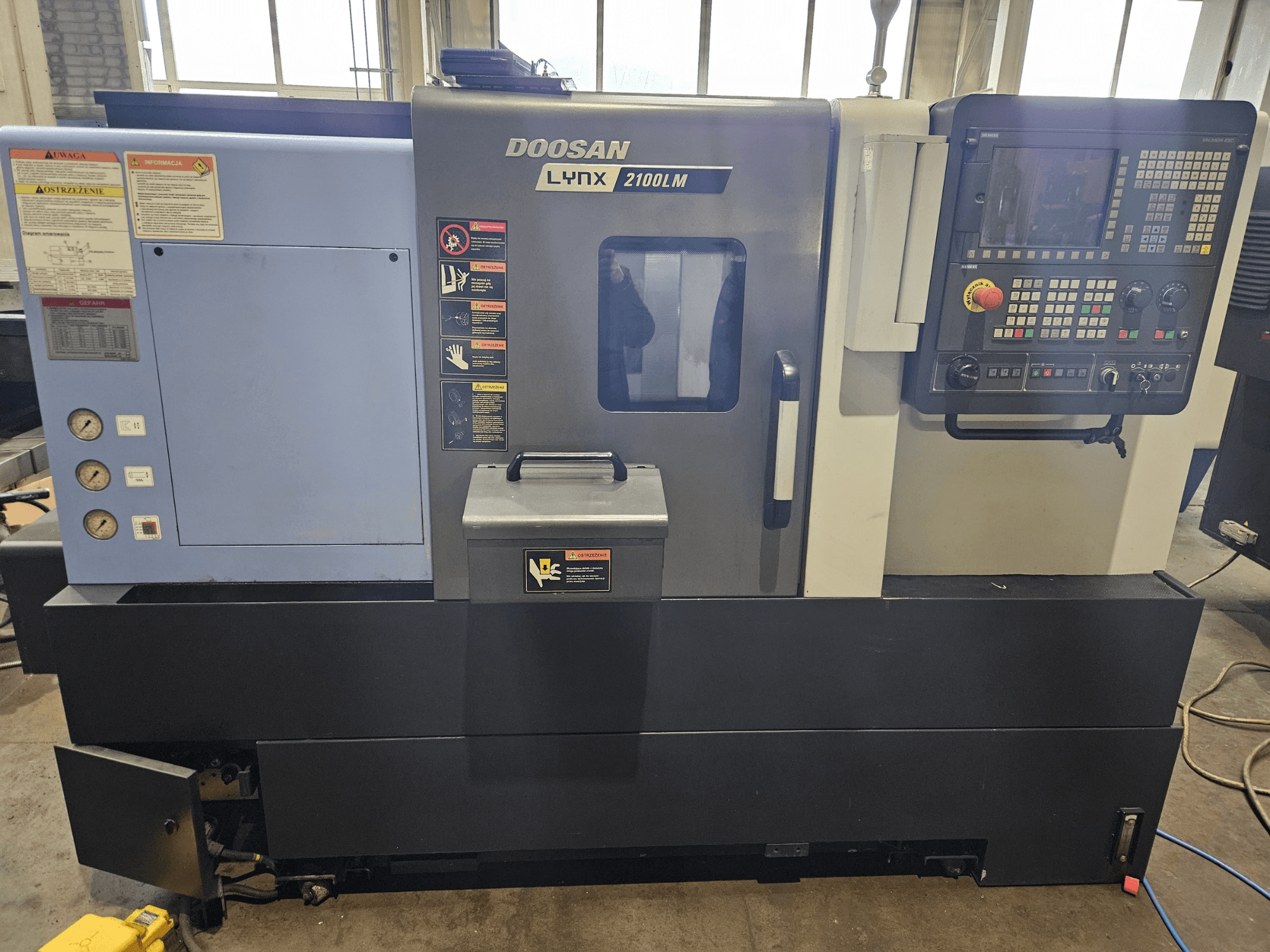

This DOOSAN LYNX 2100LMA was manufactured in 2019. It features a 6-inch chuck, a maximum turning diameter of 300 mm, and a length of 510 mm. The machine offers rapid traverses of 30 m/min in the X-axis and 36 m/min in the Z-axis, with a spindle speed up to 6000 rpm. Ideal for precision turning, it also includes a 12-station turret. Contact us for more information about this machine.

Overview

  • brand: DOOSAN
  • year: 2019
  • MODEL: LYNX 2100LMA
  • application type: Turning
  • Location: Poland
  • machine type: Horizontal Turning Machine
  • control unit brand: SIEMENS

Technical Information - DOOSAN LYNX 2100LMA

Control Unit

  • Control Brand: SIEMENS

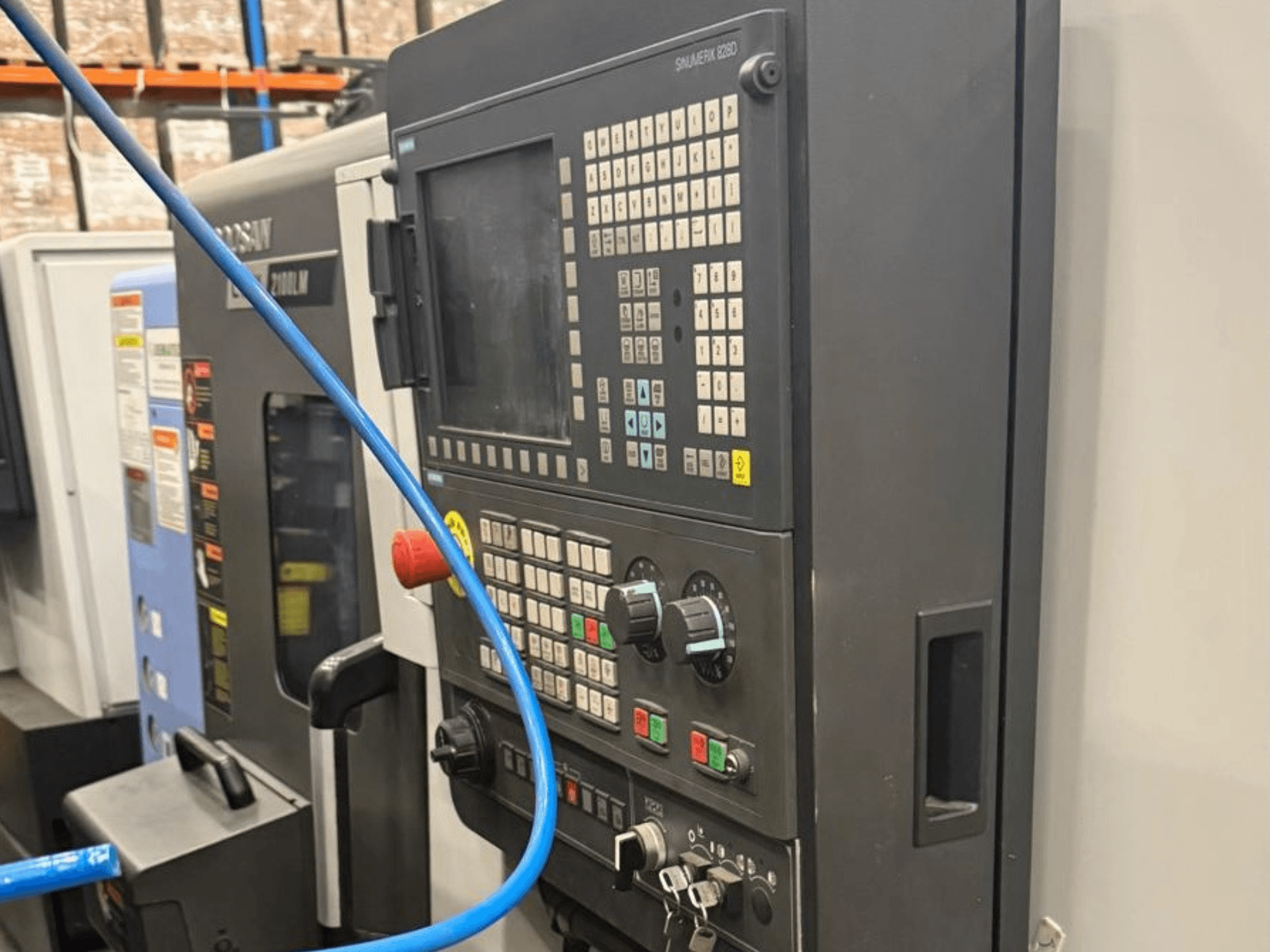

  • Control Model: SINUMERIK 828D

Dimensions

  • Machine Height: 1693 mm
  • Machine Length: 2540 mm
  • Machine Weight: 3480 kg

Movement

  • Number of Axes: 2
  • X-axis Travel: 205 mm
  • Z-axis Travel: 560 mm

Technical Specification

  • Driven Tools: Yes
  • Spindle Power: 15 kW
  • Spindle Speed: 6000 RPM

Additional Information

  • Chuck size: 6 inch

  • Maximum turning diameter: 300 mm

  • Maximum turning length: 510 mm

  • X-axis travel: rapid traverse: 30 m/min

  • Z-axis travel: rapid traverse: 36 m/min

  • Main spindle:

    • Maximum torque: 127 N·m

  • Turret:

    • Number of tool stations: 12

    • Rotary tool speed: 6000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
