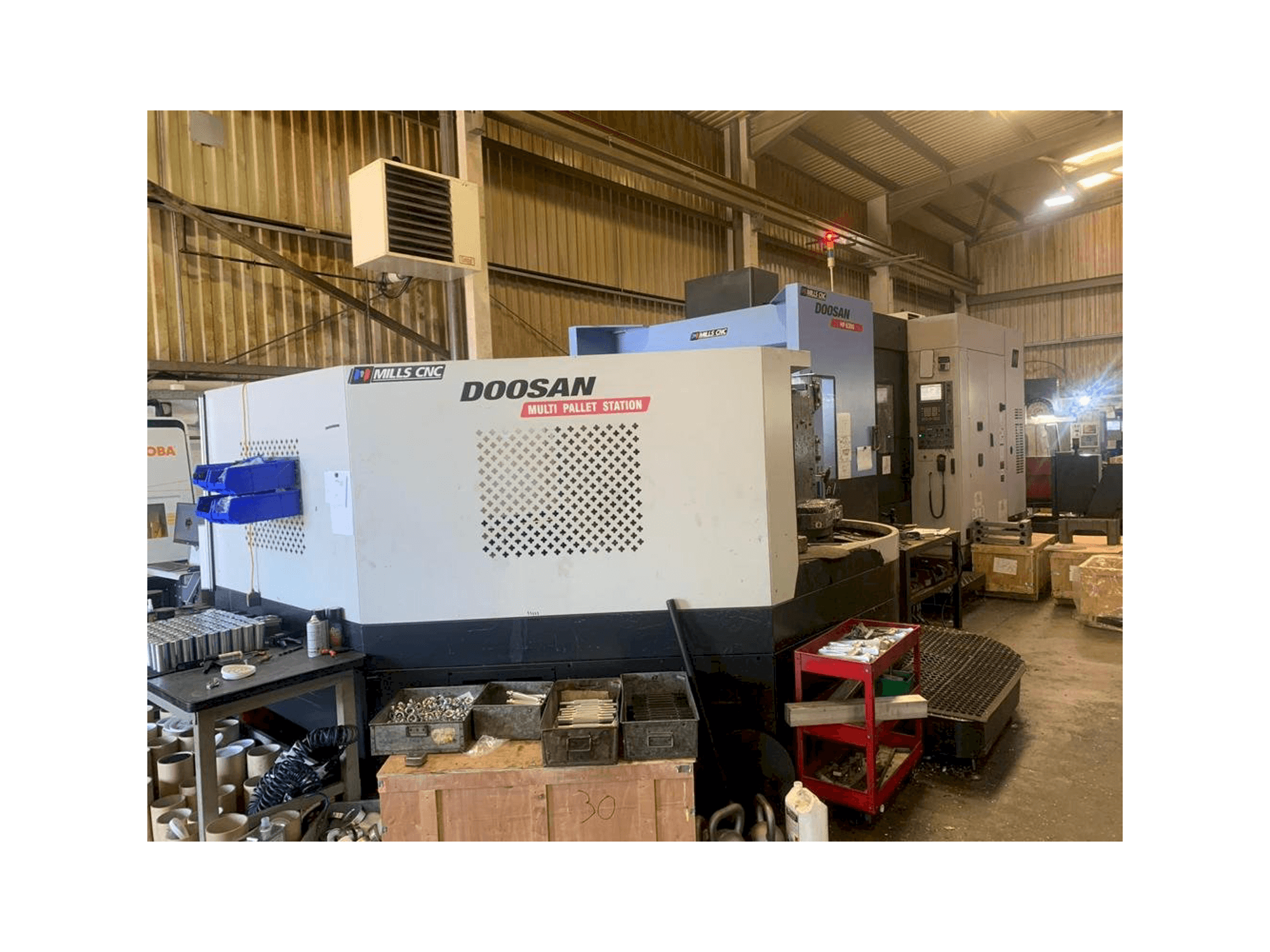

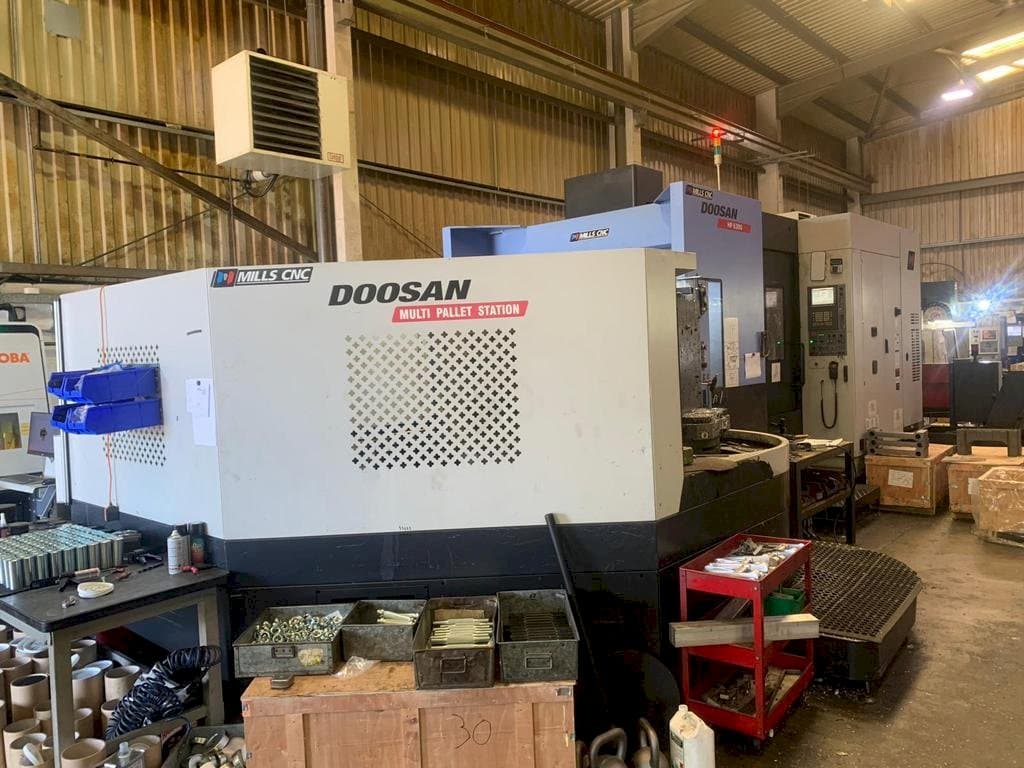

Doosan HP 6300 Horizontal Machining Center

Show in original language

This Doosan HP 6300 Horizontal Machining Center was made in the year 2012 in South Korea. This 4 axis machine operates through a FANUC 31i control unit. It has a spindle speed up to 12000 rpm. It includes 196 slots in storage, 7 pallets and manual book.

Overview

brand: DOOSAN
year: 2012
MODEL: HP 6300
application type: Milling
Location: United Kingdom
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN HP 6300

Control Unit

Control Brand: FANUC
Control Model: 31i

Dimensions

Machine Depth: 4820 mm
Machine Height: 3330 mm
Table Length: 630 mm
Table Width: 630 mm

Movement

Number of Axes: 4
X-axis Travel: 1000 mm
Y-axis Travel: 850 mm
Z-axis Travel: 850 mm

Technical Specification

Max. Tool Weight: 20 kg
Spindle Power: 30 kW
Spindle Speed: 12000 RPM
Through-spindle Coolant: Yes
Tool Stations: 196

Additional Information

Machine Benefits

Qualitative Machine Benefits

Simultaneous axis operation
Includes machine manual
Very good condition

Technical Machine Benefits

Number of pallets: 7
Cutting feedrate: 24 m/min
Rapid feedrates: 48 m/min
Distance between table centre to spindle nose: 150 - 1000 mm
Distance between table top to spindle centre: 75 - 925 mm
B axis movement: 0. 001 degree
Through spindle coolant
Swarf conveyor
Coolant
