➤ Used DOOSAN HM 8000 For Sale | gindumac.com

Show in original language

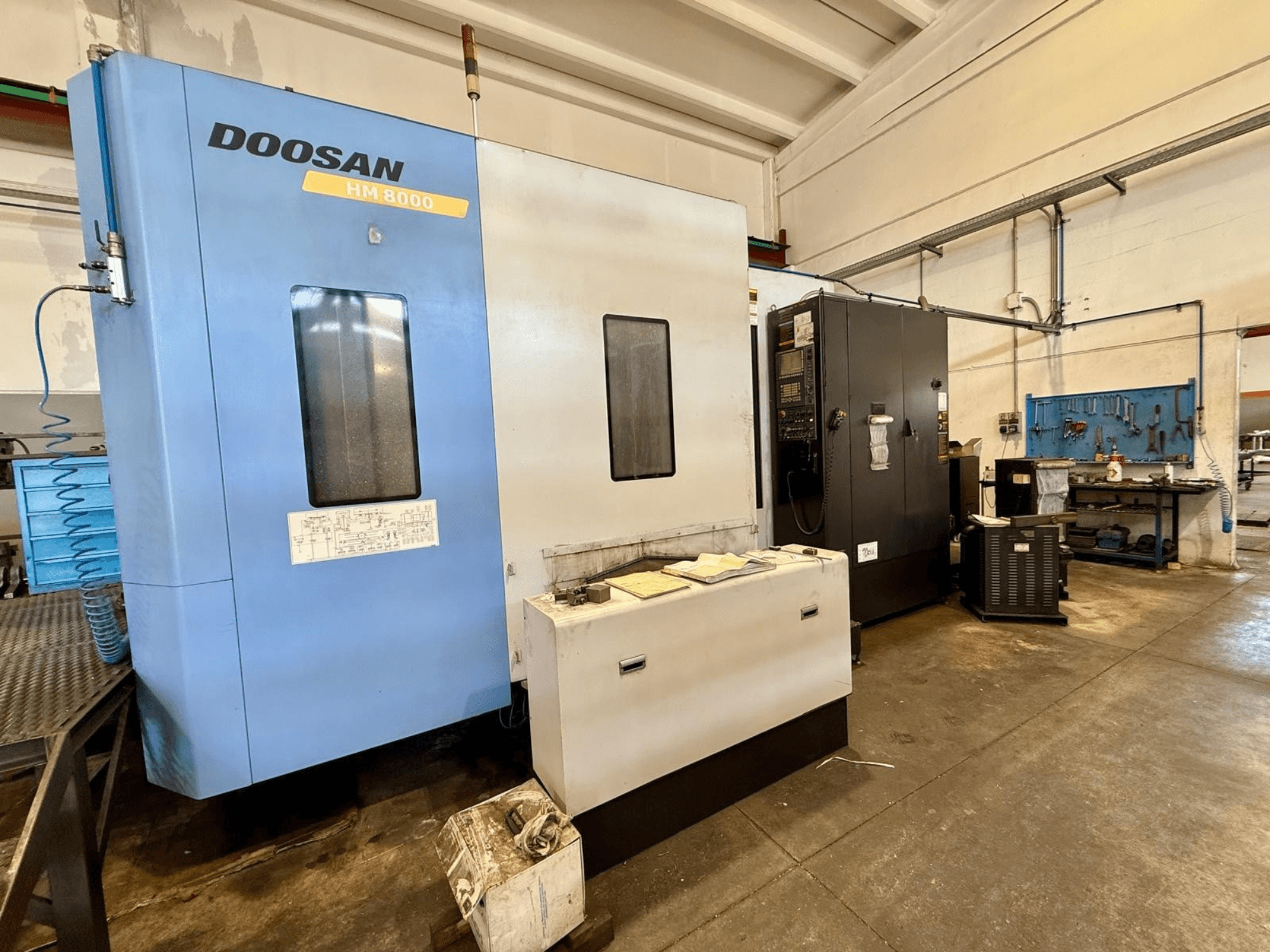

This 4-axis DOOSAN HM 8000 was manufactured in 2007. It features an impressive X/Y/Z axis travel of 1250 x 1000 x 1000 mm and a maximum load capacity of 1600 kg. The machine includes a tool magazine capacity of 90 positions and operates with a spindle speed of 20 - 6,000 RPM. If you are looking to get high-quality machining capabilities, consider the DOOSAN HM 8000 horizontal machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2007
MODEL: HM 8000
production hours: 29682
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN HM 8000

Control Unit

Control Brand: FANUC
Control Model: 31i MA

Dimensions

Machine Height: 3330 mm
Machine Length: 7060 mm
Machine Weight: 21000 kg
Machine Width: 4270 mm
Table Load: 1600 kg

Movement

Number of Axes: 3
X-axis Travel: 1250 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 1000 mm

Technical Specification

Max. Tool Weight: 25 kg
Spindle Power: 30 kW
Spindle Speed: 6000 RPM
Taper Size: ISO 50
Tool Stations: 90

Additional Information

Secondary HMI panel: Pro-face (magazine rotation)
Rapid feedrate (X/Y/Z): 24 / 24 / 24 m/min
Pallet/table size: 800 × 800 mm
Number of pallets: 2
Pallet indexing: 1°
Max. workpiece size: 1310 × H1200 mm
Tool magazine capacity: 90 positions (86 recorded on HMI tool search screen)
Max. tool diameter: 135 mm (with adjacent tool), 250 mm (without adjacent tool)
Max. tool length: 550 mm
Coolant through spindle: High-pressure
Operating hours (from CNC): Power on 70,190 h 16 m; Operating 29,682 h 18 m; Cutting 17,937 h 26 m
Recent maintenance/overhauls: Pallet changer, spindle line, tool changer, and auger motors recently overhauled

Additional equipment

Chip conveyor
Coolant circuit filtration system with belt-type oil skimmer
BUTTI chip collection bin

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
