DOOSAN DNM 750L
DOOSAN - DNM 750L
2011
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Doosan DNM 750L Vertical Machining Center.

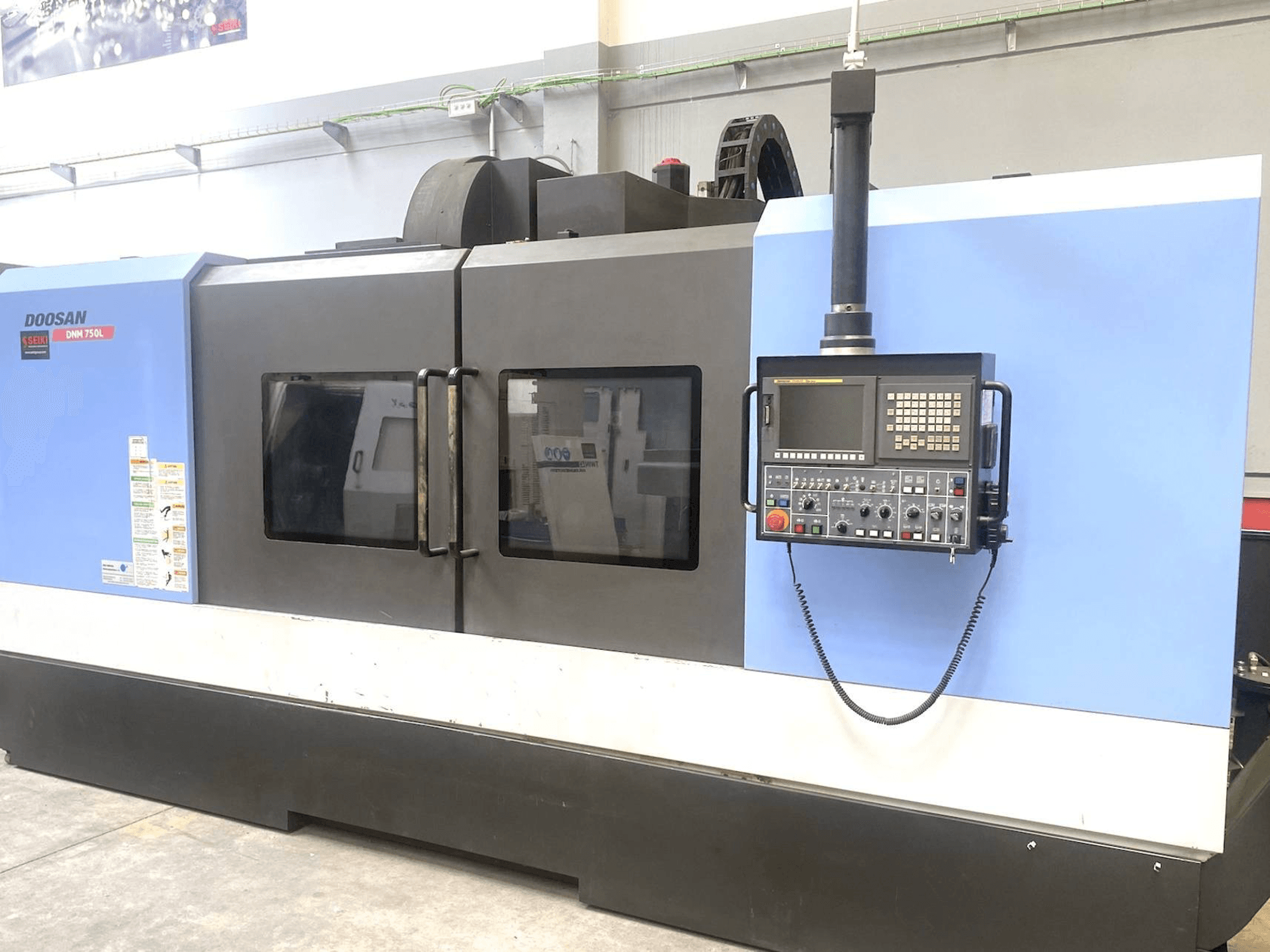

This Doosan DNM 750L Vertical Machining Center was manufactured in Korea in 2008. This 3 axis machine is operated with a FANUC i-Series control unit. It incorporates a spindle speed up to 12000 rpm and spindle hours of only 2.840 h. This machine includes its manual books.
Overview
- brand: DOOSAN
- year: 2011
- MODEL: DNM 750L
- production hours: 2840
- application type: Milling
- Location: Spain
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Fanuc
- GINDUMAC ID: ES-MIL-DOO-2011-00002
Technical Information
General Data
- Measurements width: 3480 mm
- Measurements depth: 4900 mm
- Measurements height: 3170 mm
- Machine weight: 15000 kg
Control Unit
- Brand: Fanuc
- Model: i-Series
Main drive
- Spindle speed range: 12000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 2160 mm
- Y-AXIS Movement: 762 mm
- Z-AXIS Movement: 650 mm
Workpiece
- Workpiece weight: 1800 kg
Table
- Outer length: 2160 mm
- Outer width: 760 mm
Tools
- Slots in storage: 30
- Max weight: 8 kg
- Max tool length: 300 mm
- Type of tool holder: ISO-40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Internal cooling
- - X = 2160 mm
- Qualitative Machine Benefits:
- - Spindle hours 2. 840 h
- - Good status
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
