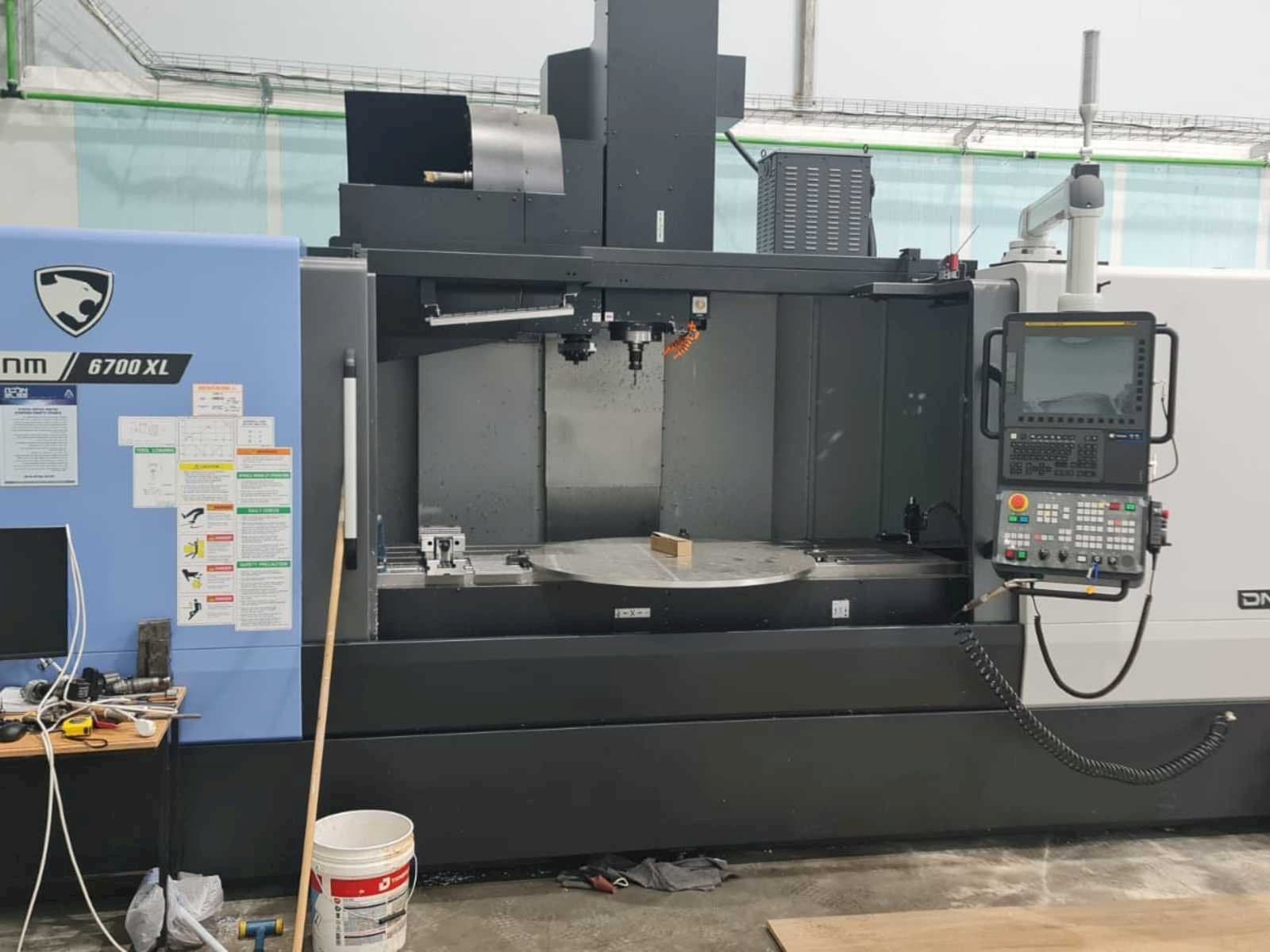

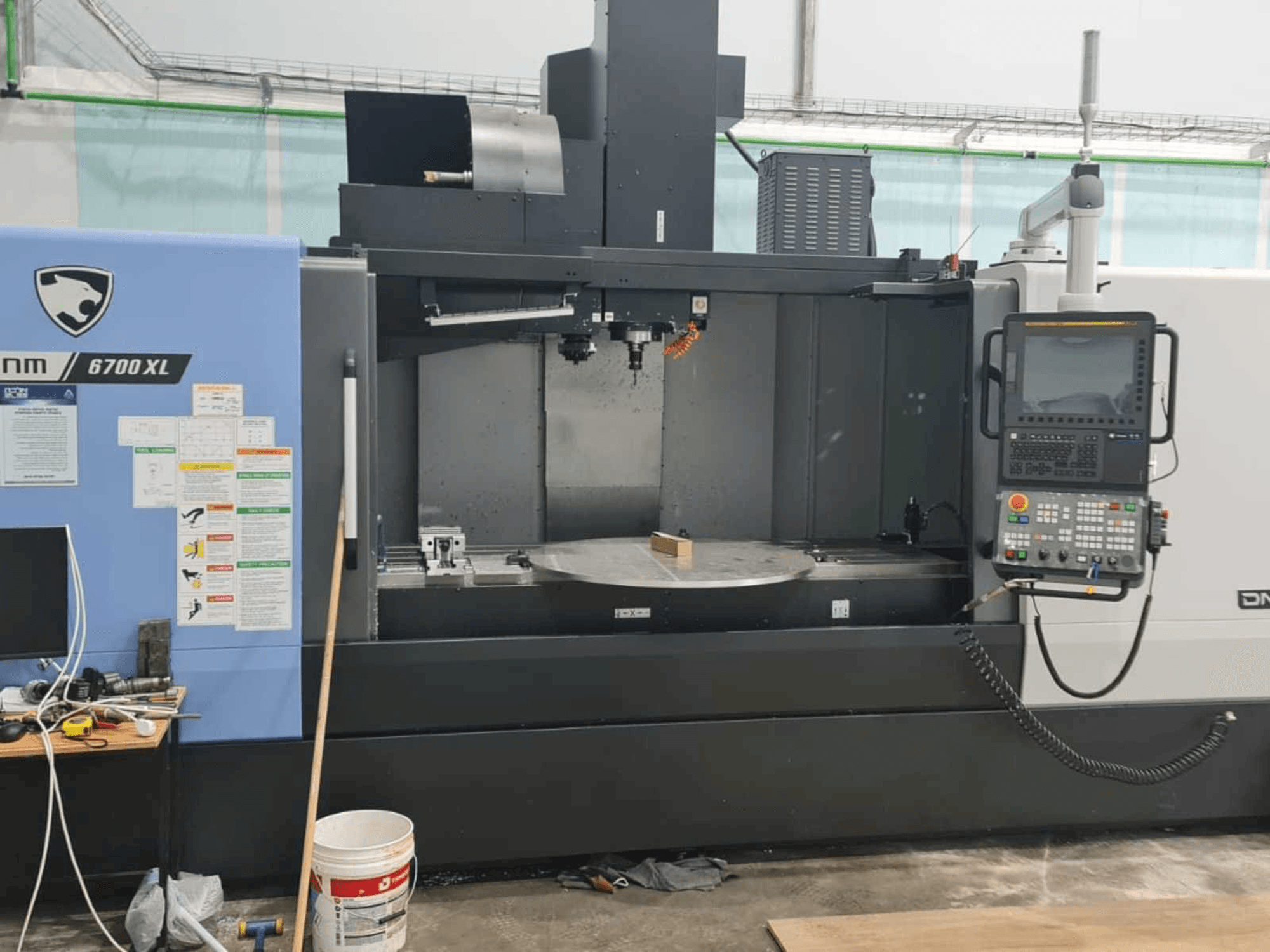

Front view of Doosan DNM 6700 XL  machine

DOOSAN - DNM 6700 XLIL-MIL-DOO-2023-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Doosan DNM 6700 XL Vertical Machining Center was manufactured in the year 2023 in Korea. It is equipped with a FANUC Series 0i Plus control unit. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: DOOSAN
  • year: 2023
  • MODEL: DNM 6700 XL
  • application type: Milling
  • Location: Israel
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: FANUC

Technical Information - DOOSAN DNM 6700 XL

General Data

  • Measurements width: 4800 mm
  • Measurements depth: 2970 mm
  • Measurements height: 3120 mm
  • Machine weight: 10000 kg

Control Unit

  • Brand: FANUC
  • Model: Series 0i Plus

Main drive

  • Spindle speed range: 12000 1/MIN

Movement

  • X-AXIS Movement: 2100 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 670 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 625 mm
  • Z-AXIS Rapid traverse: 30 m/min

Tools

  • Max weight: 8 kg
  • Max tool diameter: 80-125 mm
  • Max tool length: 300 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Table surface : t‐slot (5‐125 x 18h8) mm
      • - Table size: 2200x 670 mm
      • - Max. Workpiece height : 700 mm
      • - Max. Workpiece weight 1300 kg
      • - Spindle to table surface 150 ~ 775 mm
      • - Power (cont. / short) 11/18. 5 kw
      • - Max. Torque (short term) 117. 8 (s3 25%) nm
      • - Tool shank: mas403 bt 40
      • - Tool storage capacity: 30
      • - Cartiridge capacity: l 0. 7
    • Qualitative Machine Benefits:
      • - Pump motor power: 0. 024 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
