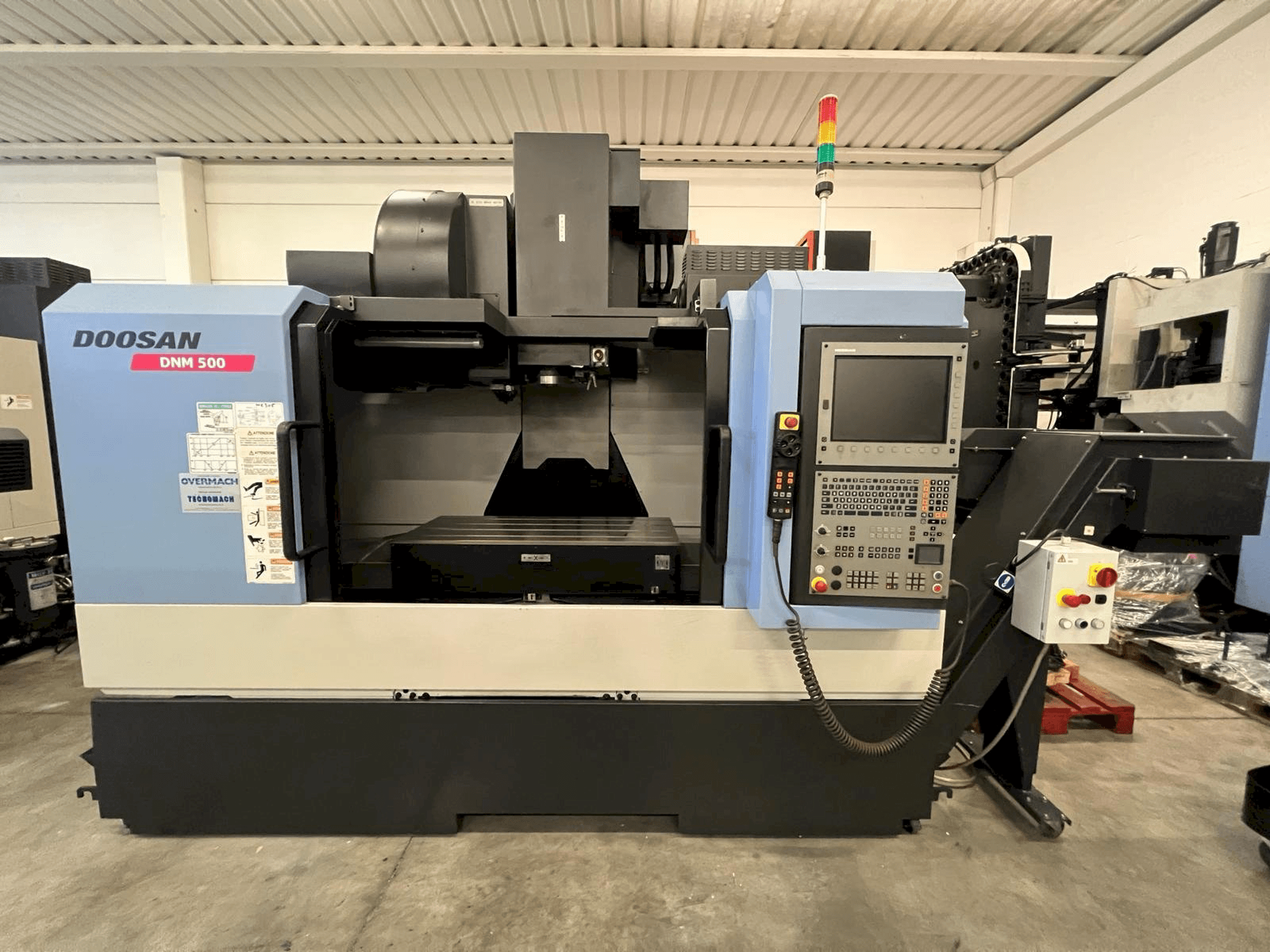

Front view of DOOSAN DNM 500 machine
Front view of DOOSAN DNM 500 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DOOSAN - DNM 500IT-MIL-DOO-2012-00002

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DOOSAN DNM 500 Vertical Machining Centre was manufactured in 2012 in South Korea. It is equipped with a HEIDENHAIN iTNC 530 control and internal cooling - IKZ - 18 bar. This 4 axis machining centre has a ISO 40 spindle with 12,000 rpm and 18kW motor power. It comes with presetting, chip conveyor and a 30 tool magazine. The table size is 1200 x 540 mm.

Overview

  • brand: DOOSAN
  • year: 2012
  • MODEL: DNM 500
  • production hours: 13558
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: HEIDENHAIN

Technical Information - DOOSAN DNM 500

General Data

  • Machine weight: 6500 kg

Control Unit

  • Model: iTNC 530
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 18 kW
  • Tool taper: ISO 40

Movement

  • X-AXIS Movement: 1020 MM
  • Y-AXIS Movement: 540 MM
  • Z-AXIS Movement: 510 MM

Table

  • Outer length: 1200 mm
  • Outer width: 540 mm

Tools

  • Slots in storage: 30

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes
  • Cooling pressure: 18 bar

    Additional equipment

    • - Internal Cooling - IKZ 18 bar
    • - Chip Conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Number of tools places in magazine: 30
        • - Presetting: yes

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Alessandro Martini

    Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
