Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DOOSAN - DBC 130L IIKR-BOR-DOO-2014-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Doosan DBC 130L II - Boring Machine For Sale

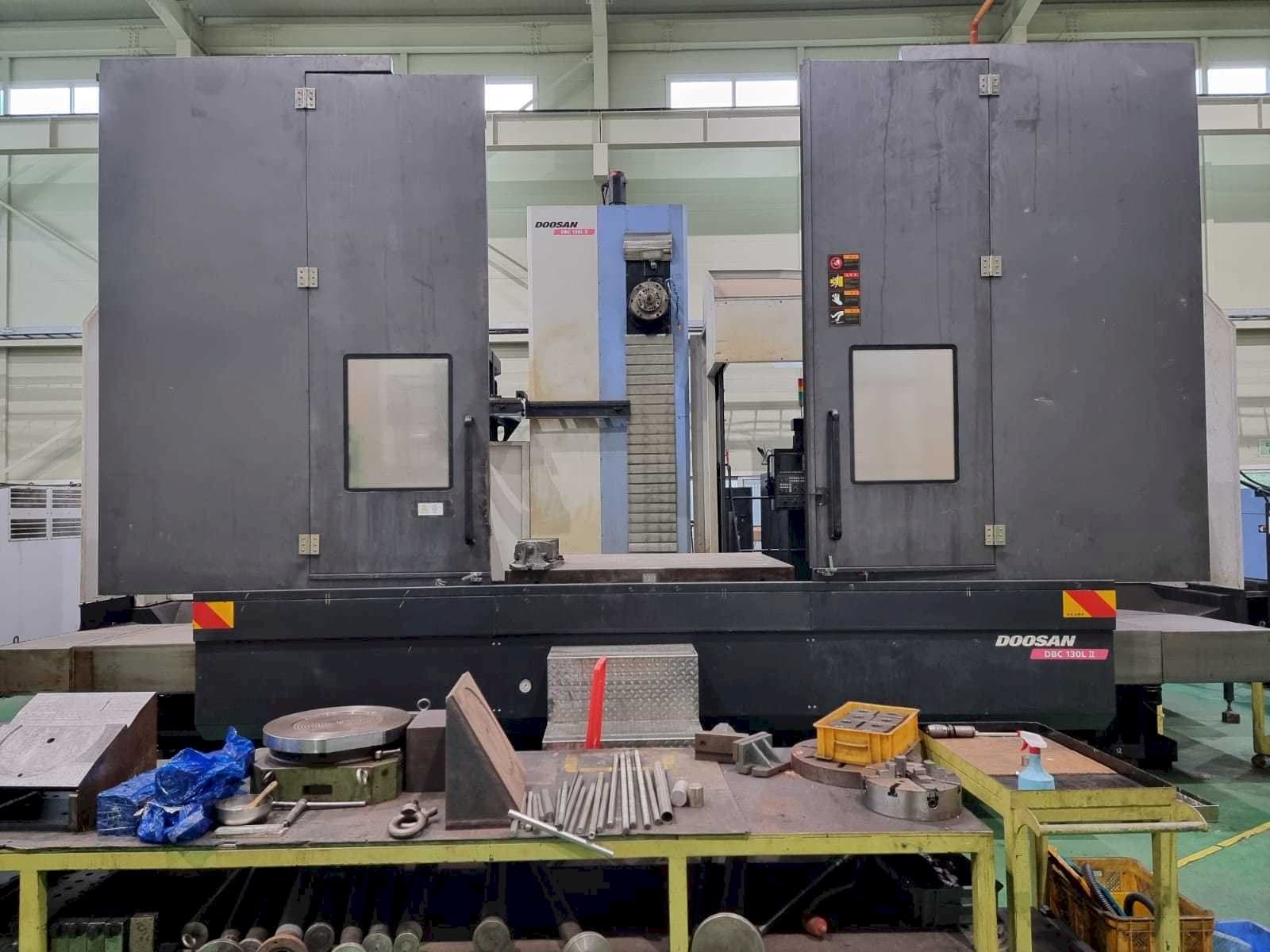

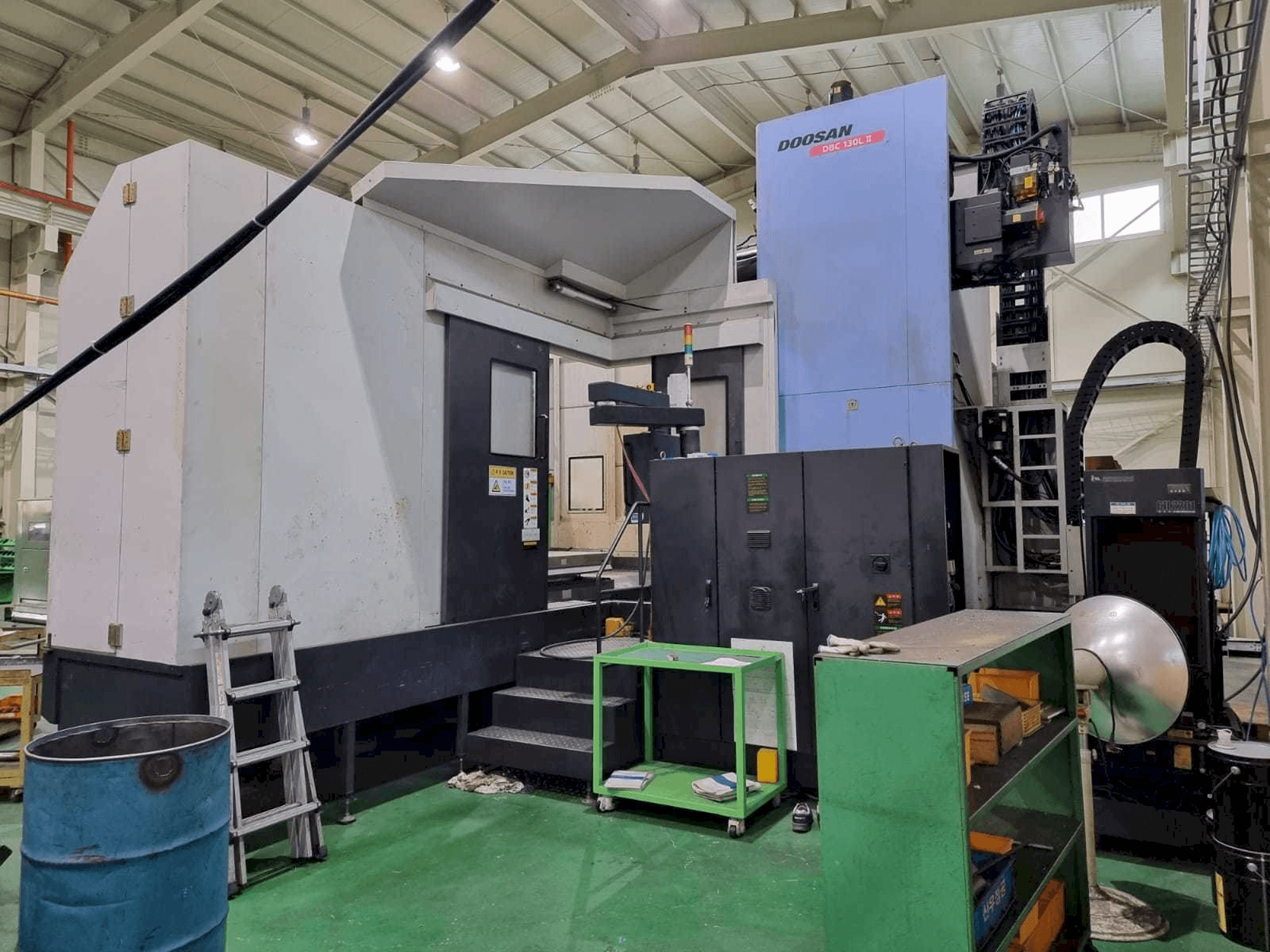

This Doosan DBC 130L II Boring machine was made in the year 2014. It has been power on for 10630 hours, of which 2827 are cutting hours. This 5 axis machine is operated through a FANUC Series 31i-MODEL B control unit. It can works with a spindle speed up to 3000 rpm. It comes with a table dimensions 1600 x 1800 mm, a BOX guideway type and manual books.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: DBC 130L II
- production hours: 2827
- application type: Other Machine Tools
- Location: South Korea
- machine type: Boring Machine (Metal)
- control unit brand: FANUC
Technical Information - DOOSAN DBC 130L II
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i-MODEL B
Dimensions
- Table Length: 1600 mm
- Table Width: 1800 mm
Movement
- Number of Axes: 5
- X-axis Travel: 4000 mm
- Y-axis Travel: 2500 mm
- Z-axis Travel: 2000 mm
Technical Specification
- Spindle Speed: 3000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Mpg handle
- Manual books
Technical Machine Benefits
- Tsc 20 bar
- Tools: 30 ea
- Spindle 2 step gear type
- Magazine capacity: 40 ea
- Linear scale (x, y, z, b axis)
- Full cover
- Box guideway type
- Chip bucket
- Oil skimmer
- Call light (led 3 step)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
