DOOSAN 3100L

Photo Gallery

SOLD

DOOSAN - 3100L

2013

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

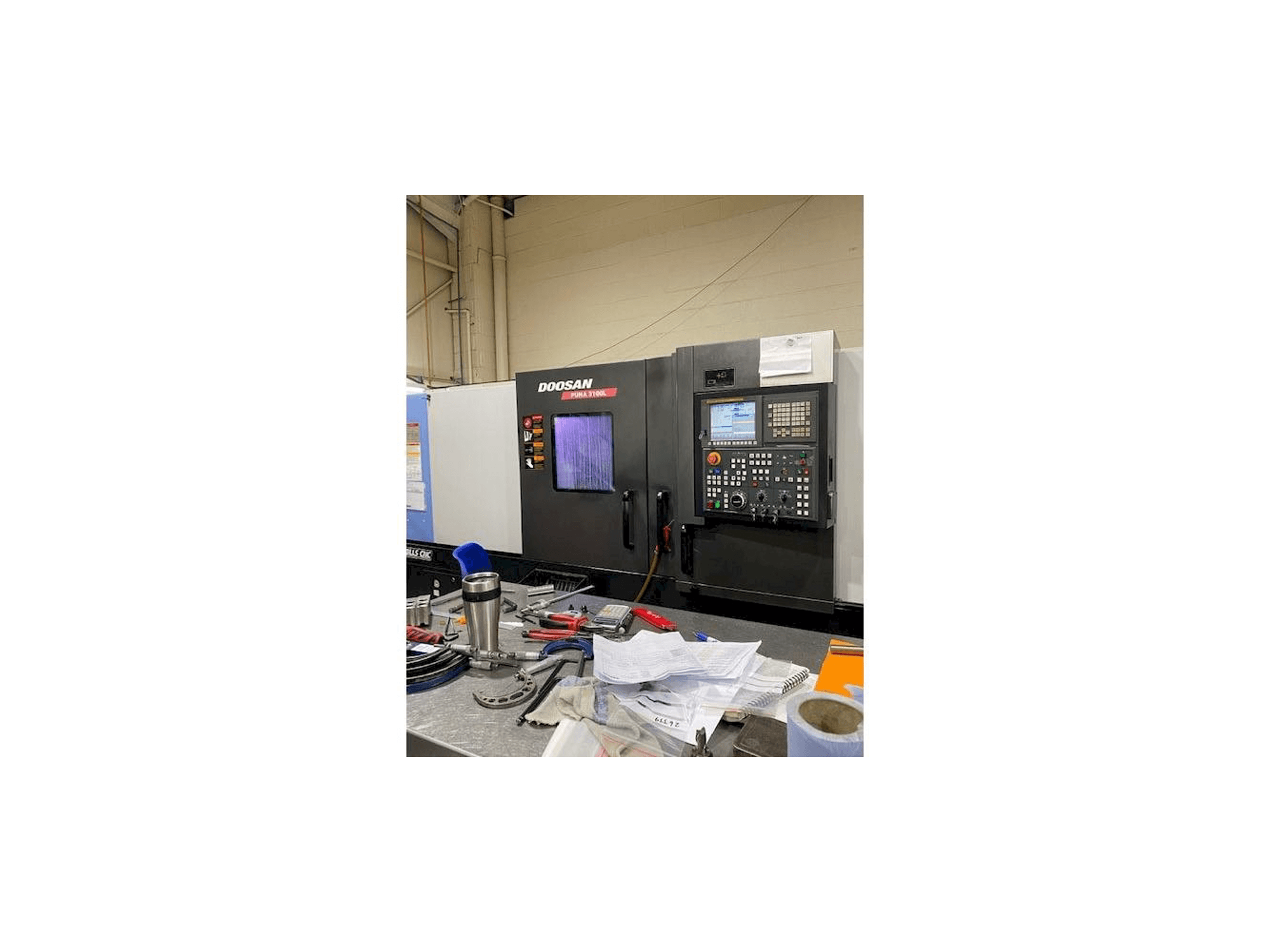

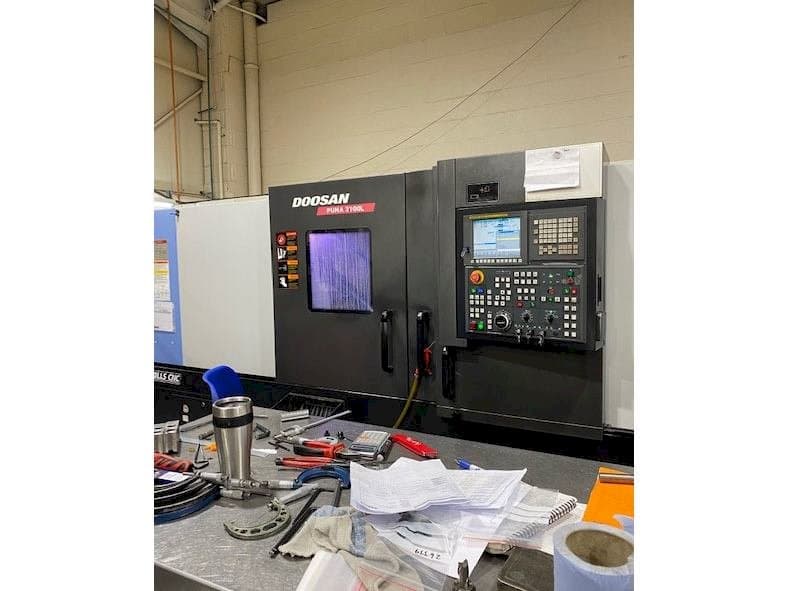

Doosan Puma 3100L Lathe

Show in original language

This Doosan Puma 3100L Lathe was made in 2013 in the United States. It is equipped with a FANUC i Series with iGuide control unit and has 2 axis. The machine has a spindle speed of 2800 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2013
MODEL: 3100L
application type: Turning
Location: United Kingdom
machine type: Lathe
availability: Sold
control unit brand: FANUC
GINDUMAC ID: GB-TUR-DOO-2013-00001

Technical Information

General Data

Measurements width: 5599 mm
Measurements depth: 2067 mm
Measurements height: 2010 mm
Machine weight: 7350 kg

Control Unit

Brand: FANUC
Model: i Series with iGuide

Main drive

Number of spindles: 1
Spindle speed range: 2800 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 293 mm
Z-AXIS Movement: 1350 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 10

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 850 mm
- - Swing over the cross-slide: 670mm
- - Maximum cutting diameter: 525 mm
- - Maximum cutting length: 1310mm
- - Spindle motor power: 22/18. 5kw
- - Spindle nose: a2-11
- - Bar capacity: 102mm
- - Rapid feedrates: xz: 30m/minute
- - 3tailstock quill diameter 100mm, mt #5
- - Swarf conveyor, tool setter, 3 jaw chuck, tooling, coolant, interlocked guards, low volt light
Qualitative Machine Benefits:
- - Very good condition!
- - Chuck diameter: 300mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
