➤ Used DOOSAN Lynx 235II - Lathe For sale | gindumac.com

Show in original language

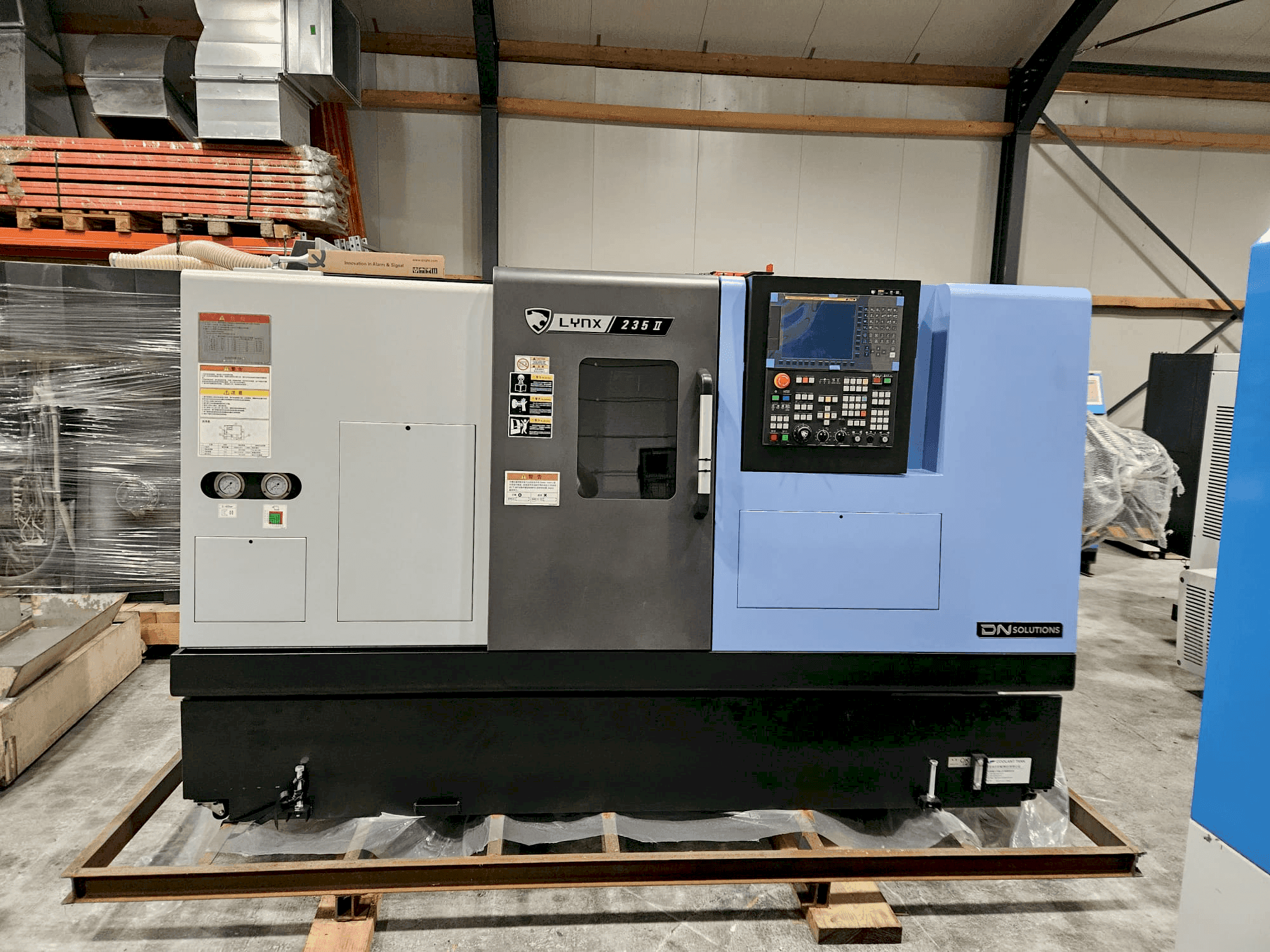

This DOOSAN Lynx 235II lathe was manufactured in 2024. It features a maximum turning diameter of 320 mm and a length of 525 mm, with a bar working diameter of 65 mm. The spindle supports a maximum speed of 4,000 rpm, ensuring efficient machining. Equipped with a 12-station turret and rapid traverses of 30 m/min (X-axis) and 36 m/min (Z-axis), this machine manufactured by DN Solutions (formerly DOOSAN MACHINE TOOLS), offers robust performance for precise operations. For more information about this lathe, please reach out to us.

Overview

brand: DOOSAN
year: 2024
MODEL: Lynx 235II
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 235II

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Depth: 2795 mm
Machine Height: 1650 mm
Machine Weight: 3500 kg

Movement

Number of Axes: 2
X-axis Travel: 175 mm
Y-axis Travel: 550 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 4000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Maximum turning diameter: 320 mm / maximum turning length: 525 mm
Recommended turning diameter: 210 mm
Bar working diameter: 65 mm
Spindle nose: asa a2#6
Spindle bearing diameter (front/rear): 110 mm / 100 mm
Spindle through bore: 76 mm
Max. Spindle torque: 176. 7 nm
Od tool size: 25 × 25 mm
Turret index time: 0. 15 s
Top trips: 80 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
