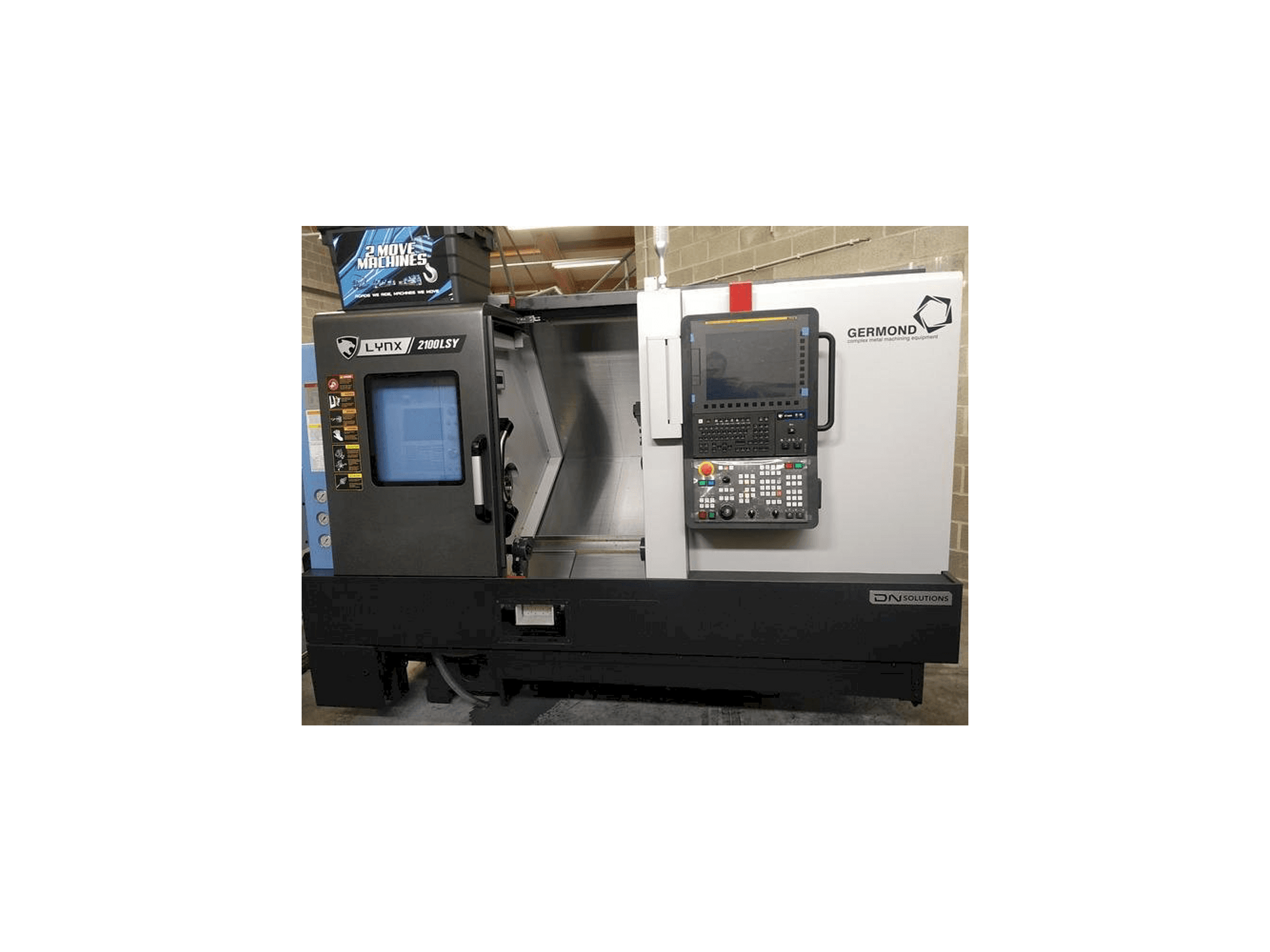

Front view of DN SOLUTIONS LYNX 2100 LSYB machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DN SOLUTIONS LYNX 2100 LSYB

DN SOLUTIONS - LYNX 2100 LSYBBE-TUR-DN -2022-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DN SOLUTIONS LYNX 2100 LSYB Lathe

Show in original language

This DN SOLUTIONS LYNX 2100 LSYB Lathe was built in the year 2022 in Korea. It is equipped with a Fanuc iSeries control unit. The machine has a main spindle speed of 4500 rpm and a sub-spindle speed of 6000 rpm.

Overview

brand: DN SOLUTIONS
year: 2022
MODEL: LYNX 2100 LSYB
application type: Turning
Location: Belgium
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DN SOLUTIONS LYNX 2100 LSYB

General Data

Measurements width: 1701 mm
Measurements depth: 2870 mm
Measurements height: 1930 mm
Machine weight: 4200 kg

Control Unit

Model: iSeries
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 15 kw
Spindle bore: 76 mm

Movement

X-AXIS Rapid traverse: 30 m/min
Y-AXIS Rapid traverse: 394 ipm
Z-AXIS Rapid traverse: 36 m/min

Tools

Number of stations: 12
Type of tool holder: BMT-45

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 169 nm
- - Spin axis contour torque 169nm
- - Sub spindle: 6000 rpm, 5. 5 kw power
- - Guideway type: linear
- - Swing over bed: 600 mm
- - Bar capacity: 67 mm
- - Max turn diameter: 300 mm
- - Max turn length: 510 mm
- - Main spindle max chuck: 254 mm
- - Main spindle std chuck: 203. 2 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
