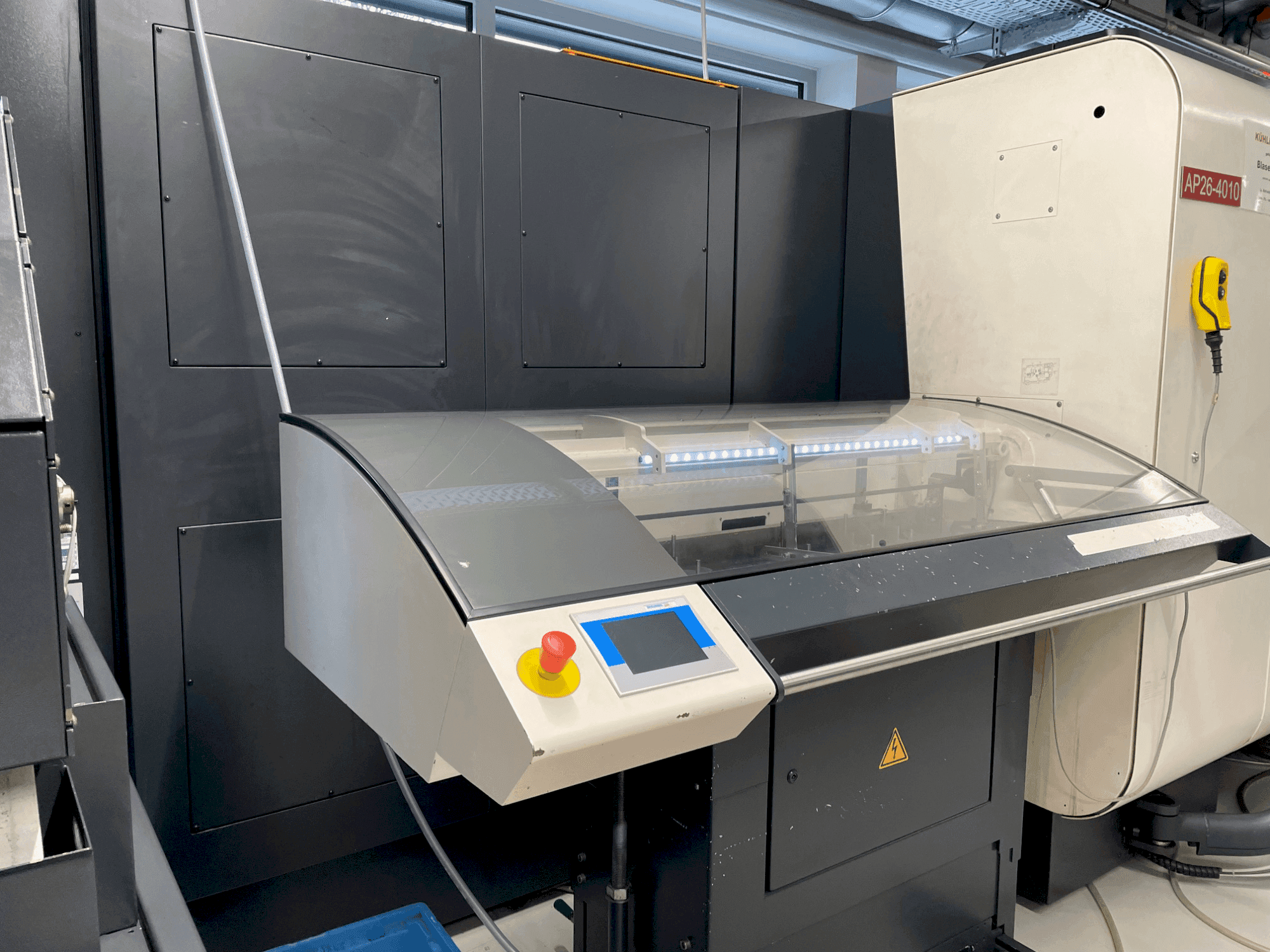

Front view of DMG Sprint 65 3 T  machine

DMG Sprint 65 3 T

DMG - Sprint 65 3 T

2015

Rs. 21,349,200

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This lathe was manufactured in 2015 by DMG, Sprint 65 3 T model. The machine represents a reliable and versatile addition to your production line. If you're interested in buying this DMG Sprint 65 3 T lathe, reach out for further details.

Overview

  • brand: DMG
  • year: 2015
  • MODEL: Sprint 65 3 T
  • application type: Turning
  • Location: Austria
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: AT-TUR-DMG-2015-00001

Technical Information

General Data

  • Measurements width: 6870 MM
  • Measurements depth: 1660 MM
  • Measurements height: 2626 MM
  • Machine weight: 10300 KG

Control Unit

  • Brand: SIEMENS
  • Model: 840D-SL

Main drive

  • Number of spindles: 2
  • Spindle speed range: 12000 1/MIN
  • Number of axis: 10

Movement

  • X-AXIS Movement: 165 mm
  • X-AXIS Working Feed: 30 m/min
  • Y-AXIS Movement: +-40 mm
  • Y-AXIS Working Feed: 30 m/min
  • Z-AXIS Movement: 300mm
  • Z-AXIS Working Feed: 40 m/min
  • V-Axis Movement: 165mm
  • V-Axis Working Feed: 30 m/mm
  • U-Axis Movement: +-40 mm
  • U-Axis Working Feed: 15 m/min
  • W-Axis Movement: 640 mm
  • W-Axis Working Feed: 40 m/min
  • A-AXIS Movement: 640mm
  • A-AXIS Working Feed: 40 m/min
  • B-AXIS Movement: 165 mm
  • B-AXIS Working Feed: 30 m/min
  • C-AXIS Movement: +- 40 mm
  • C-AXIS Working Feed: 15m/min
  • I-AXIS Movement: 420mm
  • I-AXIS Working Feed: 40 m/min

Tools

  • Slots in storage: 12
  • Type of tool holder: VDI 30

Media

  • Lubrication tank: 1.8 litres

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Chip conveyor: 1800x1300x1500mm, 380kg
      • - Maximum bar capacity: 65mm
      • - Drawtube bore: 76mm
      • - Diameter of collet chuck: 160mm
      • - Diameter of centring chuck: 175mm
      • - Maximum speed: 5000mm
      • - Nominal torque: 150 nm, 16rpm
      • - Coolant system: 200 litres

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
