➤ Used DMG Mori Seiki NL2500SY/700 For Sale | gindumac.com

Show in original language

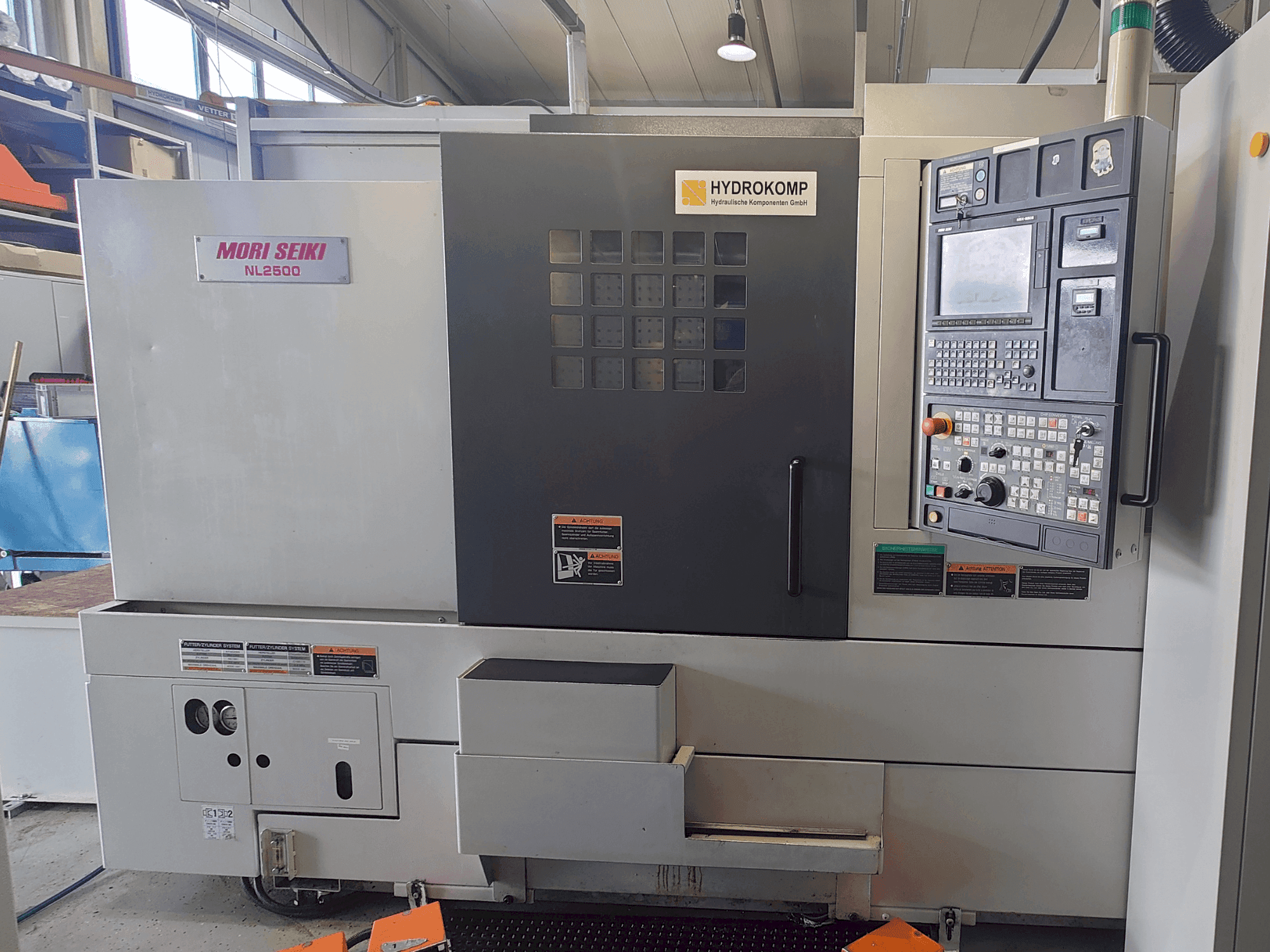

This 5-axis DMG Mori Seiki NL2500SY/700 was manufactured in 2008, featuring a swing diameter over bed of 923.8 mm and a maximum turning diameter of 366 mm. It offers a rapid traverse rate of 30,000 mm/min for X/Z/B axes and a main spindle speed up to 4,000 min⁻¹. Ideal for complex turning tasks, consider the opportunity to buy this DMG Mori Seiki NL2500SY/700 turn-mill center. Contact us for more information about this machine.

Overview

brand: DMG Mori Seiki
year: 2008
MODEL: NL2500SY/700
production hours: 12517
application type: Turning
Location: Germany
machine type: Turn-Mill Centre

Technical Information - DMG Mori Seiki NL2500SY/700

Dimensions

Machine Depth: 3100 mm
Machine Height: 2120 mm
Machine Weight: 6200 kg

Movement

Number of Axes: 5
X-axis Travel: 260 mm
Y-axis Travel: 100 mm
Z-axis Travel: 795 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Max. Bar diameter: 80 mm
Max. Turning diameter: 366 mm
Standard turning diameter: 271 mm
Max. Turning length: 705 mm
Sub-spindle max. Bar diameter: 80 mm
Sub-spindle bore: 43 mm (standard), 73 mm (option)
Drive power: x = 3. 5 kw, z = 3. 5 kw, y = 3. 5 kw, b = 2. 0 kw
Coolant tank: 246 l
Connected load: 39. 4 kva

Extra Information

Turning tool shank: 25 x 25 mm Max. boring bar diameter: 50 mm (spindle 1) / 32 mm (spindle 2) Indexing time: 0.25 s Driven tool shank dia.: 26 mm Max. driven tool speed: 6000 min⁻¹ Driven tool motor: 5.5 / 5.5 / 3.7 kW (3min/5min/continuous)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
