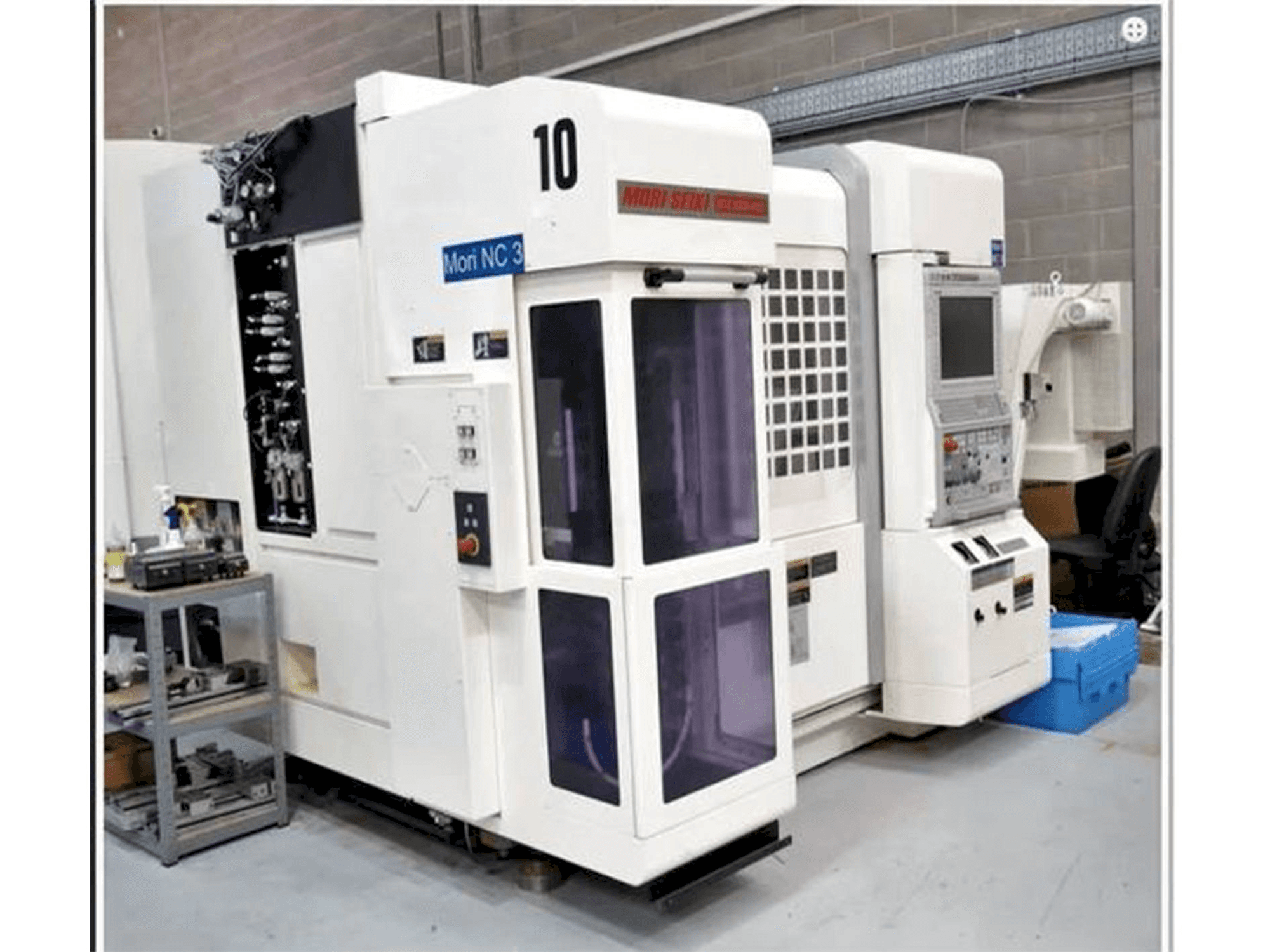

Front view of DMG MORI NTX1000 HSC SZM machine
Front view of DMG MORI NTX1000 HSC SZM machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DMG MORI - NTX1000 HSC WMZGB-TUR-DMG-2012-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG Mori NTX1000 HSC WMZ Lathe machine was manufactured in the year 2012 in United Kingdom. This machine works with a spindle speed up to 2000 rpm. It counts with an ATC 10 station turret and a tool spindle taper Capto C5.

Overview

  • brand: DMG MORI
  • year: 2012
  • MODEL: NTX1000 HSC WMZ
  • application type: Turning
  • Location: United Kingdom
  • machine type: Turn-Mill Centre

Technical Information - DMG MORI NTX1000 HSC WMZ

Main drive

  • Spindle speed range: 6000 - 20000 1/MIN
  • Spindle motor power: 11 kW
  • Tool taper: Capto C5

Movement

  • X-AXIS Movement: 380 mm
  • Y-AXIS Movement: 105 mm
  • Z-AXIS Movement: 460 mm
  • A-AXIS Movement: 825 mm
  • B-AXIS Movement: 120° MM

Workpiece

  • Workpiece drm: 370 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Swing over cross slide Ø370mm.
      • - Swing over bw axis Ø840mm.
      • - Max turning length 424mm.
      • - Max bar capacity Ø52mm.
      • - 'x2'=155mm(turret), 'z2'=610mm(turret).
      • - Through spindle bore Ø61mm.
      • - Max speed of work discharge unit 1,000rpm.
      • - 38 tool
      • - Atc. 10 station turret.
      • - Rapid traverse 'x' & 'y' 40m/min, 'z'=50m/min.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
