DMG MORI NTX 2000 milling and turning machine

Show in original language

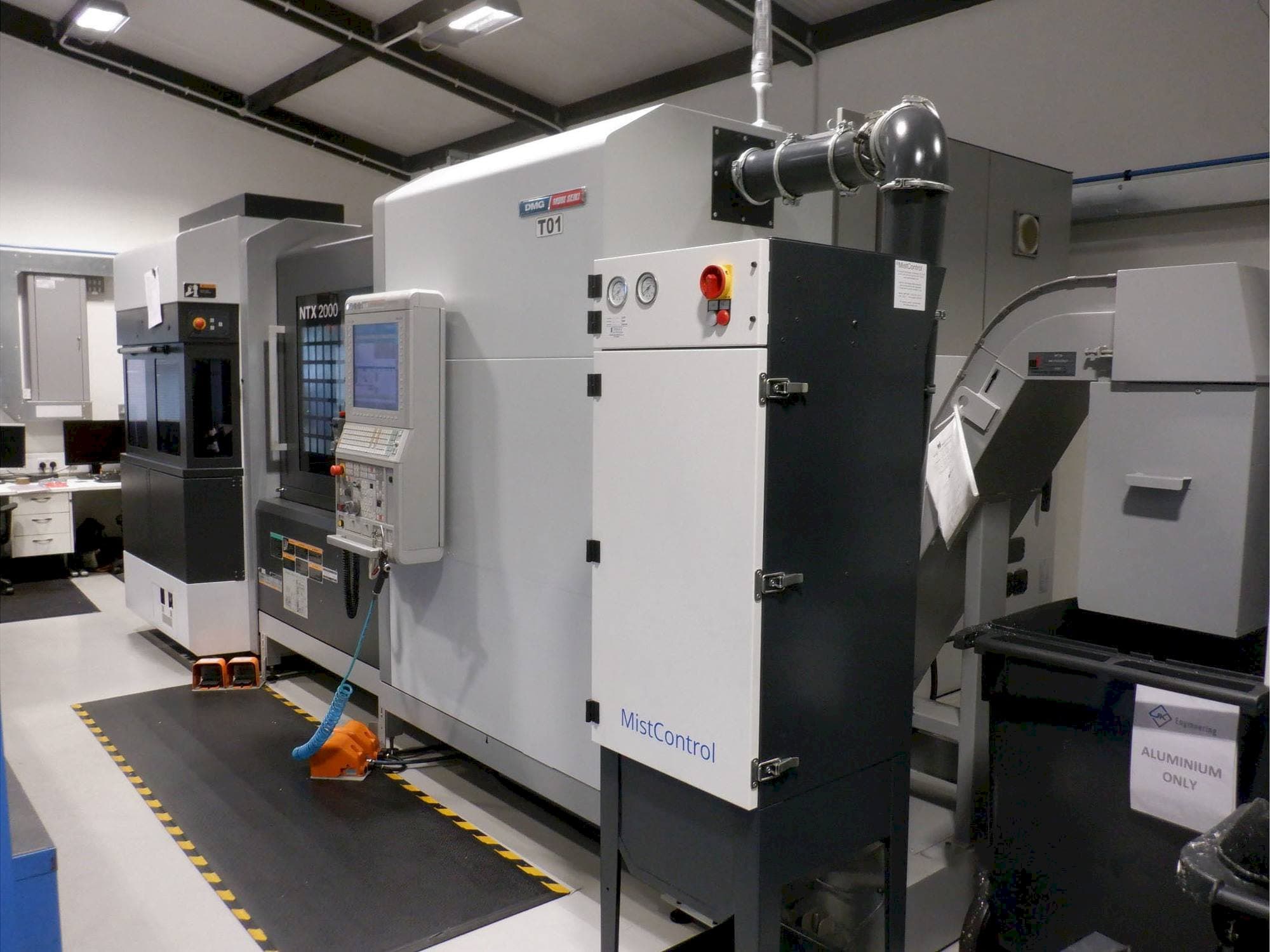

This DMG MORI NTX 2000 milling and turning machine was manufactured in Japan in the year 2013. This machine has been working for 8450 hours. It is operated with a F31iB5 control unit. This machine can perform with a milling spindle speed up to 12000 rpm, and a main and second turning spindle speed up to 5000 rpm. This NTX2000 also has a large working range with a maximum turning diameter up to 610mm and maximum turning length of 1,500mm you can machine both round and square material quickly and accurately.

Overview

brand: DMG MORI
year: 2013
MODEL: NTX 2000
production hours: 8450
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre

Technical Information - DMG MORI NTX 2000

Control Unit

Model: F31iB5

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 18.5/11 kW (10 mins / cont.)

Movement

X-AXIS Movement: 495 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 1500 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle tool taper: capto c6
Tool magazine: 76 tools
Spindle measuring probe: renishaw omp400
Max. Turning dia (mm): 610mm dia
Max turning length (mm): 1,540mm
Turning main and second spindle speed: 5000 rpm
Main spindle bore: 65mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
