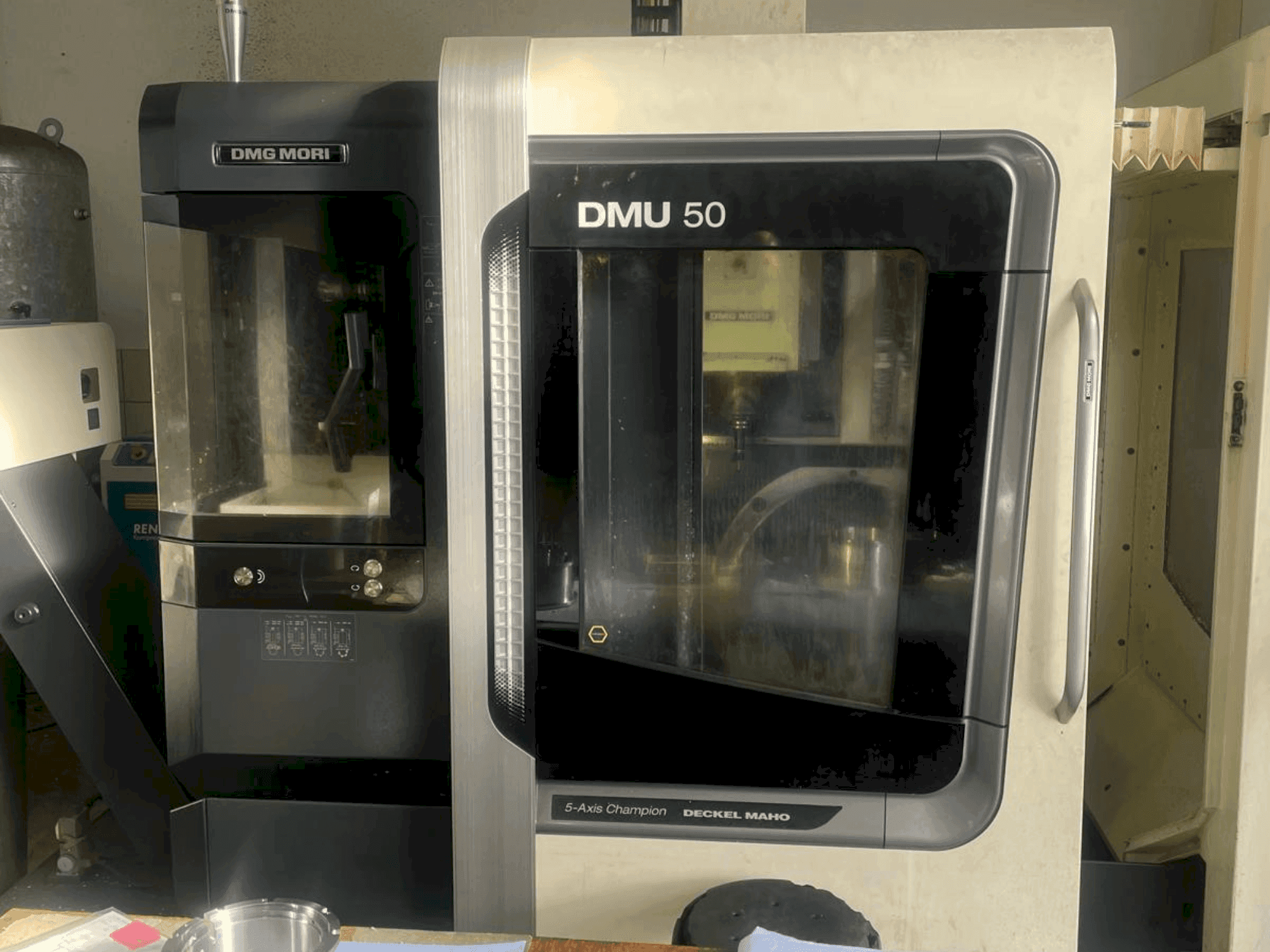

This 5-axis DMG MORI DMU 50 was manufactured in 2016, featuring a robust design with a travel range of X/Y/Z 500/450/400 mm and a rapid traverse of 30 m/min. It operates at speeds from 20 to 14,000 rpm with an inline spindle power of 20.3 kW. The machine includes a 60-position SK40 tool magazine, swivel rotary table for simultaneous machining, and a Heidenhain iTNC 530 HSCi control system. Contact us for more information about this machine.
Overview
- brand: DMG MORI
- year: 2016
- MODEL: DMU 50
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMU 50
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530 HSCi
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 14000 RPM
Additional Information
Rapid traverse: 30 m/min
Swivel rotary table with simultaneous machining capability
Clamping surface: diameter 630 x 500 mm
Swivel range: -5 to +110°, 360° rotary axis
Tool clamping: according to din 69872
60-position sk40 tool magazine
Vertical chain with double gripper including tool loading setup aid
Total installed rated power: 10. 0 kw
Installed net power: 7. 3 kw
Control voltage: 24 v dc
Ball screw and bearing need to be changed. Official DMG offer available.
Flushing gun for chip flushing
Coolant/air blast switching: External via M function
Active cooling unit for control cabinet
Operating voltage and frequency: 3 x 380 V - 50/60 Hz
Supply line protection: 2 standard steps above the rated current
Permissible rated voltage fluctuations: +/- 10% at idle and full load
Max. permissible ambient temperature: +35°C
Max. installation altitude: 1000 m
Additional equipment
Infrared measuring probe: Heidenhain TS 649 DMG
3D quickSET toolkit
4-color signal light
Cabin roof: Crane loading possible by manually opening the middle roof segment
Operating mode 4: Process monitoring during production
Chip conveyor: Scraper belt chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
