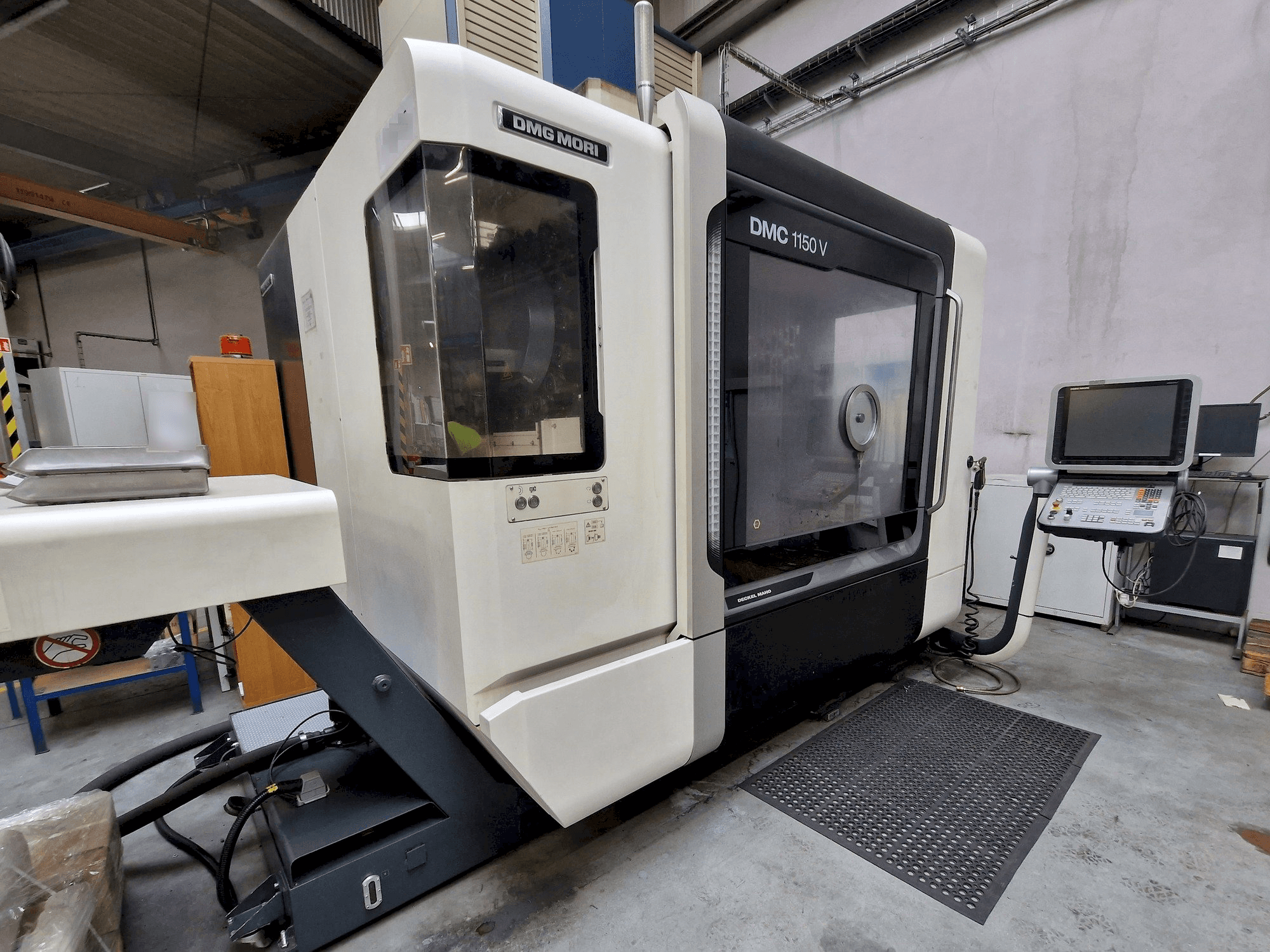

Left side view of DMG MORI DMC 1150 V machine
Left side view of DMG MORI DMC 1150 V machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DMG MORI - DMC 1150 VPL-MIL-DMG-2015-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI DMC 1150 V vertical machine center was built in the year 2015 in Germany. It is controlled with a Heidenhain iTNC 640 control unit and has 3 axis. The machine has a spindle speed of 20 - 18000 rpm, is in very good working condition, is ready for tests, and includes a measuring probe TS649.

Overview

  • brand: DMG MORI
  • year: 2015
  • MODEL: DMC 1150 V
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 1150 V

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 640

Dimensions

  • Table Length: 1400 mm
  • Table Load: 800 kg
  • Table Width: 750 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1150 mm
  • Y-axis Travel: 700 mm
  • Z-axis Travel: 550 mm

Technical Specification

  • Spindle Power: 40 kW
  • Spindle Speed: 18000 RPM

Additional Information

Additional equipment

  • Measuring probe TS649

Machine Benefits

Qualitative Machine Benefits

  • Machine in very good condition, ready for tests
  • Full documentation available

Technical Machine Benefits

  • T-slot spacing: 100 mm
  • Loading height (ground - top edge of table): 1000 mm
  • Feed drives: x,y,z axis: ac servomotors: maximum rapid traverse x,y: up to 42 m/min, maximum rapid traverse z: up to 42 m/min
  • Tool tightening force: 25kn
  • Tool storage: 30 positions
  • Maximum tool diameter without free spaces: 80 mm
  • Maximum tool diameter with free spaces: 130 mm
  • Maximum tool length from spindle nose: 300 mm
  • Max. Tool weight with automatic tool changing: 6 kg
  • Max. Tool weight in storage: 120 kg

Extra Information

Tools are not included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
