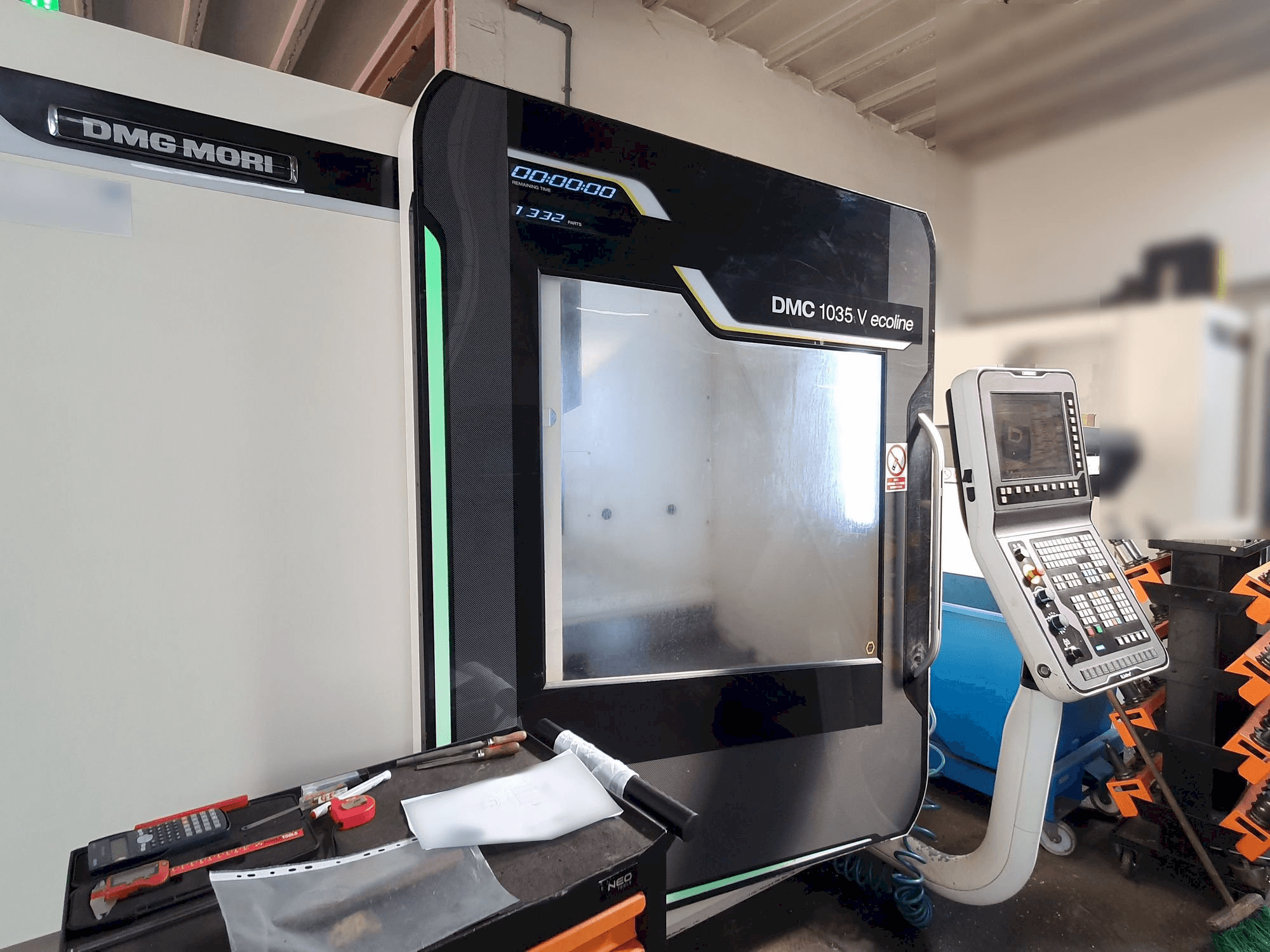

Front view of DMG MORI DMC 1035V Ecoline machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMC 1035V Ecoline

Photo Gallery

DMG MORI - DMC 1035V EcolinePL-MIL-DMG-2014-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMC 1035V Ecoline - Vertical Center

Show in original language

This DMG MORI DMC 1035V Ecoline vertical machine center was built in Poland in the year 2014. This 3 axis machine has been on for approximately 16184 hours, of which 6804 hours are spindle time. It is equipped with a SIEMENS 840D SLIMline control unit. This machine can perform with a spindle speed up to 8000 rpm. This machine it is in very good working condition, still at the production, ready for test. Full documentation available.

Overview

brand: DMG MORI
year: 2014
MODEL: DMC 1035V Ecoline
production hours: 16184
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI DMC 1035V Ecoline

General Data

Measurements width: 3932 mm
Measurements depth: 3091 mm
Measurements height: 2807 mm
Machine weight: 4500 kg

Control Unit

Model: 840D solutionline
Brand: SIEMENS

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 13 kW
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 1035 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 1200 mm
Outer width: 560 mm
Table load: 1000 kg

Tools

Number of stations: 20
Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Power consumption: 17 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max feed force: 5kn
- - Max feed rate: 24 m/min
- - Torque: 83 nm
- - Workpiece probe: blum tc52
- - External coolant supply
Qualitative Machine Benefits:
- - Machine in very good, working condition, still at the production.
- - Ready for test.
- - Full documentation available.
- - No tooling included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
