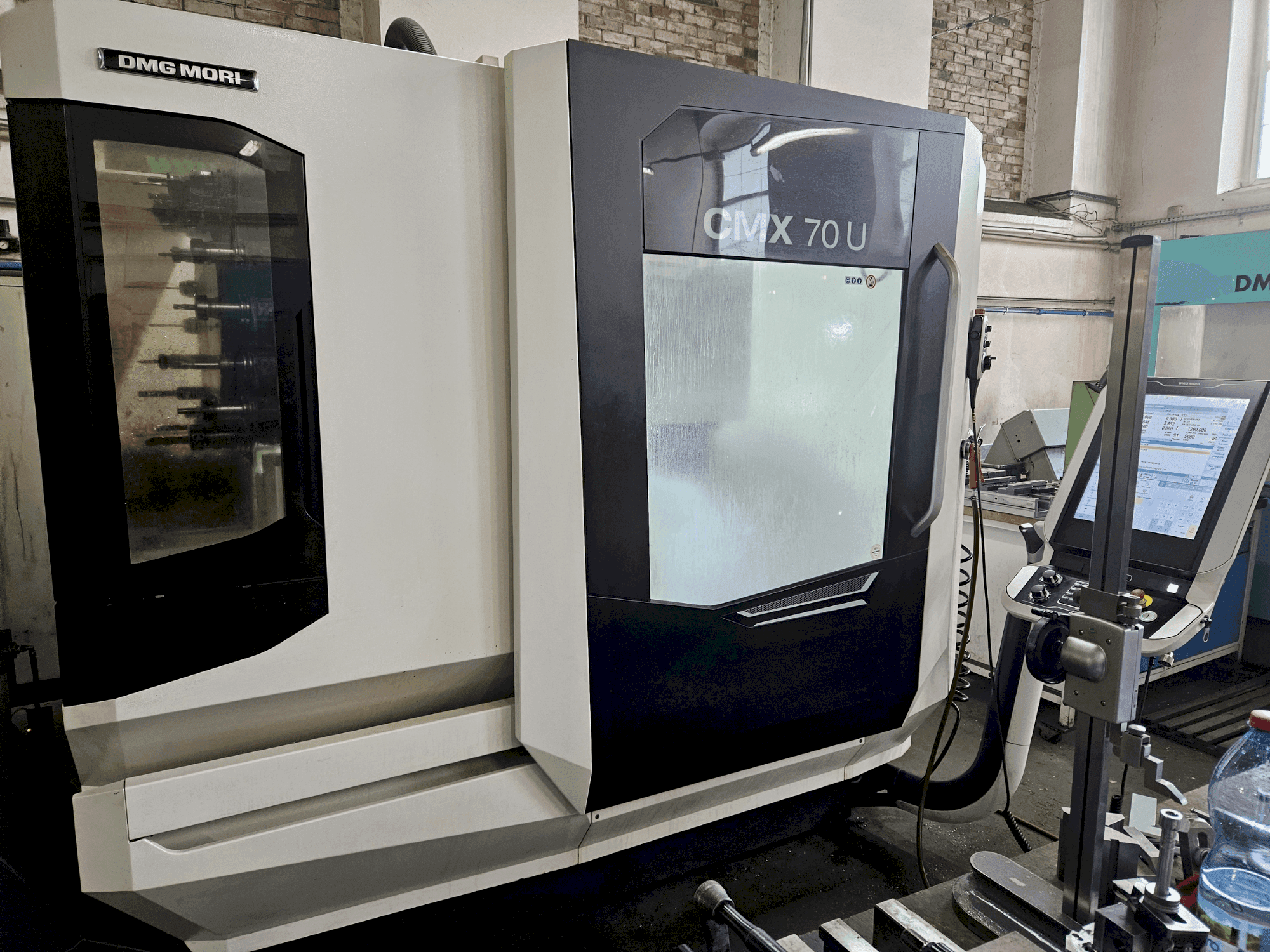

Front view of DMG MORI CMX 70U  machine

DMG MORI - CMX 70UPL-MIL-DMG-2018-00004

Rs. 10,524,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DMG MORI CMX 70U vertical machining center was manufactured in 2018. It features a 12,000 rpm spindle, a 30 m/min rapid traverse speed, and a 30-position chain tool magazine. The tilting rotary table enhances flexibility with B-axis and C-axis rotations. Ideal for processing copper and aluminum alloys. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 70U machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: DMG MORI
  • year: 2018
  • MODEL: CMX 70U
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - DMG MORI CMX 70U

Control Unit

  • Brand: SIEMENS
  • Model: Slimline Multi Touch 19”

Main drive

  • Spindle speed range: 20 - 12000 1/MIN
  • Spindle motor power: 13/9 kW (40/100% ED)
  • Tool taper: SK40 DIN 69871
  • Number of axis: 3+2

Movement

  • X-AXIS Movement: 750 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 520 mm

    Additional equipment

    • - Coolant-air switching with M function (external)
    • - Chip tray
    • - probes are included
    • - Tools/tool holders are not included
    • - Standard specs as on the left side
    • - Rotary Tilting Table: Table D 800x620 // B-axis rotation range: -10°/+95° // C-axis rotation range: 360°
    • - Rotary Tilting Table:Table D 800x620 B-axis rotation range: -10°/+95° C-axis rotation range: 360°
    • - Tool Magazine:30-position chain magazine with double gripper
    • - Coolant-Air Switching:Coolant/air switching via M function (external)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Rapid traverse speed on linear axes: 30 m/min
        • - The machine processes alloys of copper and aluminum.
        • - It is fully operational, connected, and with a possibility to perform tests.
        • - 30-position chain tool magazine with double gripper
        • - Working hours: power on: 12363h, spindle 5784h
        • - Direct measuring system x, y, z
        • - Spindle speed range:spindle speed: 20 to 12,000 rpm / main drive ac:power: 13/9 kw (40/100% dc) / tool holder:sk40 din69871 / tool clamping according to din 69872
        • - Internal coolant supply: 12 bar / chip conveyor with left-side tank capacity: 300 l / work area rinsing with m function; arm and magazine rinsing / manual work area rinsing - pistol / manual control panel (handwheel) / enclosed work area (roof) / 4-color signal lamp
        • - Direct measurement system for x, y, z axes (linear scales) with air purge for the measurement system.
      • Qualitative Machine Benefits:
        • - Very good working condition. Always work with soft metals only brass, copper and aluminum only

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
