DMG MORI - CMX 1100 VPL-MIL-DMG-2018-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DMG MORI CMX 1100 V

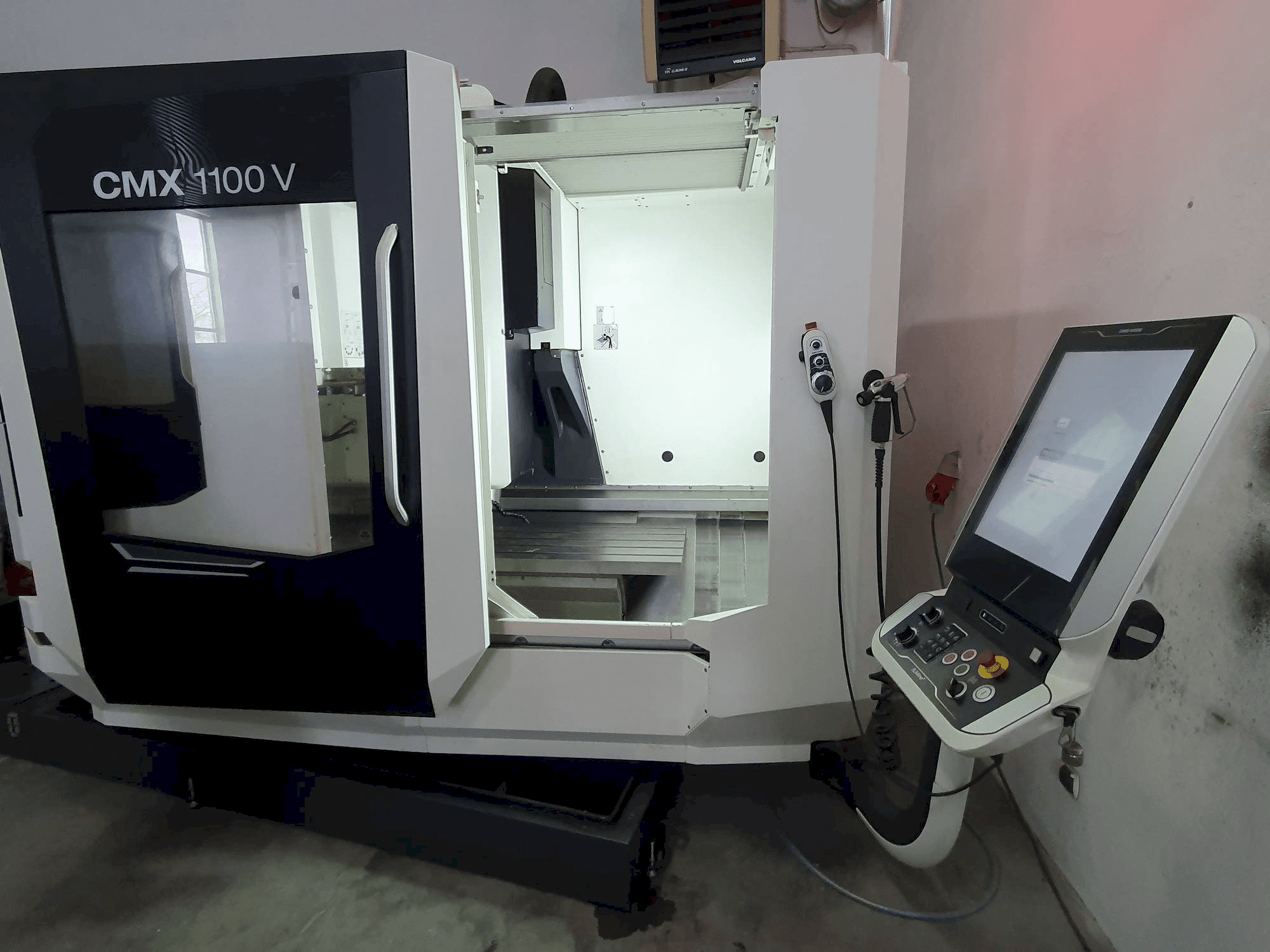

This DMG MORI CMX 1100 V Vertical Machining Center was built in the year 2018. It has been on for 2025 hours, of which 1021 are spindle hours. This 3 axis machine operates through a Siemens Sinumeric 840 + 19" DMG MORI SLIMline control unit. It can work with a spindle speed up to 12000 rpm. This machine includes cooling trought the spindel with high pressure pump.
Overview
- brand: DMG MORI
- year: 2018
- MODEL: CMX 1100 V
- production hours: 2025
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI CMX 1100 V
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumeric 840
Dimensions
- Machine Depth: 2757 mm
- Machine Height: 2935 mm
- Machine Weight: 5830 kg
- Table Length: 1400 mm
- Table Load: 1000 kg
- Table Width: 560 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1100 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 30
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Cooling trought the spindel with high pressure pump.
- Manual flushing gun
- Extended remote control
- PowerProbe 40 optical
- Scrap conveyer: No
- Tolling: No
Machine Benefits
Qualitative Machine Benefits
- Machine is in a perfect condition
- Only 2025 working hours
- Ready for tests
- No repairs or services yet
- Fully documented
Technical Machine Benefits
- Multi-touch control unit + 3d visualisation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
