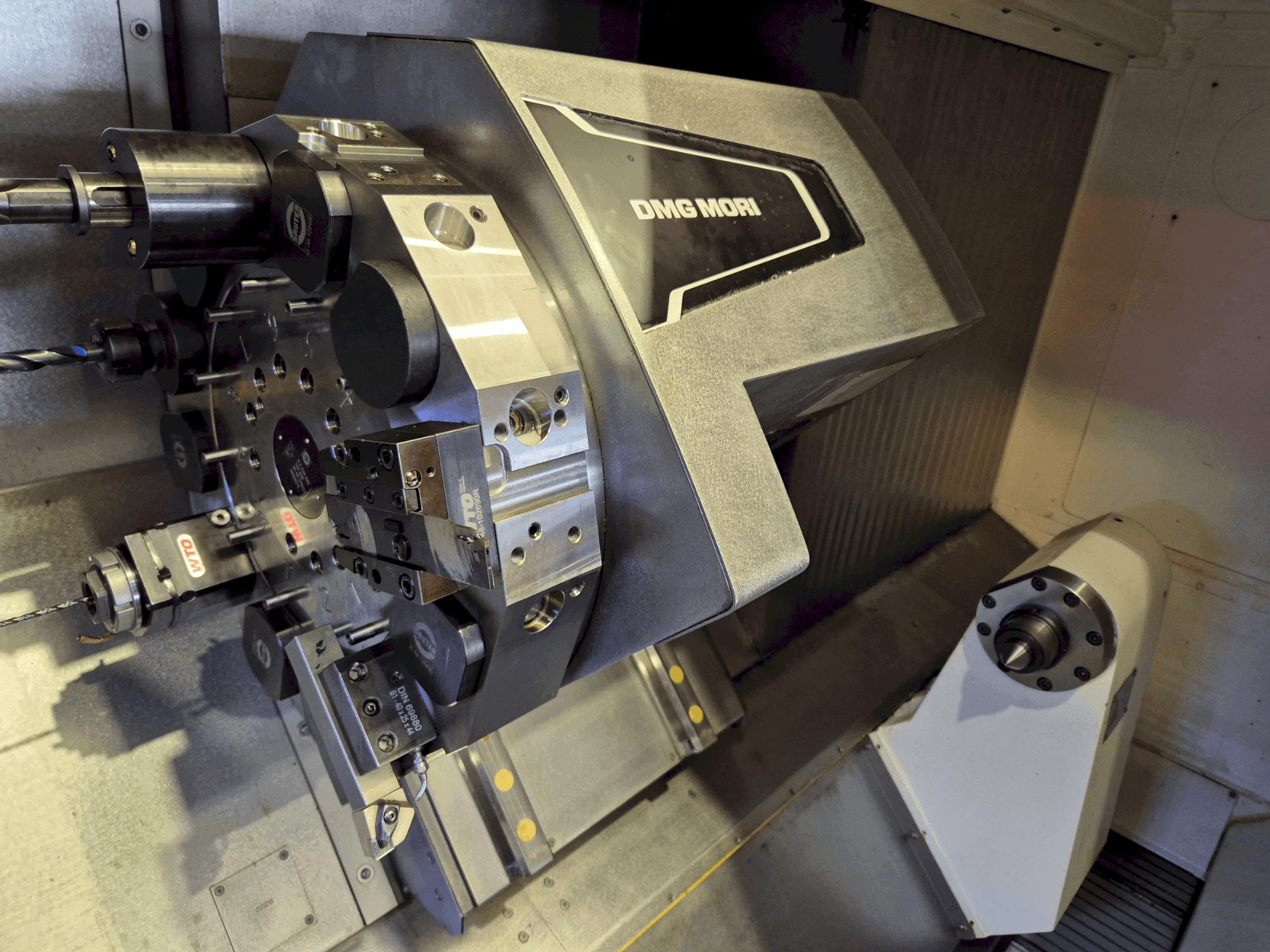

DMG MORI - CLX 550 V4FR-TUR-DMG-2020-00001

• Universal CNC lathe with driven tools, C axis and Y axis (Y travel ±60 mm)

• Control: DMG MORI SLIMline, 19" multi‑touch, Siemens

• Main spindle: A2‑8, AC motor 22/33 kW (100/40% ED), up to 3,250 rpm

• Turret: 12-station VDI40; 12 DIN5480 driven tool positions; 6 BT stations (as provided)

• Direct measuring system on X and Y axes

• Tailstock with hydraulic movement via foot pedal and M function

• Electronic handwheel

• Clamping/bar passage:

  • Hollow clamping device, max. bar diameter 80 mm

  • Hydraulic clamping device with bar passage max. diameter 102 mm (surcharge)

• Differential pressure monitoring for the main spindle

• Connectivity: DMG MORI IoTconnector (enables DMG MORI online services)

Additional equipment

• Preset/package items:

  • Manual tool measuring device

  • Hinged-belt chip conveyor (supplied instead of chip tray)

  • 4‑color signal lamp

• Workholding and tooling:

  • SMW Autoblok BH‑D 320 / A2‑8 hydraulic 3‑jaw chuck, bore 103 mm, clamping range 40–300 mm, with hard jaws and adapters

  • Set of 3 soft jaws for BH‑D 315

  • SMW BBD‑210 hydraulic 3‑jaw chuck, 66 mm bore

  • 5 sets of soft jaws for SMW BBD chuck

  • Reduction tubes for main spindle (D5–D72 mm)

• Utilities and accessories:

  • Coolant gun, 5 bar

  • 60 kVA transformer

  • Service camera (antenna, transformer, SD card)

• Connectivity/services:

  • DMG NETservice (remote diagnostics/support; installation on external PC)
