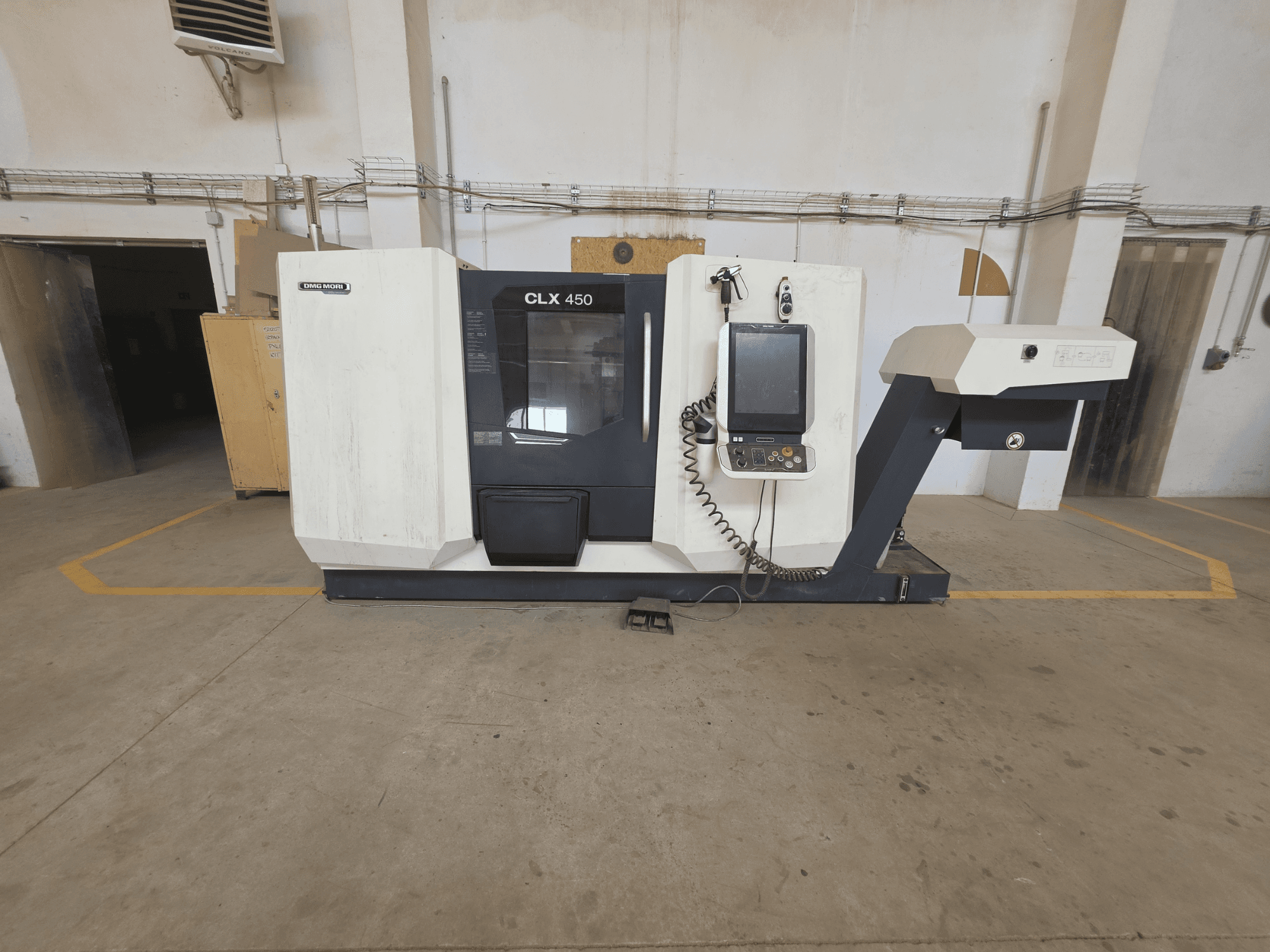

This 4-axis DMG MORI CLX 450 V4 was manufactured in 2022. It features a maximum turning diameter of 400 mm and a turning length of 800 mm. The machine is equipped with a Siemens Sinumerik 840D control and includes a turret with 12 stations, all with driven tools. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 450 V4 CNC turning center we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2022
- MODEL: CLX 450 V4
- production hours: 1030
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG MORI CLX 450 V4
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840 D
Dimensions
- Machine Height: 2100 mm
- Machine Length: 4400 mm
- Machine Weight: 5900 kg
- Machine Width: 1900 mm
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 800 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 4000 RPM
Additional Information
Working range:
Max. turning diameter: 400 mm
Max. turning length: 800 mm
Swing over cross slide: 320 mm
C-axis: full interpolation
Main spindle:
Spindle nose: A8
Spindle motor power: approx. 22/18 kW
Turret and tools:
Turret: 12 stations
All stations with driven tools
Performance:
Rapid traverse (X/Y/Z): approx. 24 / 10 / 30 m/min
Equipment: Tailstock
Power supply: 400 V / 50 Hz
Condition: Checked by DMG service before disconnection; very good condition with all functions working properly. Service report available for review.
Additional equipment
Turning tools installed on the machine and included in the offer.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
