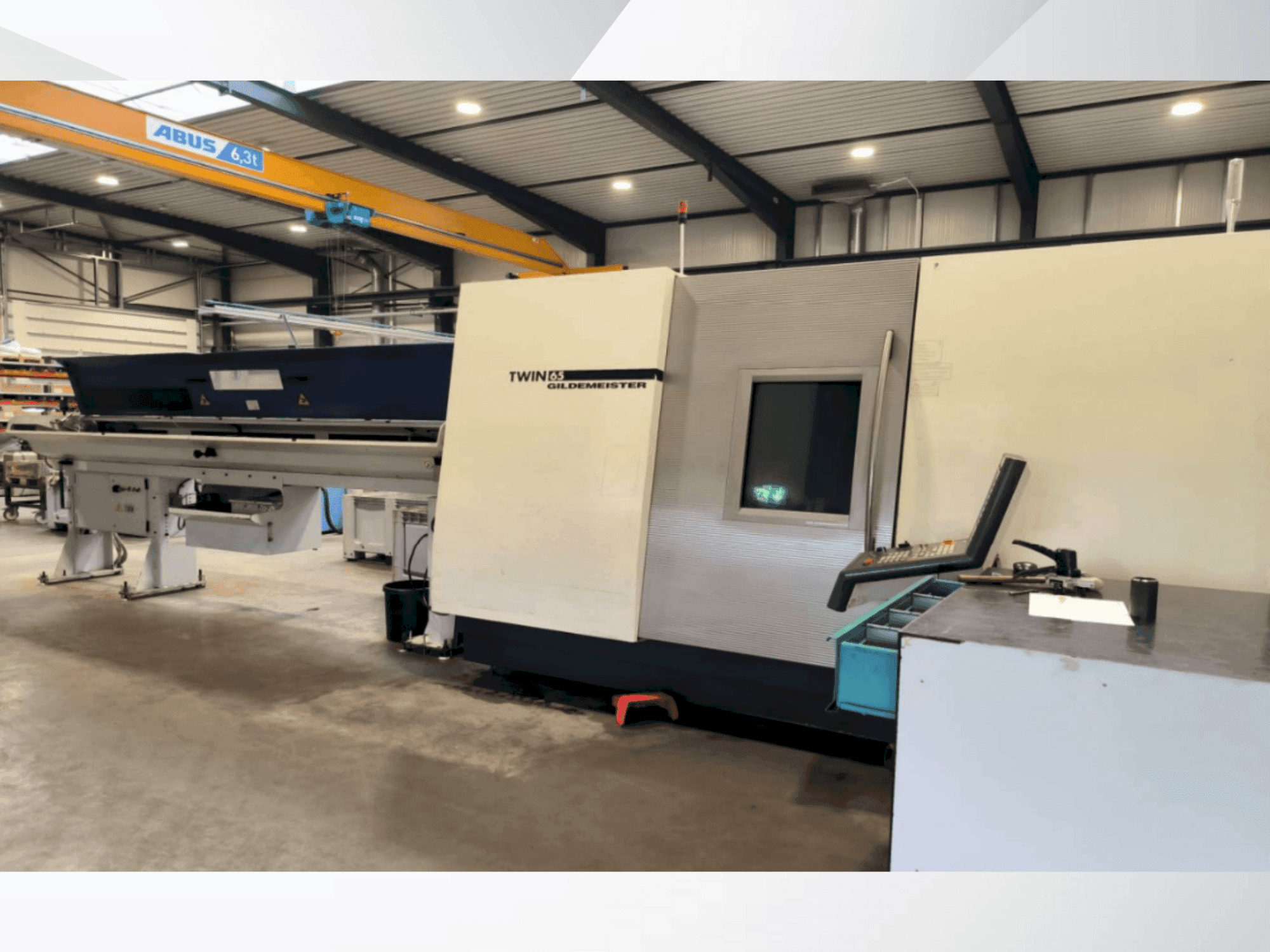

Front view of DMG Gildemeister Twin 65 machine
Front view of DMG Gildemeister Twin 65 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DMG - Gildemeister Twin 65DE-TUR-DMG-2010-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG Gildemeister Twin 65 horizontal turning machine was manufactured in 2010. It features a Siemens 840D Powerline control, dual spindles with 5000 rpm and bar capacities of 65mm, and two Sauter star turrets each with 12 tool positions. Includes a Bürener chip conveyor, a 980L coolant system, and an Iemca Master 865 MP 38LL bar loader. If you are looking to get high-quality turning capabilities consider the DMG Gildemeister Twin 65 machine we have for sale. Contact us for more information.

Overview

  • brand: DMG
  • year: 2010
  • MODEL: Gildemeister Twin 65
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine

Technical Information - DMG Gildemeister Twin 65

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Coolant System: 980L, 20/40 bar
    • - Bar Loader

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle left: speed: 5000 rpm / torque max: 370 nm / c-axis: 0. 001° / bar capacity: 65 mm / chuck: 65
        • - Right-hand threaded spindle: speed: 5000 rpm / torque max: 290 nm / c-axis: 0. 001° / bar capacity: 65 mm / chuck: 66
        • - Turret: tool carrier 1: turret type: star/ tool positions: 12/ vdi: 30/ speed: 4000 rpm/ torque: 28 nm/ x: 300 / y: 800 / z: 650
        • - Tool carrier 2: turret type: star/ tool positions: 12/ vdi: 30/ speed: 4000 rpm/ torque: 28 nm/ x: 80 mm/ z: 650

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
