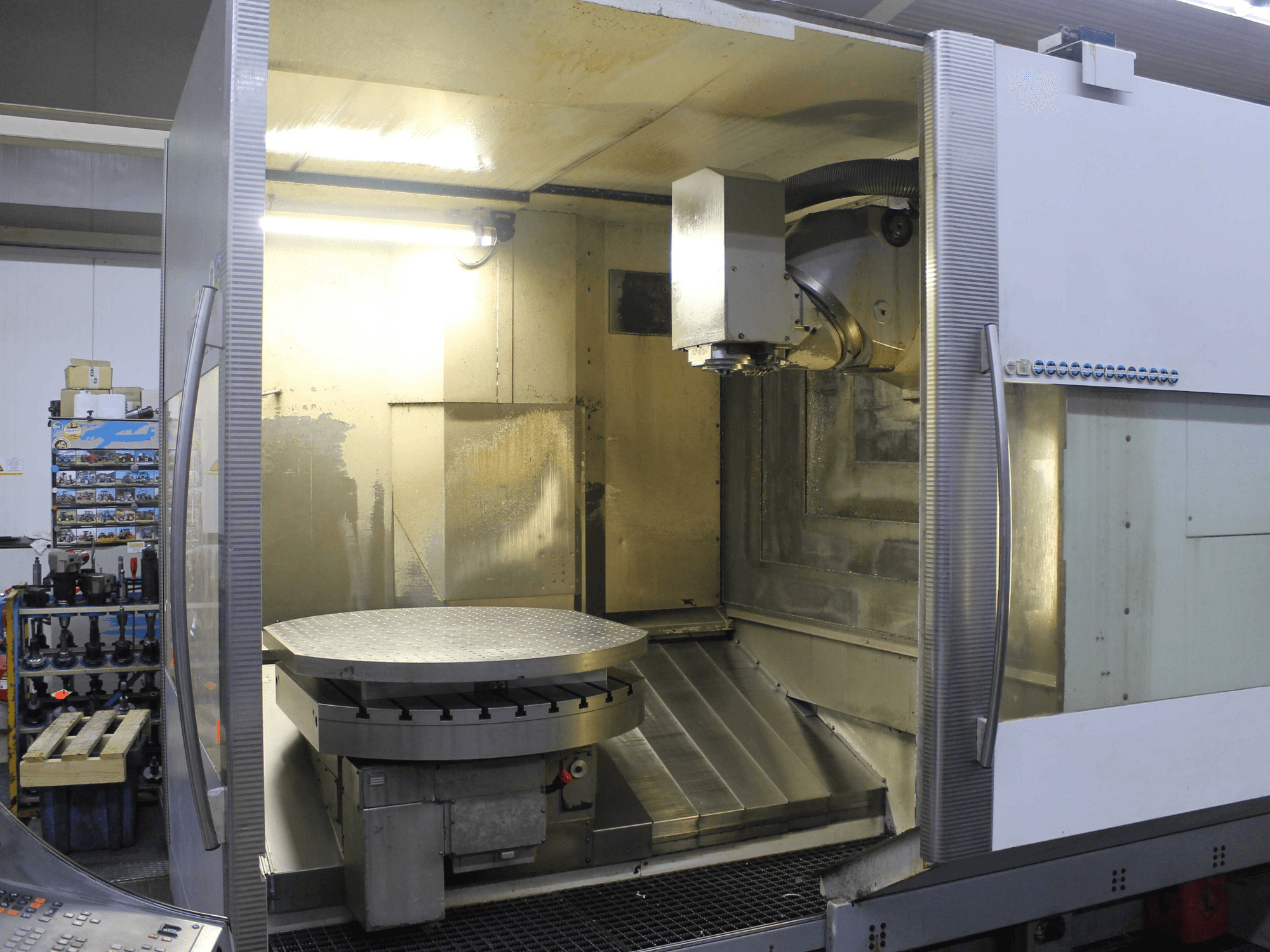

CNC milling machine with a circular rotary table and cutting head, shown from a front view, featuring metallic surfaces and lighting.
CNC milling machine with a circular rotary table and cutting head, shown from a front view, featuring metallic surfaces and lighting.

DMG - DMU 125 P hi-dynDE-MIL-DMG-2001-00004

Rs. 3,954,056
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DMG DMU 125 P hi-dyn was manufactured in 2001. It features a Heidenhain control system, a SK50 spindle taper, and 120 tool stations. With spindle hours totaling 22,180, consider the opportunity to buy this DMG DMU 125 P hi-dyn universal machining centre. Contact us for more information about this machine.

Overview

  • brand: DMG
  • year: 2001
  • MODEL: DMU 125 P hi-dyn
  • production hours: 22180
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DMG DMU 125 P hi-dyn

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC430

Dimensions

  • Machine Depth: 8000 mm
  • Machine Height: 3200 mm
  • Machine Length: 6000 mm
  • Machine Weight: 18000 kg
  • Table Length: 1000 mm
  • Table Load: 2000 kg
  • Table Width: 1250 mm

Movement

  • Number of Axes: 5
  • X-axis Travel: 1250 mm
  • Y-axis Travel: 880 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Number of Tools: 120
  • Spindle Speed: 8000 RPM
  • Taper Size: SK 50
  • Through-spindle Coolant: Yes

Additional Information

  • Spindle hours: 22,180

  • Tool magazine/stations: 120

  • Travel distances: 1250 x 880 x 800

  • Tool holder: SK50

  • Changer: 120 tool positions in chain magazine

  • Gripper type: Double gripper

  • Control: Heidenhain TNC 430

  • Working range: Longitudinal: 1250 mm Transverse: 880 mm Vertical: 800 mm

  • Dimensions: approx. 6 x 8 x approx. 3.20 m height

  • Weight: approx. 18,000 kg

B axis is indexed

Additional data:

  • Full protection cabin

  • IKZ through spindle center

  • Blow air through spindle center retrofitted

  • Chip conveyor

  • Coolant tank 600 liters

  • NC rotary table D1250 x 1000 mm

  • Max. load at table center 2,000 kg

  • Clamping grid 9 slots 18H7 a 100 mm

  • Kit motor with SK50 gearbox – spindle speed 8,000 rpm

  • Renishaw MP10 SK50 infrared measuring probe

  • Electronic handwheel

  • 4 operating modes possible

  • Flushing gun with pump

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
