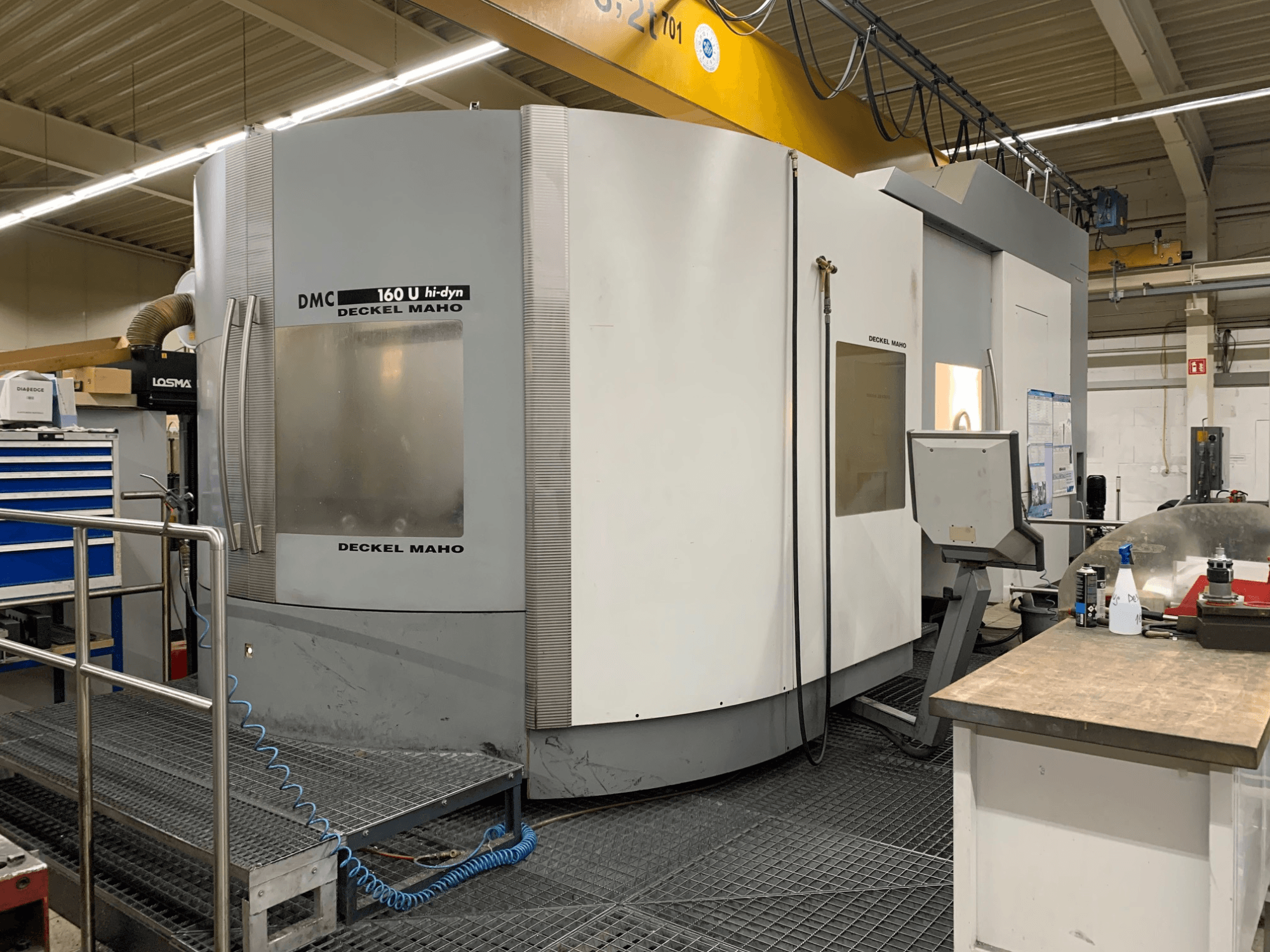

DECKEL MAHO DMC 160 U Hi-Dyn

Photo Gallery

DECKEL MAHO - DMC 160 U Hi-DynDE-MIL-DEC-2002-00010

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DMC 160 U Hi-Dyn | Universal Center

Show in original language

This 5-axis DECKEL MAHO DMC 160 U Hi-Dyn was manufactured in 2002. It features an impressive X-axis travel of 1600 mm, Y-axis travel of 1250 mm, and Z-axis travel of 1000 mm. The machine includes a tool changer capacity of 60 slots and a maximum load of 3000 kg on the pallet table. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 160 U Hi-Dyn universal machining centre we have for sale. Contact us for further details.

Overview

brand: DECKEL MAHO
year: 2002
MODEL: DMC 160 U Hi-Dyn
production hours: 20802
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 160 U Hi-Dyn

Control Unit

Control Brand: HEIDENHAIN

Dimensions

Machine Height: 4500 mm
Machine Length: 10500 mm
Machine Weight: 41500 kg
Machine Width: 10500 mm
Table Length: 1250 mm
Table Load: 3000 kg
Table Width: 1000 mm

Movement

Number of Axes: 5
X-axis Travel: 1600 mm
Y-axis Travel: 1250 mm
Z-axis Travel: 1000 mm

Technical Specification

Spindle Speed: 10000 RPM
Taper Size: SK 50
Through-spindle Coolant: Yes

Additional Information

- Tool Changer Capacity: 60 slots in rack magazine

- Gripper Type: Double gripper

- Operating Hours: 78,814 hours (as of 11/2024)

- Program Run Hours: 20,802 hours (as of 11/2024)

- Spindle Hours: 21,295 hours

- Enclosure: Full protection cabin

- Internal Coolant Supply (IKZ): 40 bar through spindle center (theoretical pump capacity)

- Air Blast: Through spindle center, retrofitted (Original DMG)

- Chip Conveyor: Scraper belt conveyor

- Coolant Tank Capacity: 900 liters

- Pallet Changer: Duo-Block pallet changer with 2 pallets

- Pallet Table Surface: 1250 x 1000 mm

- Clamping Grid: 100 x 100 mm, M20 thread

- Milling Head: Universal milling head with controlled B-axis for 5-axis positioning and simultaneous machining

- Universal Touch Probe: Heidenhain TS642

- Calibration Kit: 3D Quick-Set in case

- Operating Mode: Mode 4 capable

- Cleaning Equipment: Wash-down gun with pump

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
