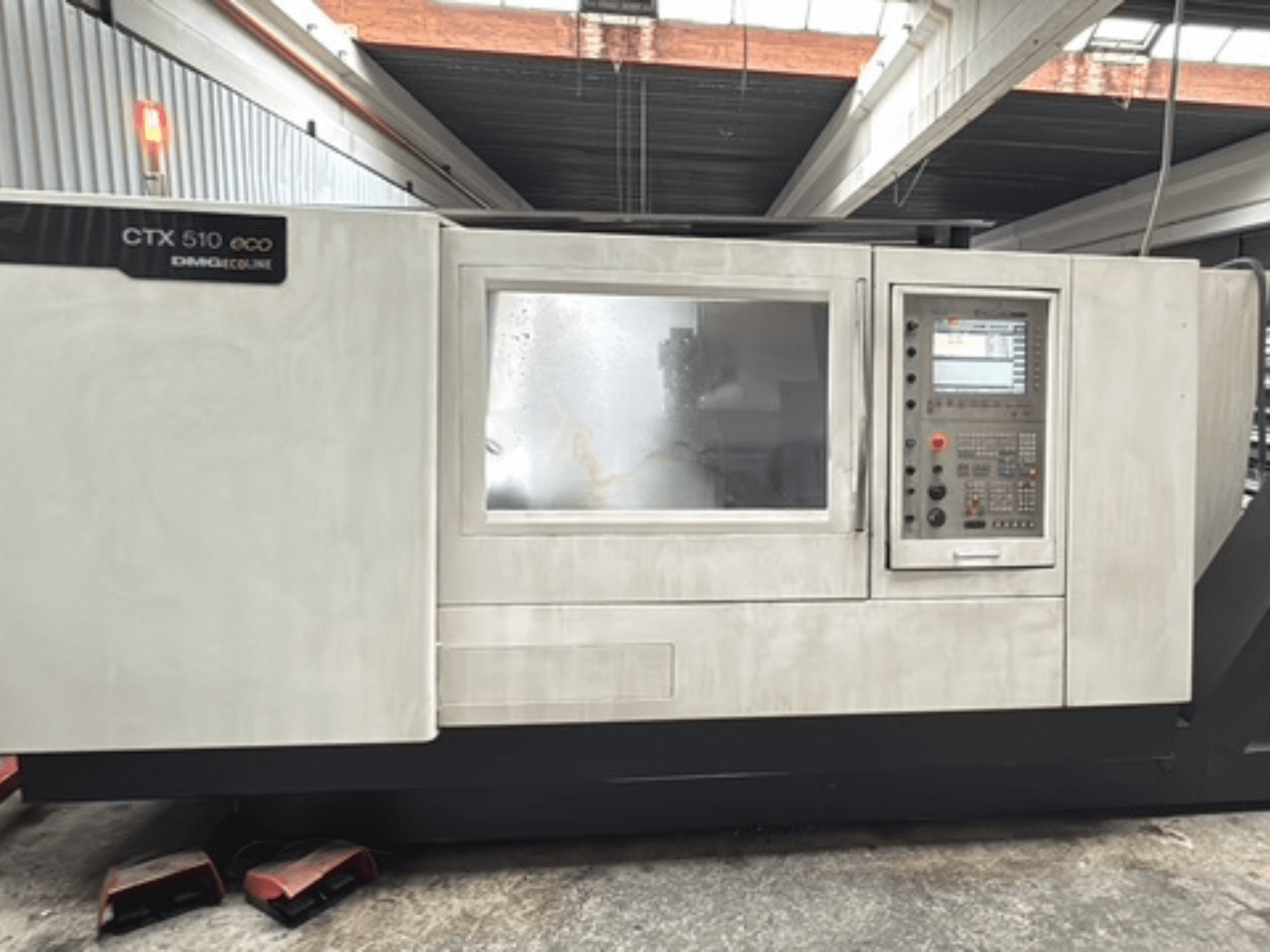

Horizontal turning machine manufactured in 2009. This DMG CTX510 ecoline features a maximum turning diameter of 465 mm and a swing diameter over the bed of 680 mm. It includes a 12-position tool turret and a spindle speed of up to 3,250 rpm. If you are looking to get high-quality turning capabilities, consider the DMG CTX510 ecoline machine we have for sale. Contact us for further details.
Overview
- brand: DMG
- year: 2009
- MODEL: CTX510 ecoline
- production hours: 28580
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG CTX510 ecoline
Control Unit
- Control Brand: SIEMENS
- Control Model: ShopTurn
Movement
- Number of Axes: 2
- X-axis Travel: 300 mm
- Z-axis Travel: 1050 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Speed: 3250 RPM
- Tool Stations: 12
Additional Information
Maximum Turning Diameter: 465 mm
Swing Diameter over Bed: 680 mm
Bar Capacity: 76 mm
Spindle Speed: up to 3,250 rpm
Tool Turret: 12 Positions
Driven Tools
Kitagawa Chuck Ø 380 mm
Hydraulic Clamping System
Optional, not Included:
Tailstock
Chip Conveyor
SMW Autoblok Chuck Ø 250 mm
Various Tool Holders
Boring Bars
Turning Post
Additional Tools and Accessories
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
